Tube and Pipe Tools
EF-2LM
Wipcool EF-2LM Flaring Tool with Drill Driver Option
2-in-1 flaring tool for 45° flares on imperial 1/4"–3/4" and metric 6–19 mm copper tube, by hand or with a drill driver.
- Imperial and metric tube
- By hand or with a drill driver
- 45° flare
- Supplied in a case
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
Key parameters
1/4"–3/4"
Imperial tube
6–19mm
Metric tube
ręczny / wkrętarka
Drive
45°
Flare angle
The EF-2LM flaring tool forms 45° flares on imperial 1/4"–3/4" and metric 6–19 mm copper tube. You can form the flare with the handle or with a drill driver connected via the hex adapter supplied in the kit. The flaring tool is designed for systems using R410A, R32, R407C and R404A refrigerants.
Imperial and metric tube
The flaring tool forms flares on imperial 1/4", 5/16", 3/8", 1/2", 5/8", 3/4" and metric 6, 8, 10, 12, 16, 19 mm tube, so one tool covers installations in both sizing systems.
By hand or with a drill driver
For a series of joints, the drill driver forms the flares and takes the strain off your hand, while without a power tool the handle is all you need.
Quick tube height setting
The lock lets you quickly set the tube height in the flaring bar before forming the flare.

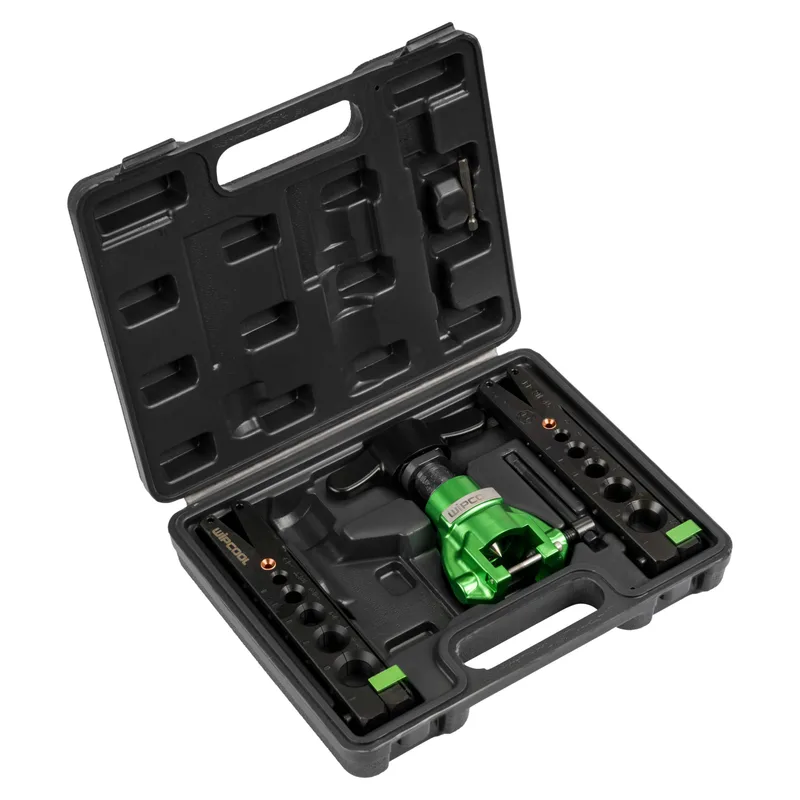

In the box
- 2-in-1 Flaring Toolimperial 1/4"–3/4" and metric 6–19 mm tube
- Hex Adapterfor connecting a drill driver

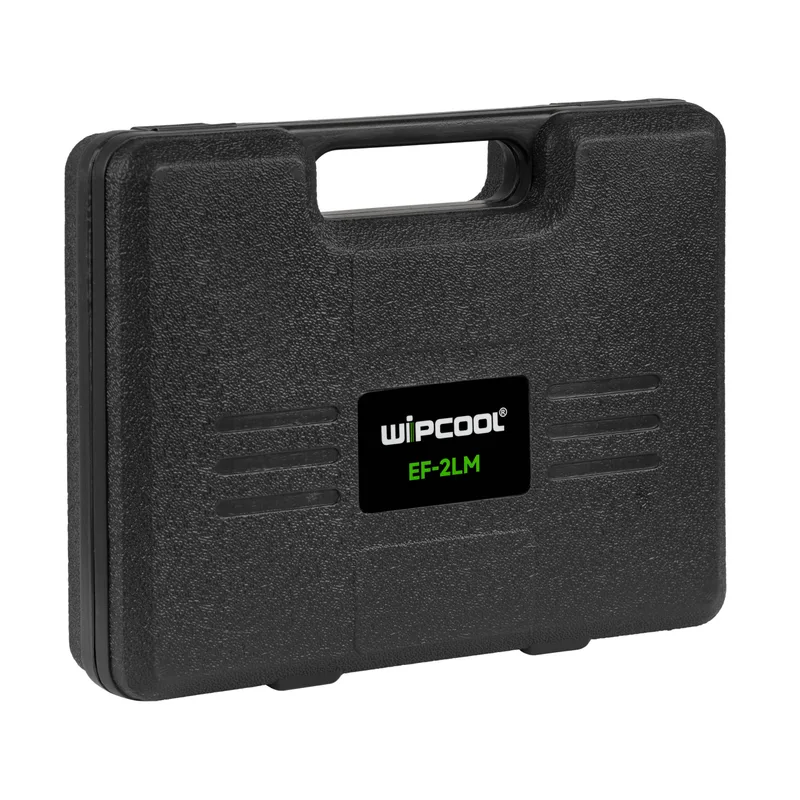

- Case
Technical specifications
| Tube size | 1/4" (6 mm), 5/16" (8 mm), 3/8" (10 mm), 1/2" (12 mm), 5/8" (16 mm), 3/4" (19 mm) |
| Tube | Inch, Metric |
| Drive | Manual, Drill driver |
| Packaging | Case |
| Included | hex adapter for drill driver |
| Carton quantity | 5 pcs |
Features and equipment
Manual drive with handle
Drill driver drive with 6 mm hex socket
Compatible with drill drivers
Stop plate
Lock for quick tube height setting
Aluminium body, 50% lighter than steel designs
CAUTION
This equipment must only be operated by qualified personnel. Read the user manual before first use.
Documents in: EN
