Tube and Pipe Tools
EF-2M

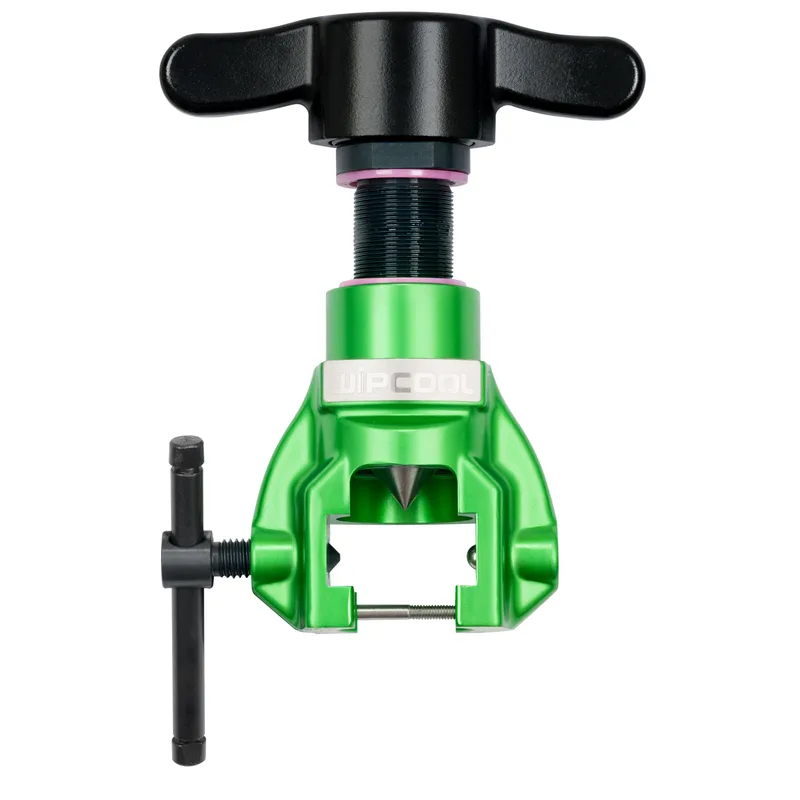

Wipcool EF-2M Flaring Tool
Manual flaring tool for forming 45° flares on imperial copper tube from 1/4" to 3/4" and metric copper tube from 6 to 19 mm, supplied in a carry case.
- Imperial and metric tube
- 45° flare
- Lightweight aluminium body
- Tube height lock
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
Key parameters
1/4"–3/4"
Imperial tube
6–19mm
Metric tube
ręczny
Operation
45°
Flare angle
The EF-2M is a manual flaring tool for forming 45° flares on imperial copper tube from 1/4" to 3/4" and metric copper tube from 6 to 19 mm. It is designed for R410A systems and is equally suitable for other systems. It is supplied in a carry case.
Imperial and metric tube
The flaring tool forms flares on 1/4", 5/16", 3/8", 1/2", 5/8" and 3/4" imperial tube and on 6, 8, 10, 12, 16 and 19 mm metric tube, so one tool covers both size ranges.
Quick tube height setting
The lock lets you quickly set the tube height in the flaring bar before forming the flare.
Technical specifications
| Tube size | 1/4" (6 mm), 5/16" (8 mm), 3/8" (10 mm), 1/2" (12 mm), 5/8" (16 mm), 3/4" (19 mm) |
| Tube | Inch, Metric |
| Drive | Manual |

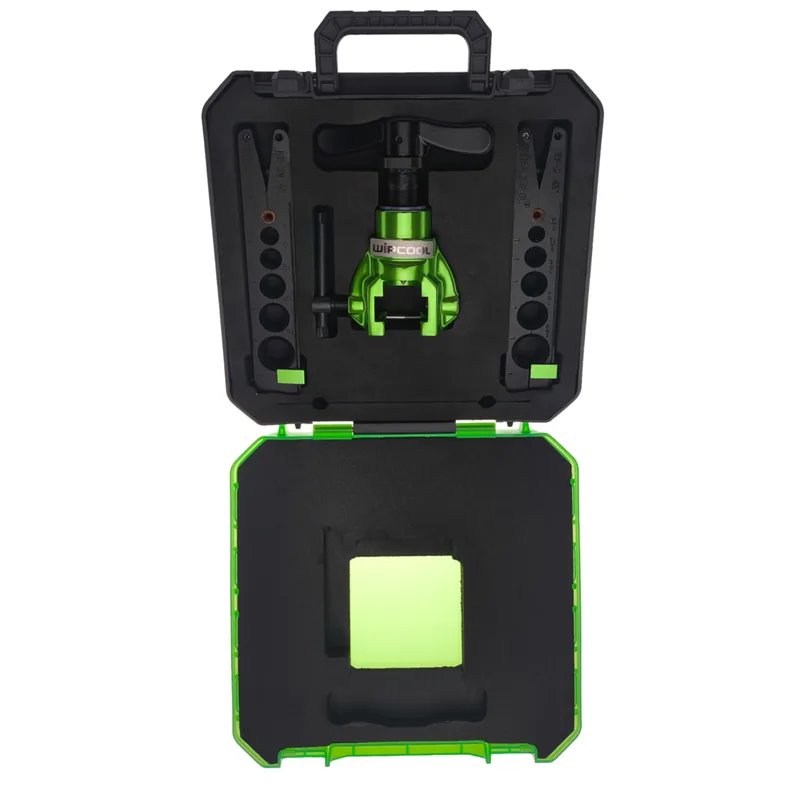

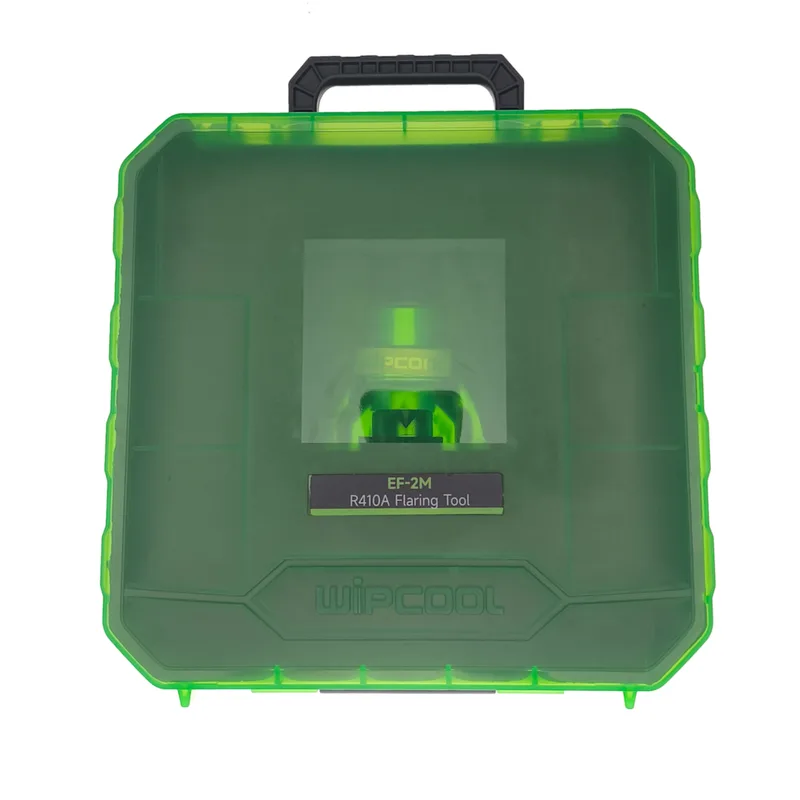

| Packaging | Carry case |
| Bulk packaging | 5 pcs |
Features and equipment
Manual handle operation

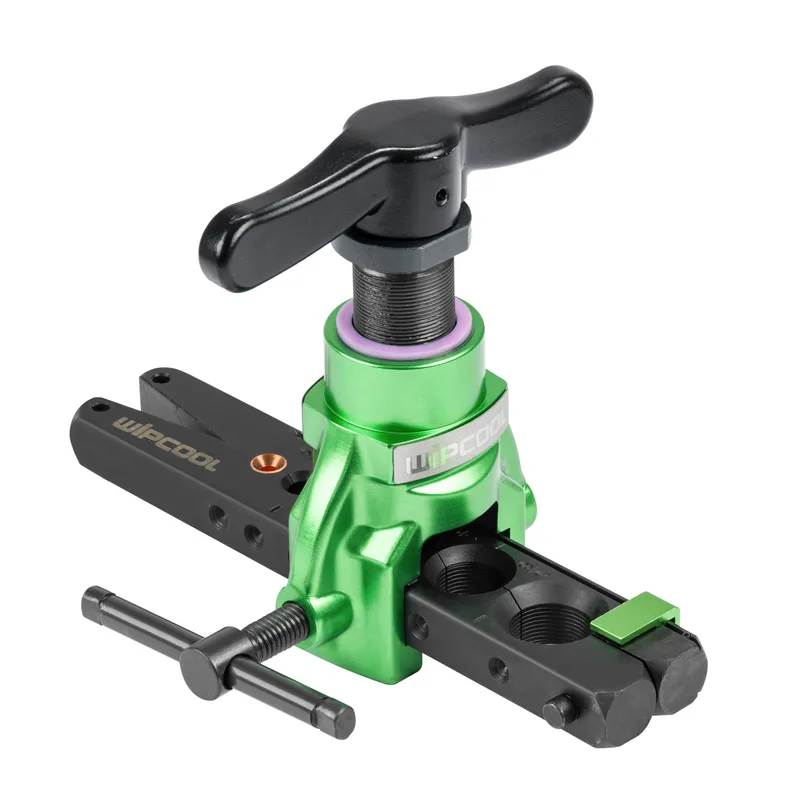

Flaring bar
Stop plate
Lock for quick tube height setting
Aluminium body, 50% lighter than steel designs
CAUTION
This equipment must only be operated by qualified personnel. Read the user manual before first use.
Documents in: EN
