Tube and Pipe Tools
HE-7
Wipcool HE-7 Swaging Tool
Lever swaging tool for expanding soft copper tube ends, with 7 heads from 3/8" to 1-1/8". A swaged tube end lets you join tubes without an additional fitting.
- Heads 3/8"–1-1/8"
- HC-32 and HD-1 included
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
- Manual PL
Key parameters
3/8"–1-1/8"
Tube diameters (heads)
7
Number of heads
HC-32, HD-1
Included
The HE-7 is a lever swaging tool for expanding soft copper tube ends. The case contains 7 heads from 3/8" to 1-1/8" that fit one handle, together with an HC-32 tube cutter and an HD-1 deburring tool for preparing the tube end. A head for 1/4" tube is available separately.
Note: Hard copper tube ends must be heated before swaging.
7 heads from 3/8" to 1-1/8"
All heads fit the same handle, so one swaging tool expands tube across the full range from 3/8" to 1-1/8".

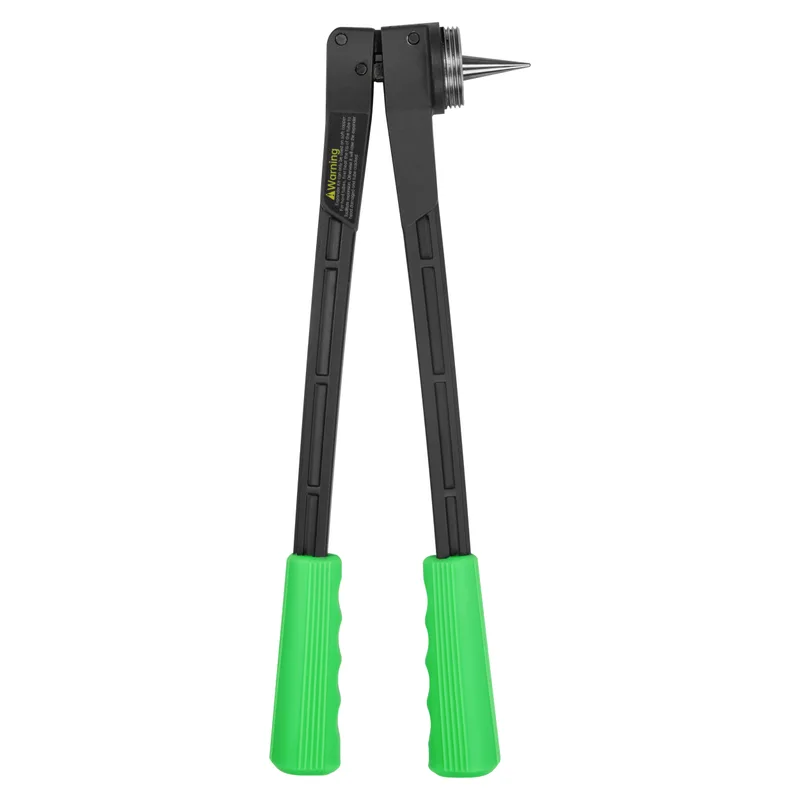

Long lever, rubber grips
The long lever and soft rubber-wrapped grips make the swaging tool easy to use.

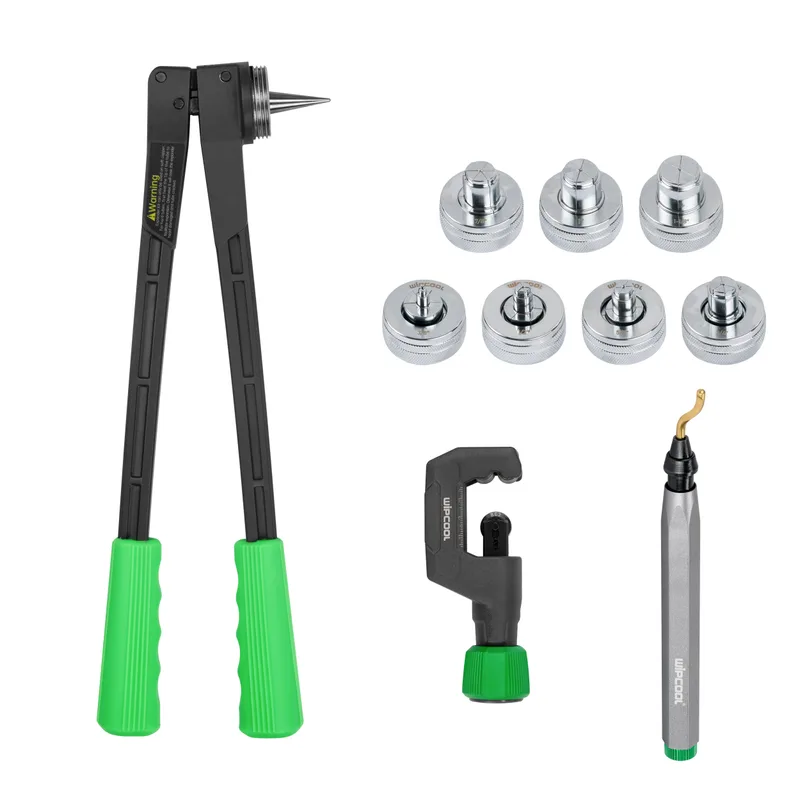

In the box
- Swaging tool handle
- Swaging heads, 7 pcs3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8"
- HC-32 tube cutter
- HD-1 deburring tool
- User manual

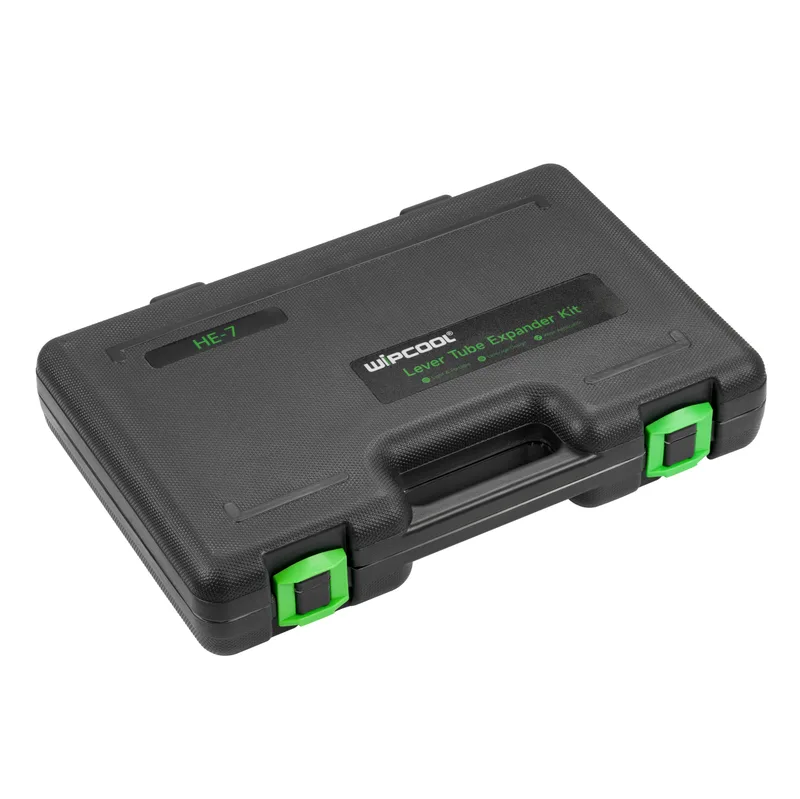

- Case
Technical specifications
| Tube sizes | 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1-1/8" |
| Head available separately | 1/4" |
| Accessories included | HC-32 tube cutter, HD-1 deburring tool |
| Carton quantity | 5 pcs |
Features and equipment
Expands soft copper tube ends
7 interchangeable heads 3/8"–1-1/8" fitting one handle
Long lever, handles open up to 90°
Grips wrapped in soft rubber
Aluminium alloy body
Case for the complete set
CAUTION
This equipment must only be operated by qualified personnel. Read the user manual before first use.
Documents in: EN
