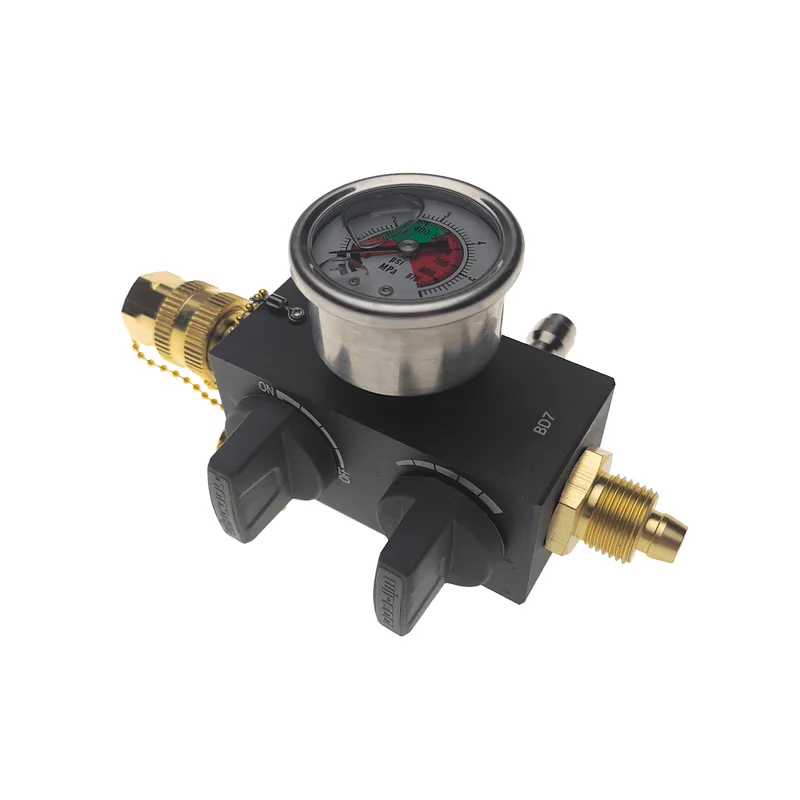

Wipcool TV-15 Hydraulic Pressure Test Valve

Valve for hydraulic leak testing of pipework, using pressure from a pressure washer with a 1/4" connection. The maximum test pressure is 15 bar.

  • Test pressure up to 15 bar
  • For pressure washers with a 1/4" connection
  • Pressure gauge and ON/OFF valve
  • Quick-release coupling
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
15bar
Max. test pressure
5l/min
Max. flow rate
1/4"
Pressure washer connection
Net list price
Request a quote
Request a quote
Where to buy

The TV-15 valve is used for hydraulic leak testing of pipework. The pressure source is a pressure washer with a 1/4" connection - the Wipcool C28T, C28B, C40T or any other pressure washer with this connection. The maximum test pressure is 15 bar and the maximum flow rate is 5 l/min. Water testing is used for heating, water and sprinkler systems, among others.

Note: Do not set the working pressure of the pressure washer higher than 15 bar.

Pressure from your pressure washer, not a pump
If you have a pressure washer with a 1/4" connection, all you need for leak testing is the valve - no separate manual or electric test pump.
Pressure adjustment and reading
The regulating valve lets you set the test pressure, the pressure gauge shows its value and the ON/OFF valve closes the circuit for the duration of the test.
Further circuits with one pressure washer
Once the quick-release coupling is disconnected, the valve stays on the circuit under test, while the same pressure washer with a second test valve pressurises the next circuit.

In the box

  • TV-15 Pressure Test Valve
  • Blanking cap
  • User manual
