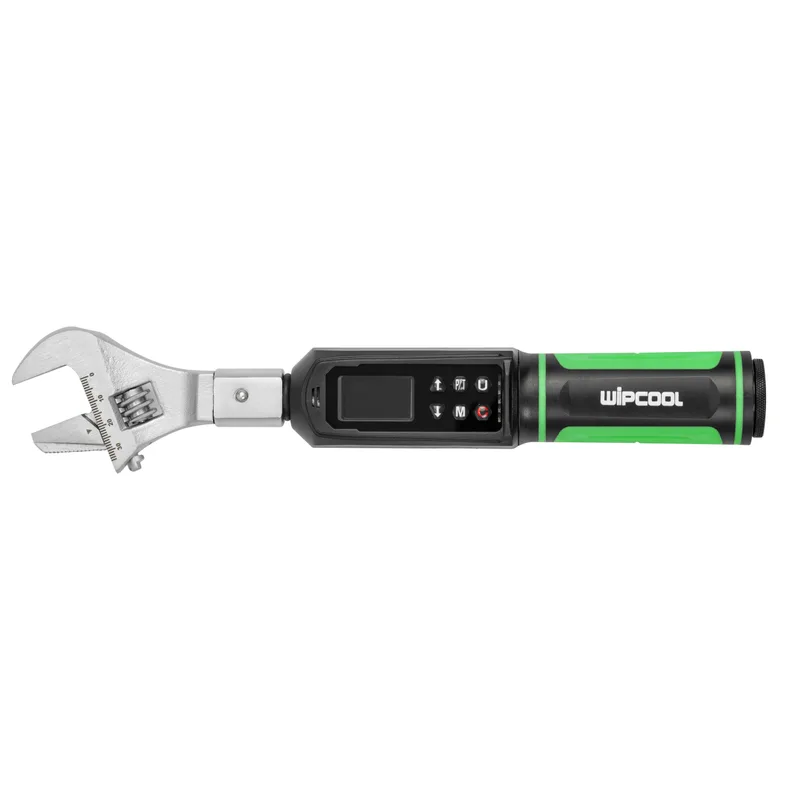

Wipcool HTW-80 Torque Wrench

Digital torque wrench for tightening connections to a specified torque in HVAC and refrigeration systems. It has a range of 1.2–80 N·m with ±2 % accuracy, and adjustable jaws for nuts from 5–30 mm.

  • Torque 1.2–80 N·m
  • Adjustable 5–30 mm jaws
  • Peak and Tracking modes
  • Memory for 500 results
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
1,2–80N·m
Torque range
5–30mm
Jaw range
±2%
Accuracy
Net list price
147,72 €
Request a quote
Where to buy

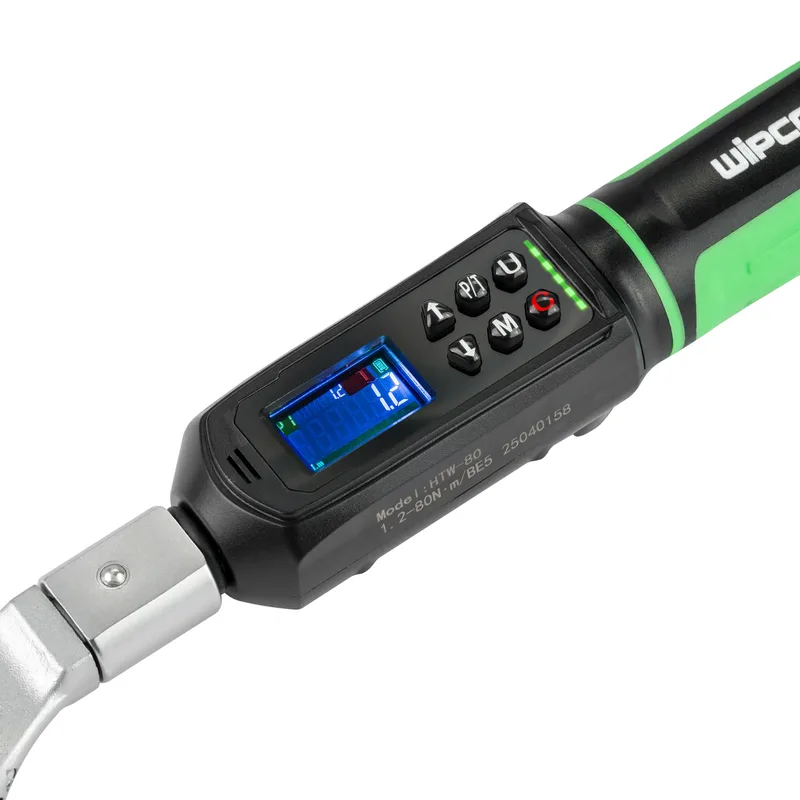

The HTW-80 wrench is used to tighten connections to a specified torque, particularly in HVAC and refrigeration systems. The adjustable jaws fit nuts and fittings from 5–30 mm, while the included round 3/8" ratchet head is used with sockets. The LED display shows the current torque.

The wrench operates in both directions and has two measurement modes: Peak and Tracking. It is powered by AAA batteries and switches off automatically after 120 s of inactivity when not under load.

Note: Switch the wrench on and off without a load.

Adjustable 5–30 mm jaws
The jaws fit nuts and fittings of different sizes, so there is no need to change tools between connections.
Torque in the unit specified in the documentation
The U button switches between N·m, lb·ft, lb·in, kg·cm and kg·m, so there is no need to convert the torque specified in the equipment documentation.
Warning before the torque is exceeded
From 80 % of the maximum value, the wrench gives an audible warning; at 90 % a yellow LED lights up, and at 100 % a red LED lights up, helping prevent thread damage from excessive force.
Memory for settings and results
The wrench stores the 10 most frequently used torque values and up to 500 recorded results, which can be reviewed and deleted.

In the box

  • HTW-80 torque wrench
    Main unit
  • 3/8" ratchet head
    Round

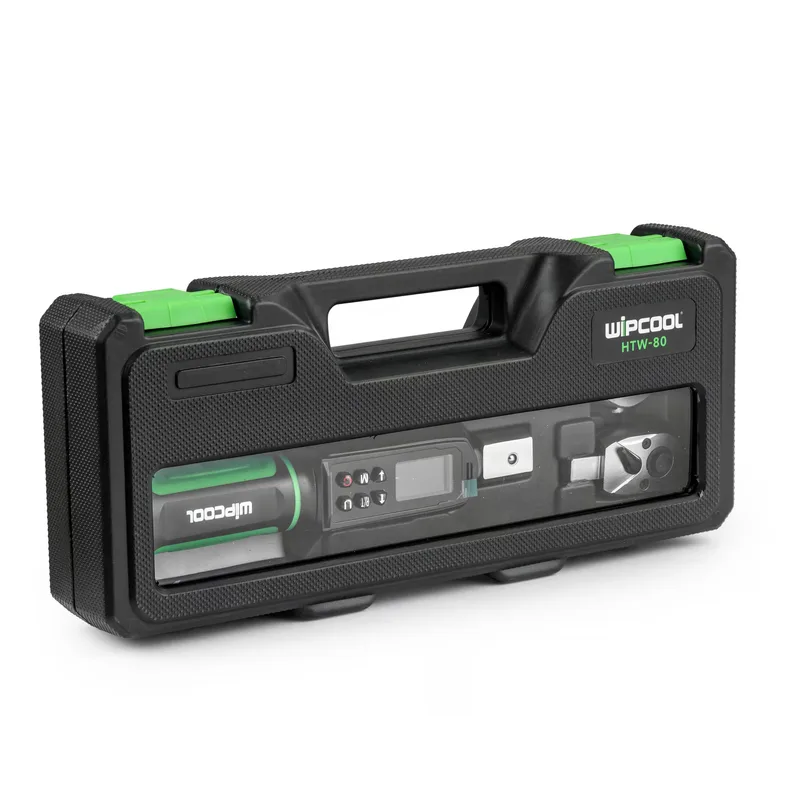

  • Case
