Home/Condensate Management/Condensate Traps/Wipcool PT-25 Waterless Ball Condensate Trap
Condensate Traps
PT-25

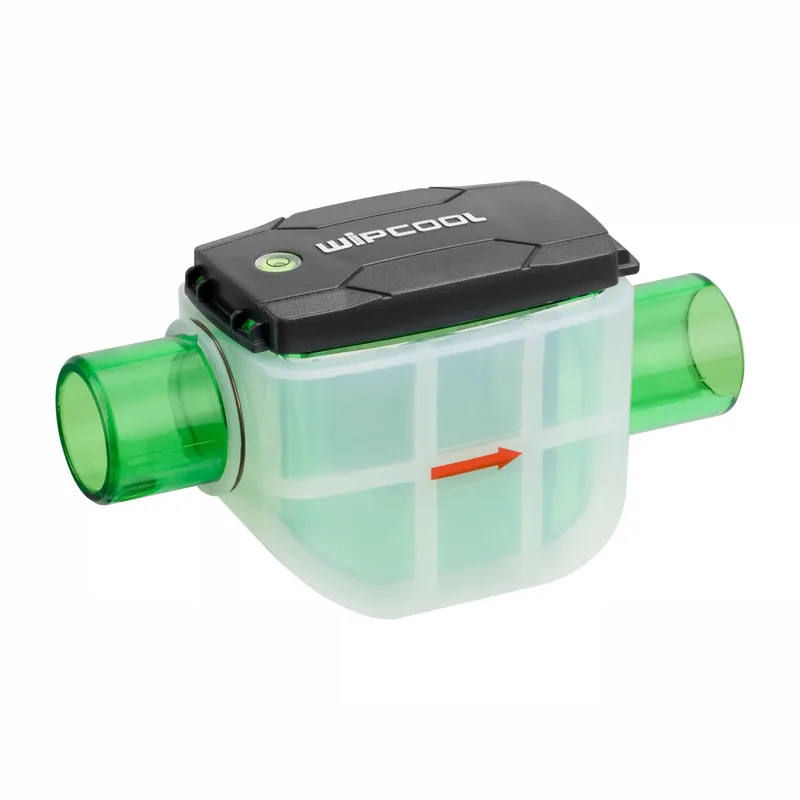

Wipcool PT-25 Waterless Ball Condensate Trap

Horizontal waterless condensate trap for air conditioning condensate drains (Ø32/Ø25 mm connections), limiting the entry of air, odours and insects into the pipe. A floating ball seals the trap, so there is no need to top it up with water.

  • Floating ball valve
  • No water top-up required
  • Ø32/Ø25 mm connections
  • Horizontal installation
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
Ø32 / Ø25mm
External / internal connection
horizontal
Installation
1200Pa
Negative pressure resistance
floating ball
Seal
Net list price
15,81 €
Request a quote
Where to buy

The PT-25 is a horizontal Wipcool waterless condensate trap for condensate drain pipes in air conditioning and refrigeration systems. It limits the entry of outside air, unpleasant odours and insects into the drain pipe.

A floating ball valve provides the seal, and a locking mechanism holds the cover and its seal in place. The connections have an external diameter of Ø32 mm and an internal diameter of Ø25 mm.

Note: Do not use alcohol, petrol or solvents to clean the condensate trap.

Works without topping up with water
A floating ball seals the drain without the need to top it up with water, so the condensate trap also works during the dry season, when a conventional water trap may fail to function.
Opens for cleaning
The condensate trap can be opened and the ball and inner chamber removed for easier cleaning.
