PT-25V

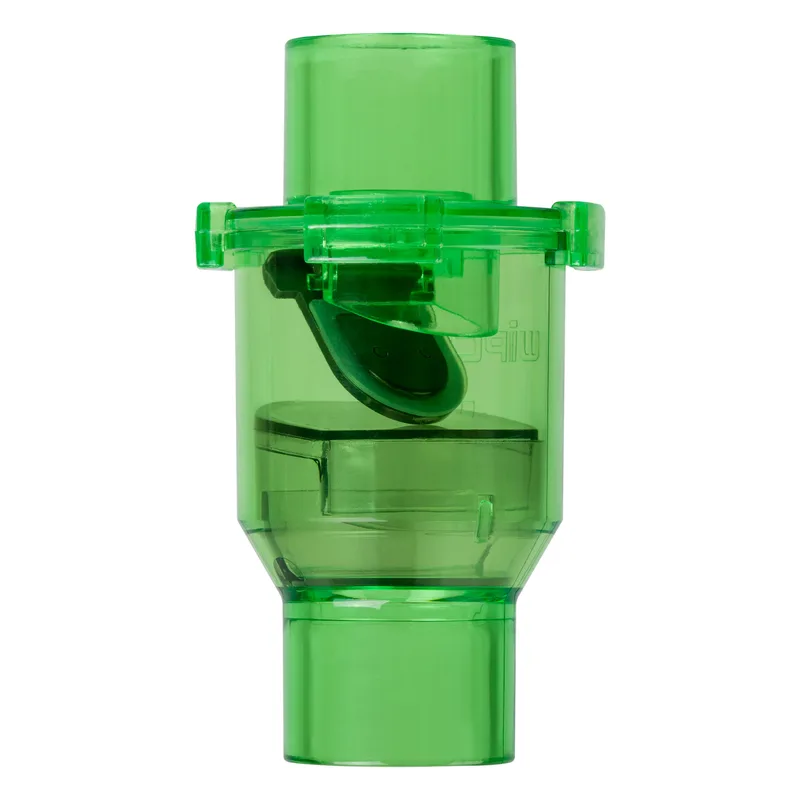

Wipcool PT-25V Condensate Trap
Vertical condensate trap with a spring-loaded non-return valve for AC condensate drains (Ø32/Ø25 mm connections), limiting the ingress of air, odours and insects into the pipe.
- Spring-loaded non-return valve
- UV-resistant PC body
- Ø32/Ø25 mm connections
- Vertical installation
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
Key parameters
Ø32 / Ø25mm
Connection OD / ID
pionowy
Installation
1200Pa
Negative pressure resistance
sprężynowy zawór zwrotny
Closure
The PT-25V is a vertical Wipcool condensate trap for condensate drain pipes in air conditioning and refrigeration systems. It limits the ingress of outside air, unpleasant odours and insects into the pipe.
Inside, a sensitive spring-loaded non-return valve does the work. The connections have an outside diameter of Ø32 mm and an inside diameter of Ø25 mm.
Note: Do not use alcohol, petrol or solvents to clean the condensate trap.
Valve opened by the condensate
The spring-loaded non-return valve opens under the weight of the condensate and, when no condensate is flowing, closes to limit the ingress of air, odours and insects.
Opens with a twist of the cap
The snap closure opens with a twist of the cap, making it easier to clean the trap reservoir.
Technical specifications
| Inner diameter | Ø25 mm |
| Outer diameter | Ø32 mm |
| Negative pressure | 1200 Pa |
| Net weight | 60 g |
| Dimensions (dia. × height, mm) | Ø45 × 100 |
| Operating temperature | 0–40 °C |
| Carton quantity | 60 pcs |
Features and equipment
Spring-loaded non-return valve
Internal water-retaining chamber
Built-in seal to prevent leaks
Body made of PC, resistant to UV radiation and corrosion
Snap closure, opened by twisting the cap
For indoor use
CAUTION
This equipment must only be operated by qualified personnel. Read the user manual before first use.
