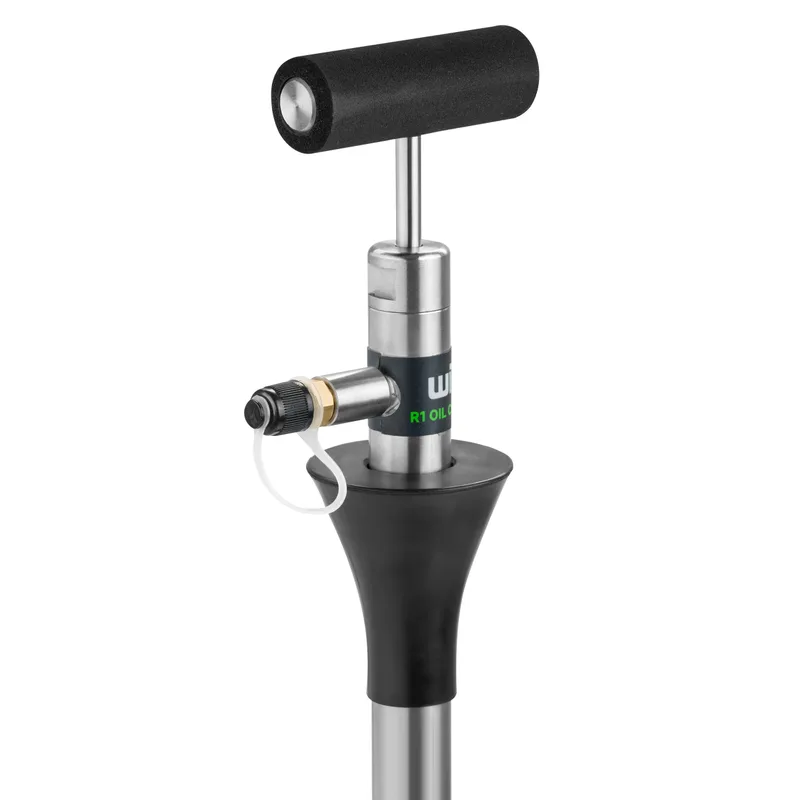

Wipcool R1 Oil Charging Pump

Manual pump for adding refrigeration oil to running air conditioning systems and smaller refrigeration equipment. One stroke of the lever delivers up to 50 ml of oil against a back pressure of up to 10 bar.

Charging without shutdown
All refrigeration oils
Oil backflow protection
24-month warranty
Warranty service in Poland
Service by the distributor in the country of purchase

Key parameters

Max. oil per stroke

10bar

Max. pressure

1/4" SAE

Connections

Net list price

Request a quote

The R1 is a manual pump for adding and removing refrigeration oil when servicing air conditioning and refrigeration equipment, designed primarily for smaller refrigeration units. It works with all types of refrigeration oil, and the oil enters the system while the unit is running, so you do not need to switch it off while charging oil.

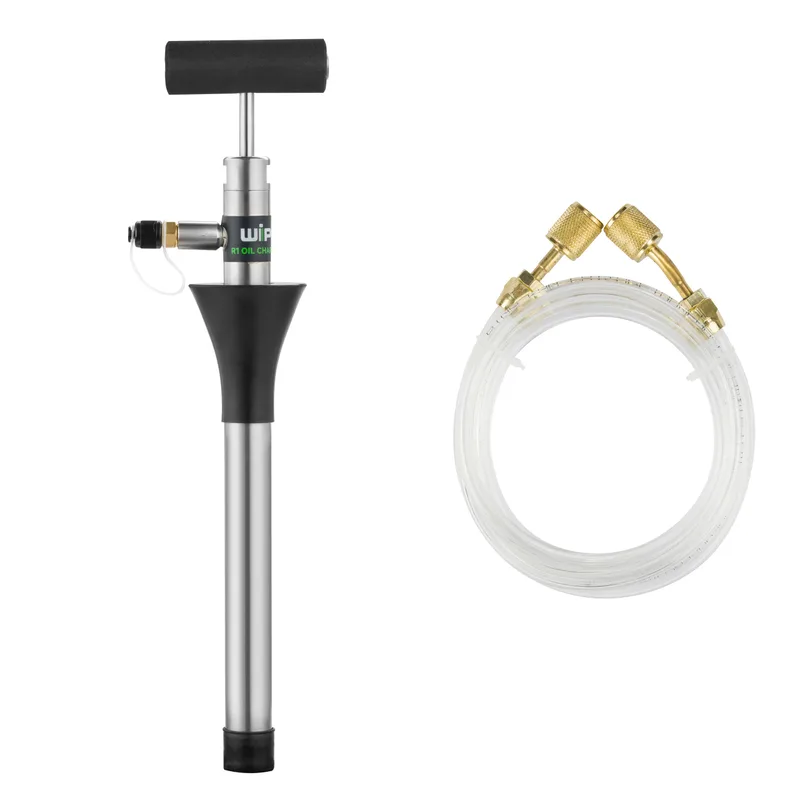

One stroke of the lever delivers up to 50 ml of oil, and the pump overcomes a back pressure of up to 10 bar. The tapered rubber stopper fits 3.8 l, 9.5 l and 19 l cans as well as 5, 10 and 20 l containers. The oil flows into the system through a 1.5 m clear hose with a 1/4" SAE connection.

Dose measured by lever strokes

One stroke of the lever delivers up to 50 ml of oil, so you can easily control the amount added by counting strokes.

Oil pumped straight from the container

The tapered rubber stopper fits 3.8 l, 9.5 l and 19 l cans as well as 5, 10 and 20 l containers, so you do not need to decant the oil into another vessel.

No oil backflow from the system

The anti-backflow design protects the system when oil is charged under pressure.
