Wipcool R2 Oil Charging Pump

Manual pump with a base held down by your foot for adding refrigeration oil to the compressor while the system is running. One lever stroke delivers up to 75 ml of oil against a back pressure of up to 15 bar.

  • Add oil without shutting down
  • Base held down by your foot
  • Oil backflow prevention
  • 24-month warranty
  • Service by the distributor in the country of purchase
  • Manual PL
Key parameters
75ml
Max. oil per stroke
15bar
Max. pressure
1/4" and 3/8" SAE
Connections
Net list price
99,77 €
Request a quote
Where to buy

The R2 is a manual refrigeration oil charging pump with a base held down by your foot to stabilise the pump during operation. Oil is delivered to the compressor while the system is running, so there is no need to shut it down during charging. The pump works with all types of refrigeration oil.

One lever stroke delivers up to 75 ml of oil, and the pump operates against a back pressure of up to 15 bar. A transfer tube with a copper tube draws oil from the container, and a 1.5 m high-pressure outlet hose connects the pump to the compressor valve.

Base held down by your foot stabilises the pump
Your foot on the base prevents the pump from moving or turning, so you can apply more force to the lever against the high pressure of the running compressor.
Oil measured in lever strokes
One lever stroke delivers up to 75 ml of oil, making it easy to control the amount added by counting strokes.
Oil pumped directly from the container
The universal stopper automatically fits the openings of 3.8 l, 9.5 l and 19 l cans and 5, 10 and 20 l containers, so there is no need to transfer the oil.
Oil does not flow back from the system
The backflow prevention design protects the system when oil is delivered under pressure.

In the box

  • R2 Oil Charging Pump

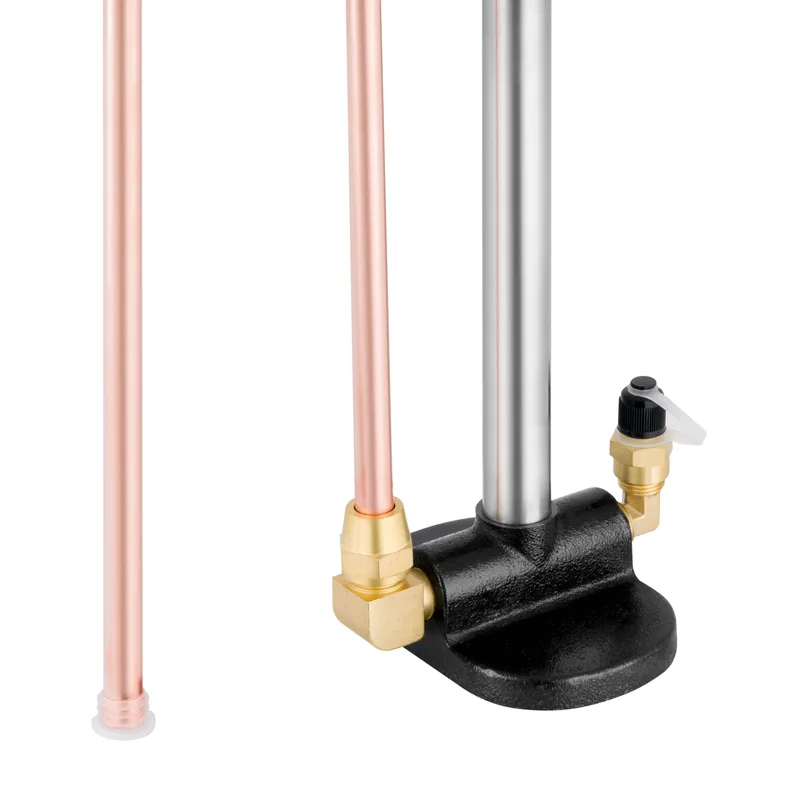

  • Transfer tube
    With a copper tube for the oil container

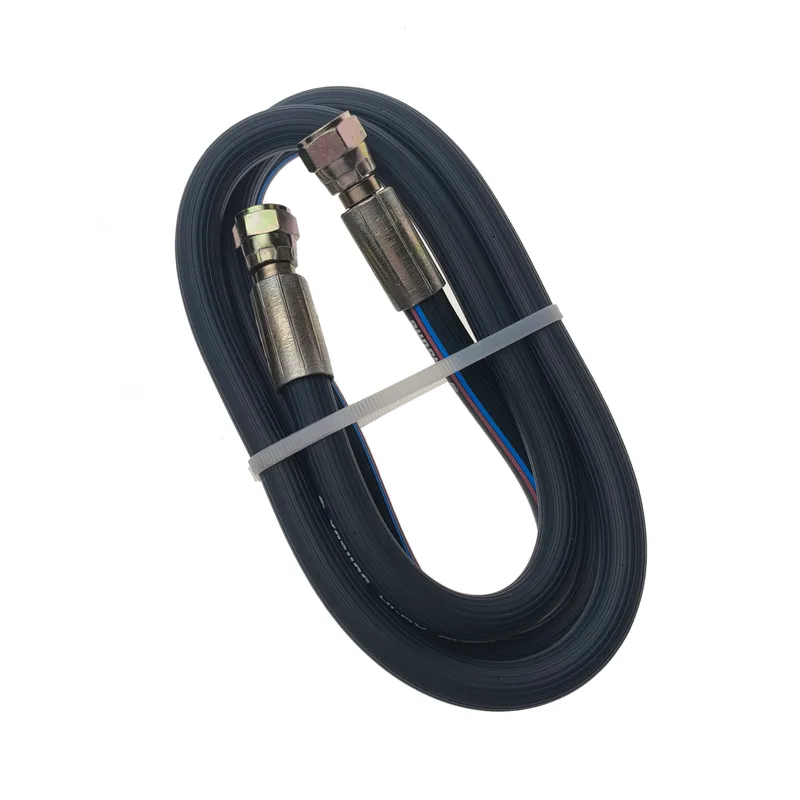

  • High-pressure outlet hose
    Length 1.5 m
  • Connectors
  • User manual
