Home/HVAC/R Tools/Oil Charging Pumps/Wipcool R6 PRO Electric Oil Charging Pump
Oil Charging Pumps
R6 PRO

Wipcool R6 PRO Electric Oil Charging Pump

A 3.5 kg electric pump for topping up and changing oil in the compressors of large refrigeration systems, including those with A2L refrigerants. Delivers up to 300 l/h against back pressure of up to 20 bar.

  • Back pressure up to 20 bar
  • Flow rate up to 300 l/h
  • Weight 3.5 kg
  • For systems with A2L refrigerants
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
20bar
Max. back pressure
300l/h
Max. flow rate
550W
Motor power
Net list price
297,44 €
Request a quote
Where to buy

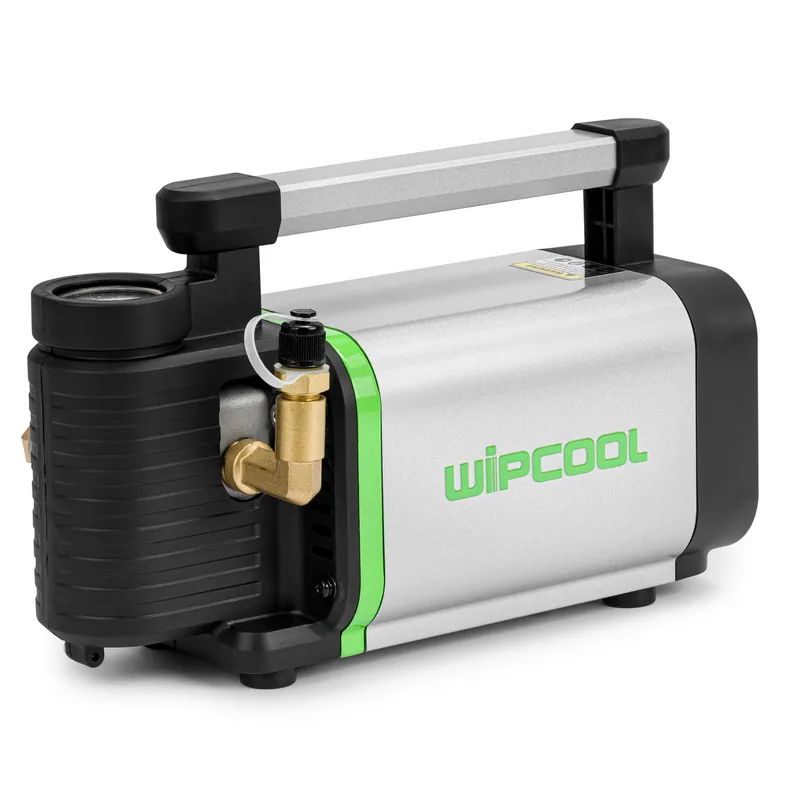

R6 PRO is an electric refrigeration oil charging pump designed for topping up and changing oil in the compressors of chillers, industrial systems, cold stores and marine refrigeration. It works with all types of refrigeration oil, especially high-viscosity oils. Its non-sparking design means it is also suitable for systems with A2L refrigerants (e.g. R32, R1234yf).

The gear pump with a 550 W brushless DC motor delivers up to 300 l/h and overcomes system back pressure of up to 20 bar. The complete pump weighs 3.5 kg. A pressure gauge on top of the pump shows the current working pressure.

Charging against pressure up to 20 bar
The pump delivers oil into the compressor even when the back pressure in the system reaches 20 bar.
Lightweight 3.5 kg pump
With its brushless DC motor, the complete pump weighs 3.5 kg, so it is easy to carry to the chiller.
Pressure visible on the gauge
The shock-resistant pressure gauge shows the current working pressure during charging.

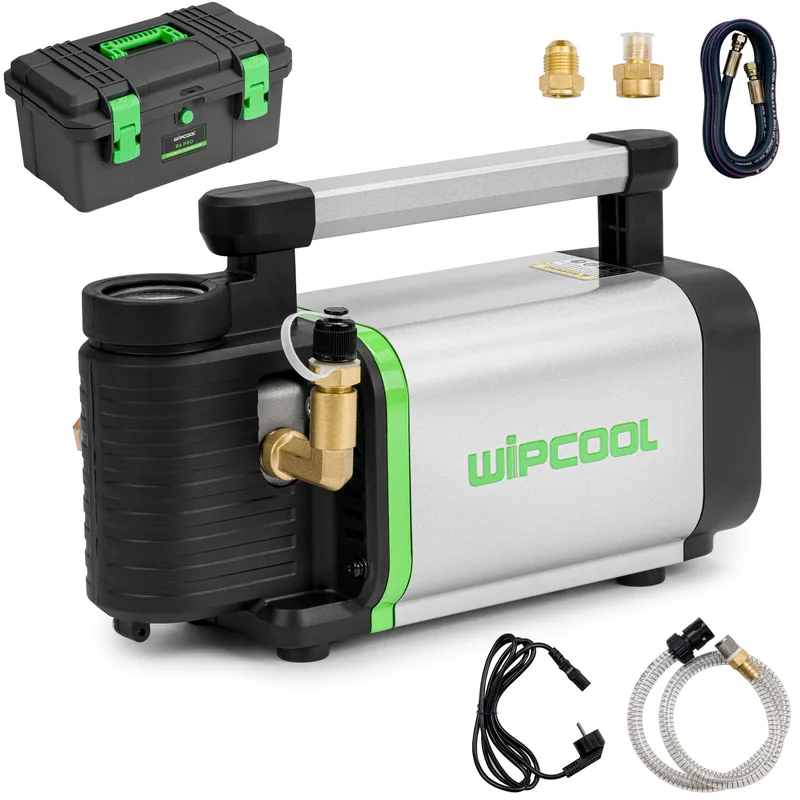

In the box

  • R6 PRO Oil Charging Pump
  • Suction hose
    0.8 m
  • Charging hose
    1.5 m
  • 1/4" SAE and 3/8" SAE adapters
  • Tool case
