Oil Charging Pumps
R6

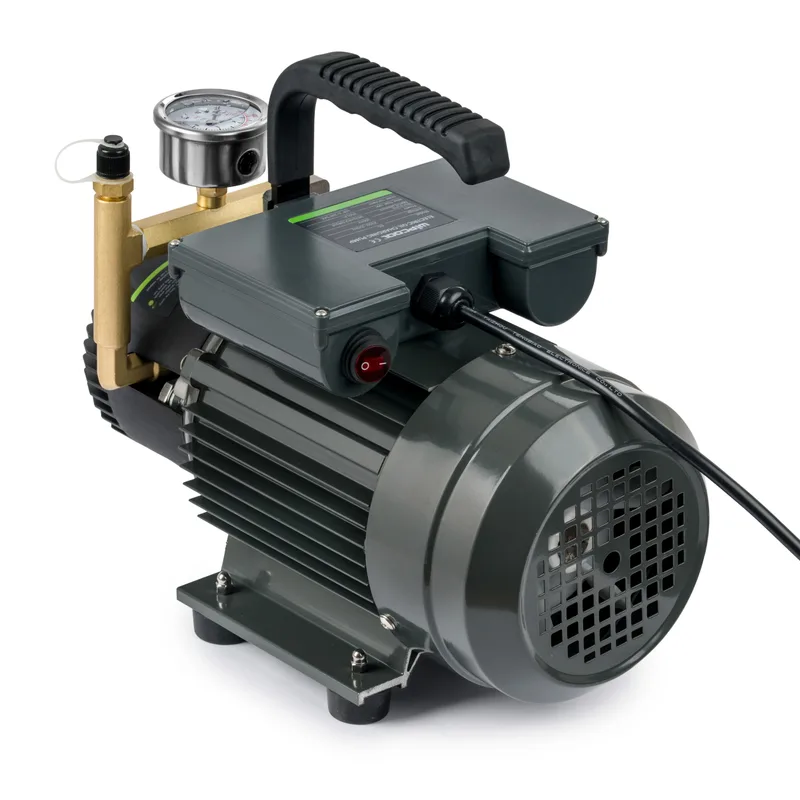

Wipcool R6 Oil Charging Pump

Electric pump for topping up and changing oil in the compressors of large HVAC systems, including high-viscosity oils. It delivers up to 350 l/h at up to 25 bar, even into a running system.

  • High-viscosity oils
  • Working pressure gauge
  • Pressure relief valve
  • Thermal protection
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
350l/h
Max. flow
25bar
Max. pressure
1/4" i 3/8" SAE
Connections
550W
Motor power
Net list price
Request a quote
Request a quote
Where to buy

The R6 is an electric refrigeration oil charging pump designed for topping up and changing oil in the compressors of large HVAC systems and for filling compressors when they are replaced. It works with all types of refrigeration oil, particularly high-viscosity oils, even at low temperatures. The pump also delivers oil into a running system.

The pump is driven by a 550 W motor powered at 230 V. The maximum flow rate is 350 l/h and the maximum pressure is 25 bar. A pressure gauge on top of the pump shows the current working pressure.

Working pressure visible at all times
The pressure gauge on top of the pump shows the current working pressure, so you can see the pressure the pump is working at while charging oil.
Pressure relief valve at 25 bar
When the charging pressure exceeds 25 bar (2.5 MPa), the pressure relief valve opens and returns the oil to the pump inlet, lowering the pressure in the charging hose.
No oil backflow after a power failure
A ball check valve in the pump prevents oil or refrigerant from flowing back out of the system if the power fails or the pump breaks down.
Motor thermal cut-out
A built-in thermal cut-out protects the pump against overload - when it trips, the pump stops working.

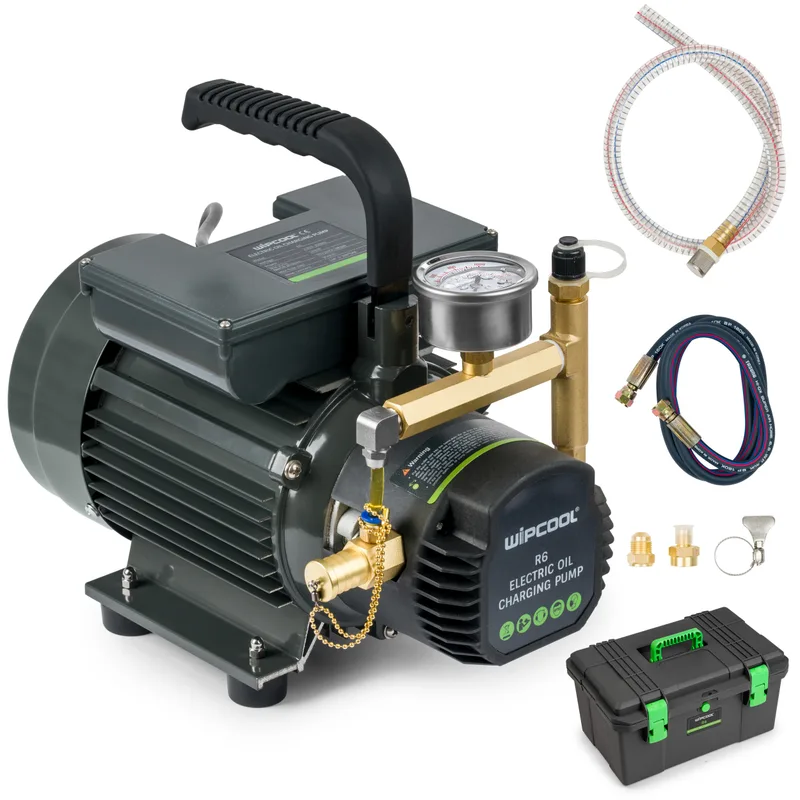

In the box

  • R6 oil charging pump
  • Suction hose 0.8 m
  • Charging hose 1.5 m
  • 1/4" SAE and 3/8" SAE adapters

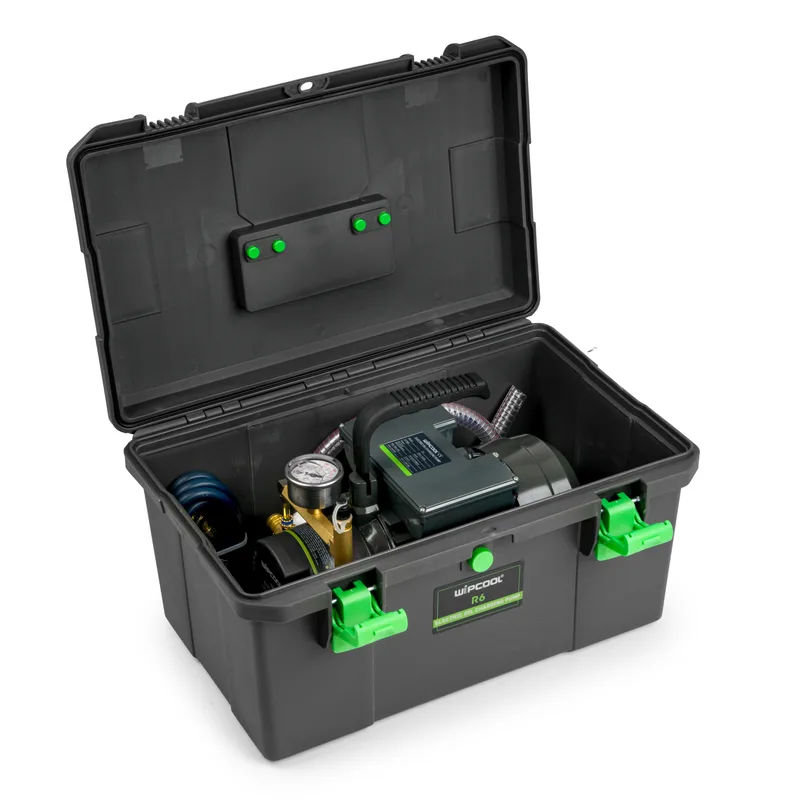

  • Tool case
  • User manual
