Wipcool MRS120 Refrigerant Charging Scale
Refrigerant charging scale with a solenoid valve and Bluetooth remote control for charging and recovery by weight, with a 120 kg capacity and 8 g resolution. Operates in manual mode with A3 refrigerants.
- Solenoid valve
- Bluetooth remote control
- Compatible with A2L refrigerants
- Manual mode for A3 refrigerants
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
The MRS120 refrigerant charging scale measures the weight of refrigerant and controls its flow during charging and recovery. The refrigerant quantity, a minimum of 50 g, is set on the wireless Bluetooth remote control, and the built-in solenoid valve shuts off the flow when the scale measures the set weight.

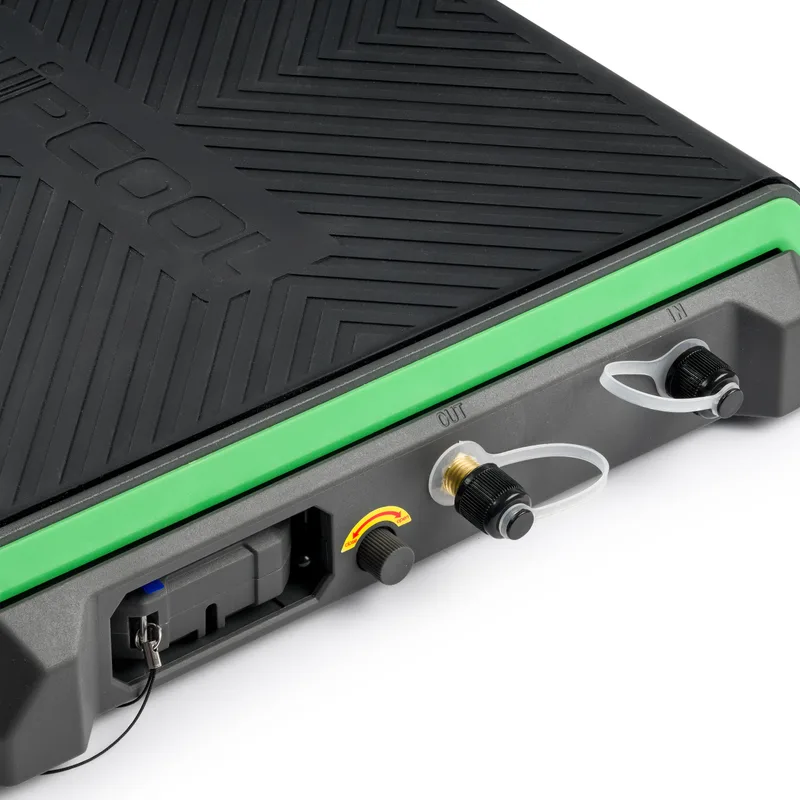

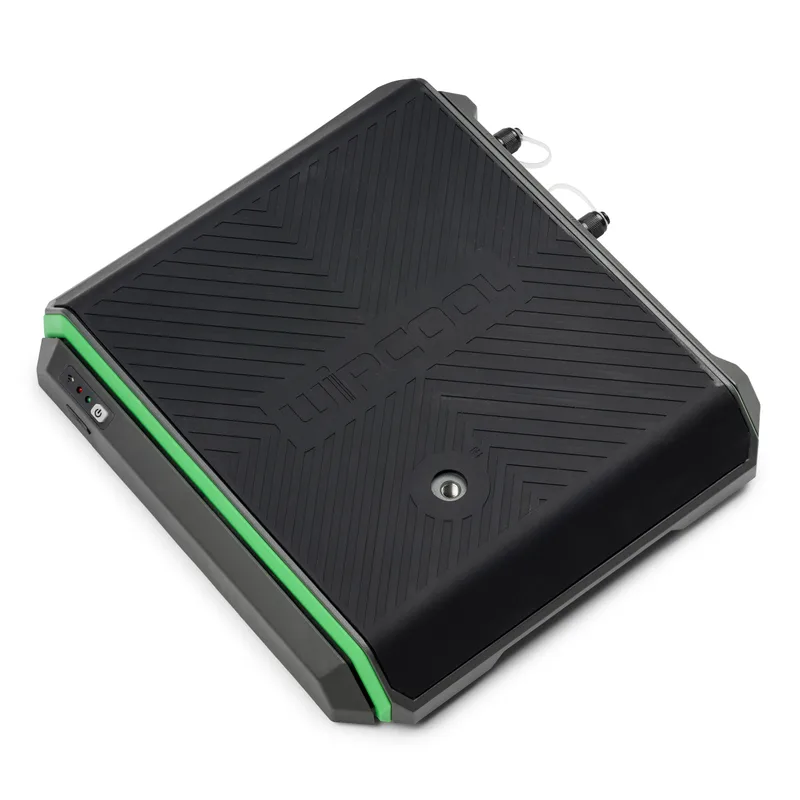

The platform has a 120 kg capacity and 8 g resolution. The supplied valve screws into the platform's M10 thread and allows the system to be charged from an inverted cylinder. With A3 refrigerants, such as R290 and R600a, the scale operates in manual mode and sounds an alarm when the set weight is reached.

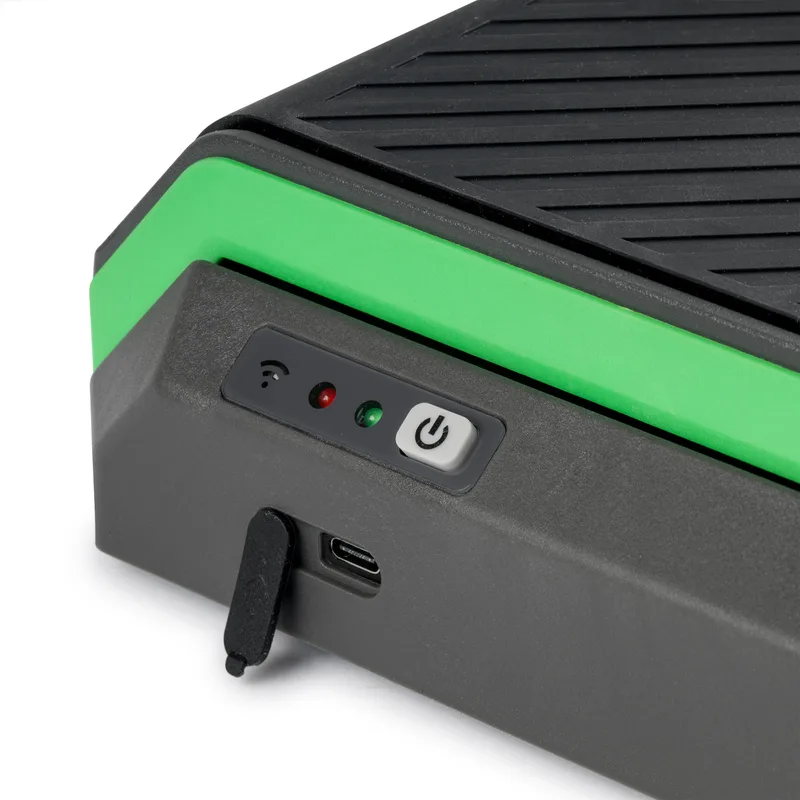

The platform is powered by 3 supplied 18650 batteries, charged via a USB-C port, and the remote control by 2 AAA batteries.

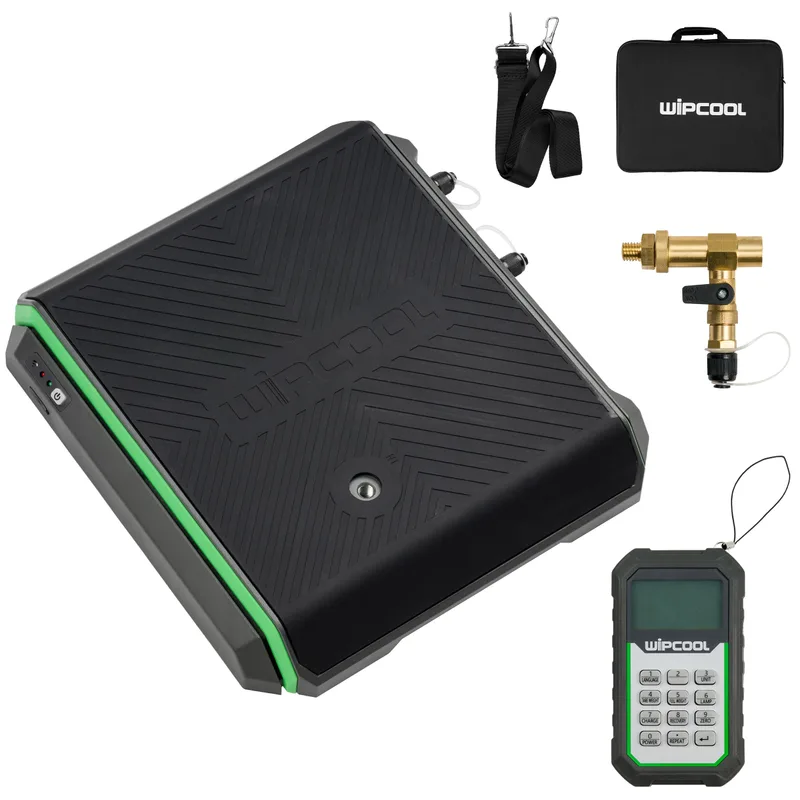

In the box
- MRS120 scale platformwith solenoid valve and USB-C charging port
- Wireless Bluetooth remote controlpower supply: 2 AAA 1.5 V batteries
- M10 valve for refrigerant cylinder7/16"-28 UNEF and 7/16"-20 UNF (1/4" SAE) connections
- Li-ion 18650 batteries3 pcs., 3.7 V, 2400 mAh
Technical specifications
| Capacity | 120 kg |
| Minimum increment (resolution) | 8 g |
| Accuracy | ±0,05% |
| Units | kg / oz / lb |
| Operating temperature | 0–50 °C |
| Storage temperature | -10 to +60 °C |
| Power supply | 3 × 3.7 V Li-ion battery (18650, 2400 mAh) - scale; 2 × 1.5 V AAA battery - wireless controller |
| Operating time | Up to 60 hours (on a full charge) |
| Accessories | M10 threaded valve for refrigerant cylinder |
| Minimum charging and recovery quantity | 50 g |
| Minimum weighed mass | 50 g |
| Remote control range | 5 m |
| Remote control operating time | up to 30 h |
| Platform dimensions | 335 × 315 × 62 mm |
| Packaging | tool bag |
| Outer packaging | 5 pcs. |
Features and equipment
This equipment must only be operated by qualified personnel. Read the user manual before first use.
