HT-3

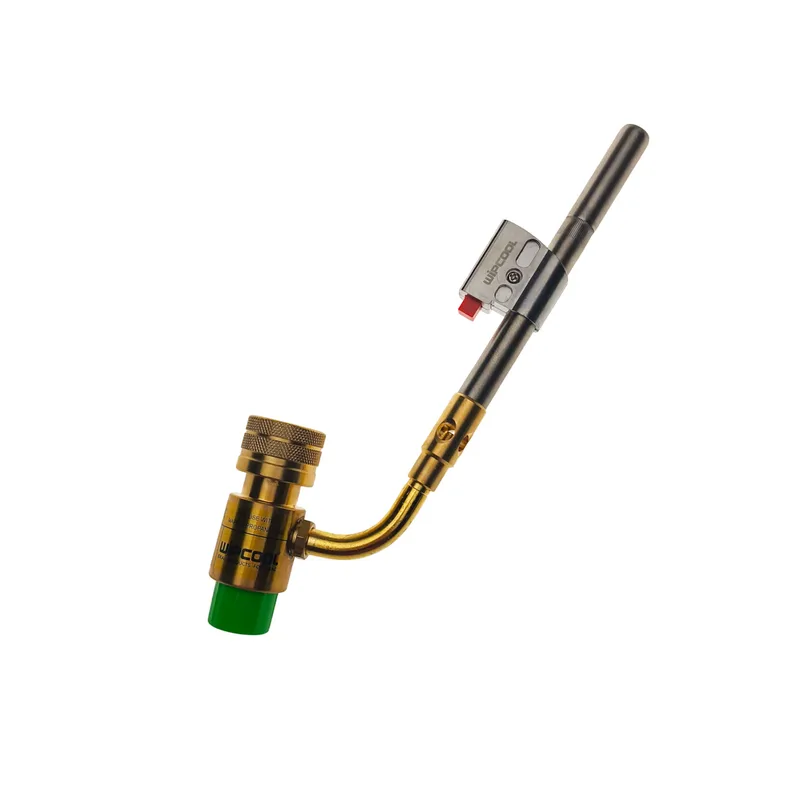

Wipcool HT-3 Brazing Torch

Trigger-start torch with a 360° swivel head for brazing and soldering copper tube with MAPP gas or propane. With MAPP gas it is suitable for soldering tube up to Ø2" and brazing tube up to Ø1".

  • Trigger start
  • 360° swivel head
  • MAPP or propane
  • CGA600 connection
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
końcówka obrotowa 360°
Version
1"
Max. Cu tube Ø, brazing (MAPP)
2"
Max. Cu tube Ø, soldering (MAPP)
>1982°C
Flame temp. (MAPP)
Net list price
Request a quote
Request a quote
Where to buy

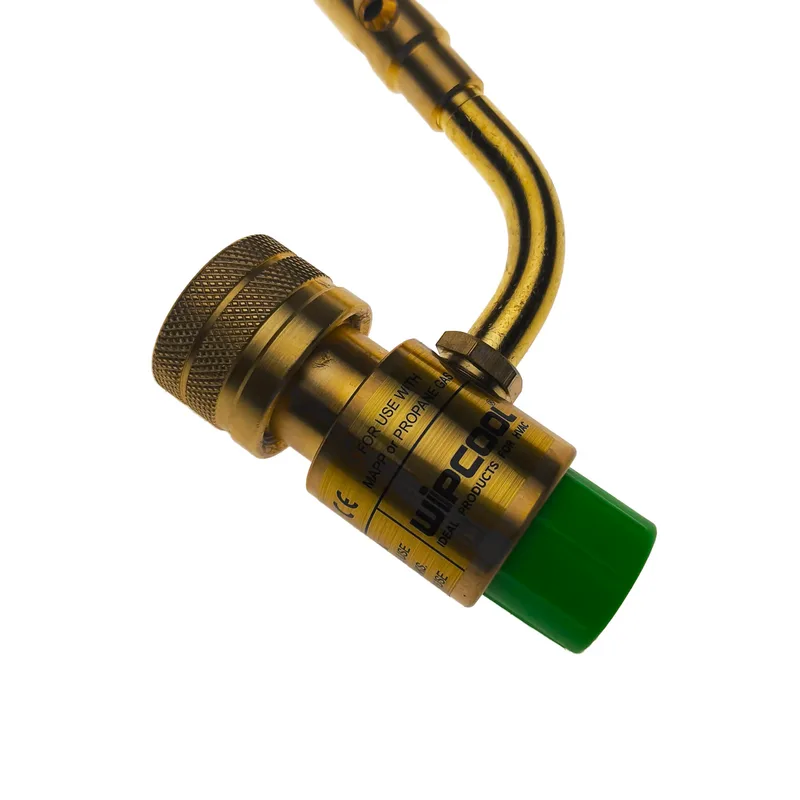

The HT-3 is a hand torch with automatic ignition that screws onto a 400–454 g MAPP gas or propane cylinder via a CGA600 connection. The head rotates through 360°, and with MAPP gas the flame temperature exceeds 1,982 °C. Flame size is set with the valve at the connection, and gas pressure is controlled by an internal regulator.

Note: At a low flame setting the torch tip overheats.

360° swivel head
The head rotates through 360°, so you can direct the flame at the joint in various working positions.

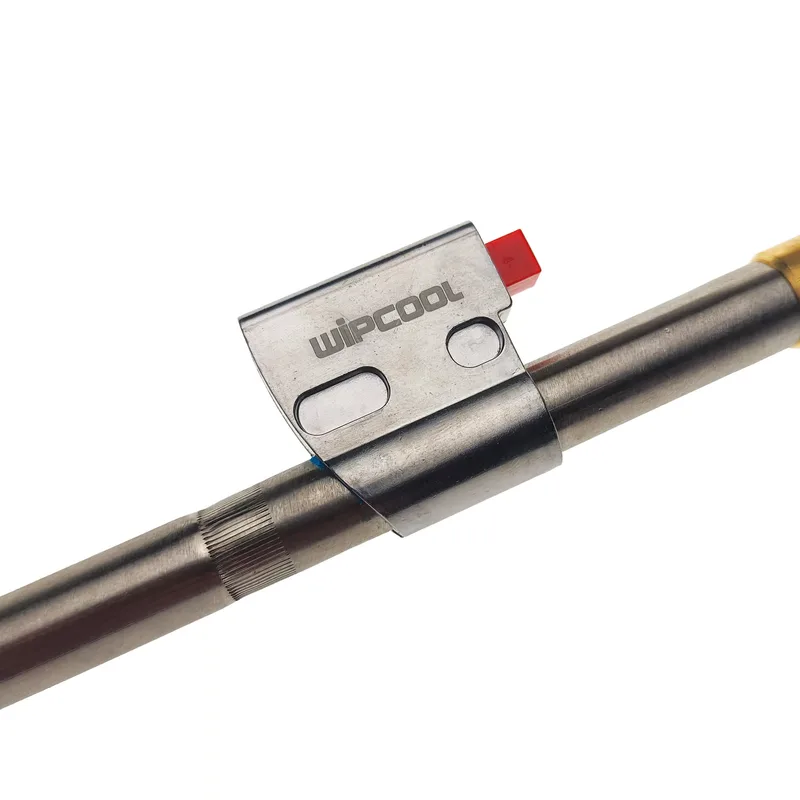

Trigger locked in the OFF position
When the trigger switch is set to OFF, accidentally pressing the trigger will not light the torch.

In the box

  • HT-3 Brazing Torch
  • User manual
