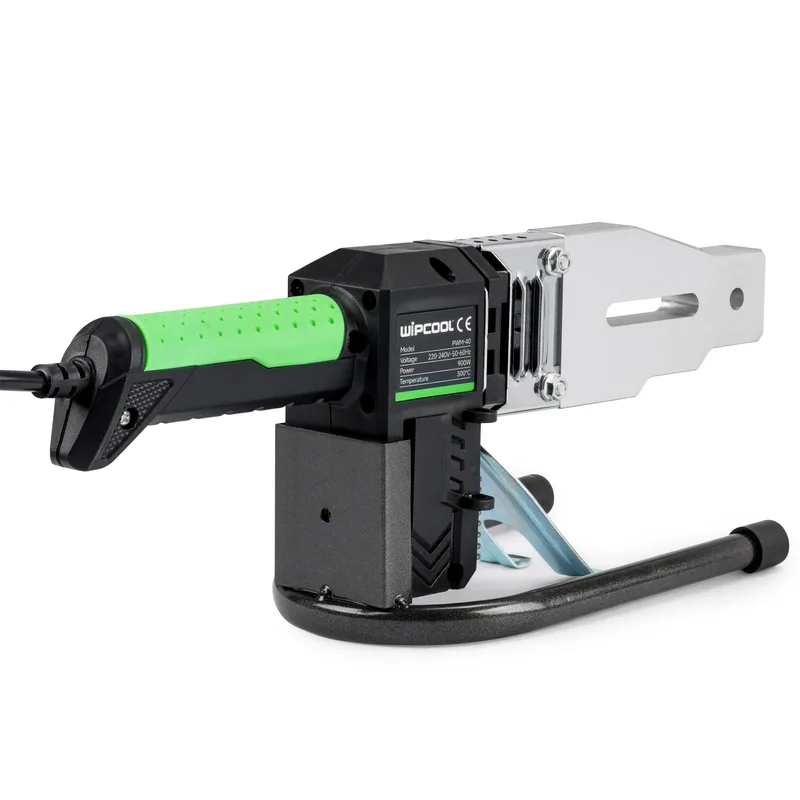

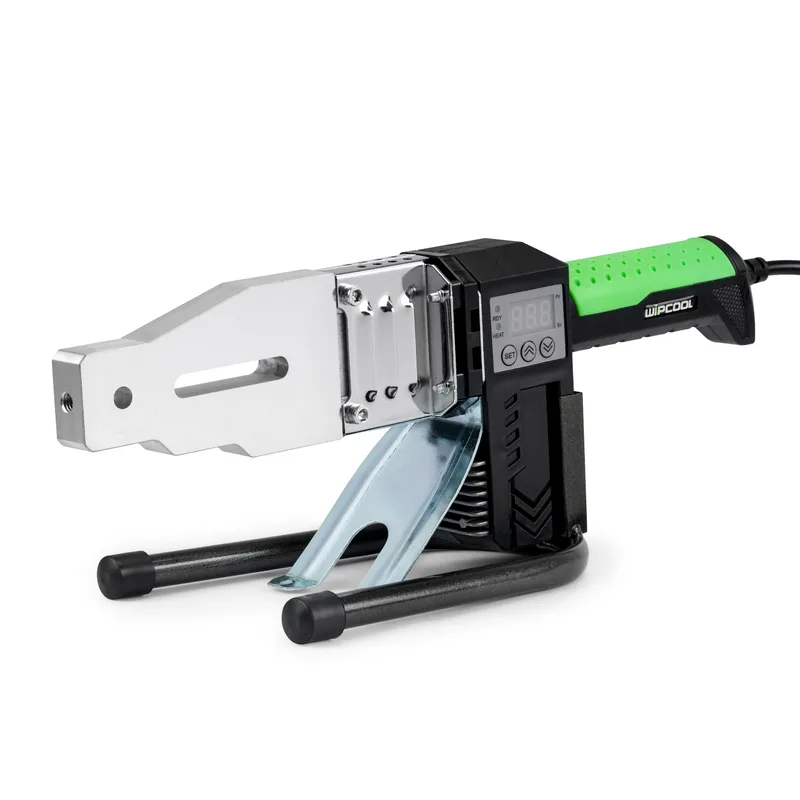

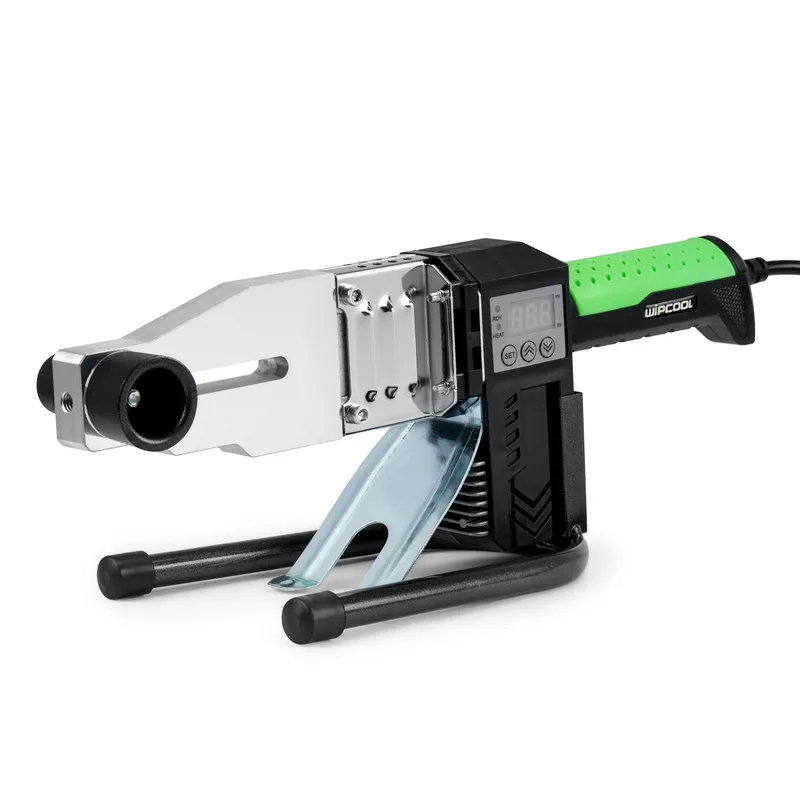

Wipcool PWM-40 Socket Fusion Welder for PP Pipes
Welder for joining PP and PE pipes and fittings in 20, 25, 32 and 40 mm diameters, with head temperature adjustable from 100–320 °C. Heating dies for these diameters are included.
- Adjustable 100–320 °C
- Digital display
- 4 heating dies included
- Thermal protection
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
The Wipcool PWM-40 socket fusion welder for PP pipes joins plastic pipes and fittings, such as PP and PE, in installation and service work. Heating dies for 20, 25, 32 and 40 mm pipes are included.
The head temperature is electronically adjustable from 100–320 °C, and the welder is rated at 900 W. The unit is designed for indoor use.
Note: Do not use metal tools to clean the heating dies.

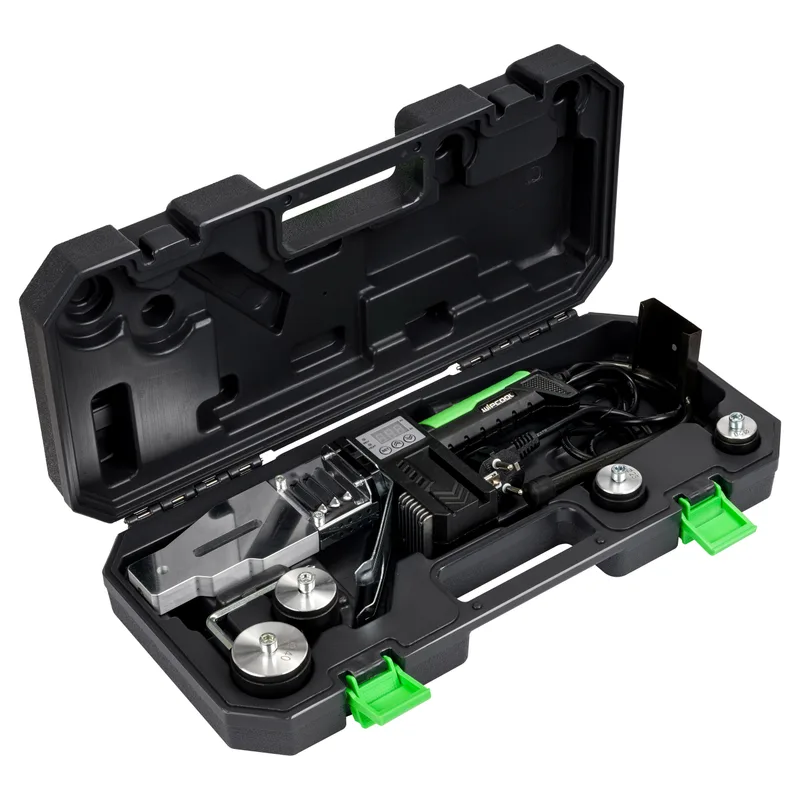

In the box
- Heating dies20, 25, 32 and 40 mm, Teflon-coated
- Allen keyfor fitting the heating dies
- User manual
Technical specifications
| Power supply | 230 V |
| Power | 900 W |
| Temperature adjustment range | 100–320 °C |
| Pipe diameters | 20 / 25 / 32 / 40 mm |
| Heating time (20 / 25 / 32 / 40 mm) | 5 / 7 / 8 / 12 s |
| Joining time (20 / 25 / 32 / 40 mm) | 4 / 4 / 4 / 6 s |
| Cooling time (20 / 25 / 32 / 40 mm) | 3 / 3 / 4 / 4 min |
| Ingress protection | IPX4 |
| Protection class | I |
| Operating temperature | 0–50 °C |
| Packaging | tool case |
| Bulk packaging | carton, 5 pcs |
Features and equipment
This equipment must only be operated by qualified personnel. Read the user manual before first use.
