Pressure and Vacuum Gauges
MG-1H

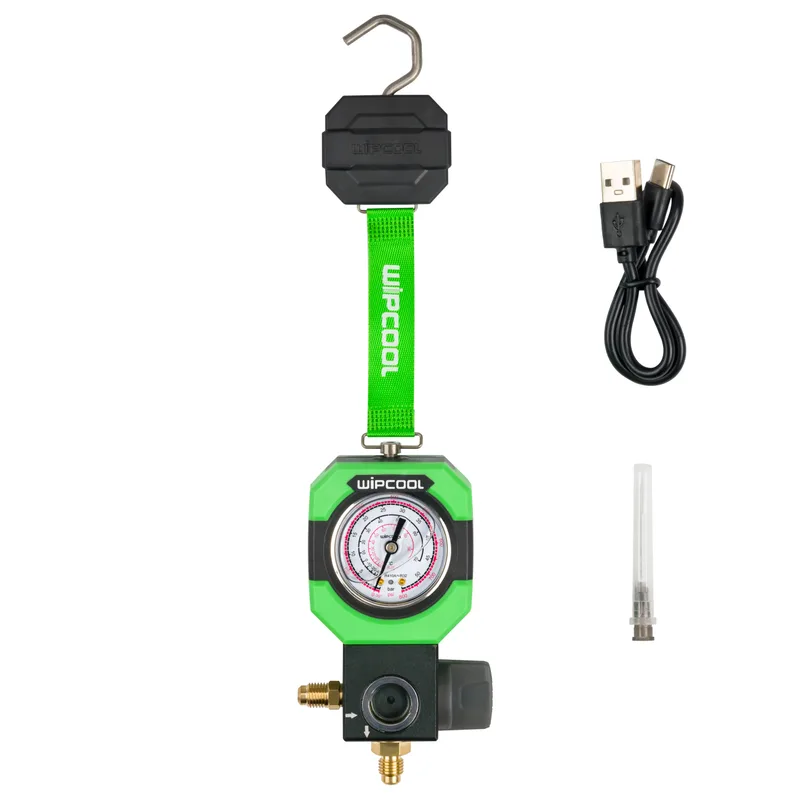

Wipcool MG-1H High-Side Gauge
Single high-side gauge with valve, -1 to 55 bar, with R410A and R32 scales, oil-filled, with LED backlight.
- LED backlight
- Oil-filled
- Shock-resistant
- Type-C charging
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
Key parameters
od -1 do 55bar
Pressure range
2 × 1/4" SAE
Connections
R410A, R32
Refrigerants
MG-1H is a single high-side gauge with valve, designed for measurements in air conditioning and refrigeration systems. It has a diameter of Ø50 and scales for R410A and R32 refrigerants, and it is oil-filled and shock-resistant.
Features include an LED backlight, a sight glass and two 1/4" SAE connections, and the built-in battery charges via a Type-C port.
LED backlight
The LED backlight illuminates the gauge dial.
Sight glass for refrigerant flow
The sight glass lets you observe the refrigerant flow.
Technical specifications
| Refrigerant | R410A, R32 |
| Connections | 2 × 1/4" SAE |
| Outer diameter | Ø50 |
| Operating pressure | od -1 do 55,2 bar |
| Type | Analogue |
| Power supply | Built-in 3.7 V, 120 mAh battery, charged via Type-C port |
| Packaging | Blister pack |
| Outer carton | 20 pcs |
Features and equipment
Single high-side gauge with valve
Ø50 gauge with R410A, R32 scales
Oil-filled gauge
Shock resistance
LED backlight
Sight glass
Two 1/4" SAE connections
Built-in 3.7 V, 120 mAh battery
Type-C charging port
