Wipcool MDG-1 Digital Pressure Gauge

Single digital pressure gauge with control valve for refrigeration systems, 0–55 bar range, displays refrigerant evaporation temperature.

  • 0–55 bar range
  • Evaporation temperature
  • Control valve
  • USB Type-C charging port
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
from -1 to 55bar
Pressure range
16refrigerants
Refrigerants
2 × 1/4" SAE
Connections
±0,2bar
Accuracy at 22 °C
Net list price
127,21 €
Request a quote
Where to buy

MDG-1 is a single digital pressure gauge for maintaining and checking refrigeration systems, as well as for evacuation and refrigerant charging. The built-in sensor measures pressure over a range of 0–55 bar, and when a refrigerant is selected from a list of 16, the display also shows its evaporation temperature. During evacuation, the gauge indicates negative pressure from -1 to 0 bar.

Two 1/4" SAE connections and a control valve allow the system to be connected to a refrigerant cylinder, vacuum pump or refrigerant recovery machine. The valve operates like the valve on an analogue pressure gauge. Power is supplied by a built-in 1500 mAh battery, charged via a USB Type-C port.

±0.2 bar accuracy at 22 °C
The gauge measures with an accuracy of ±0.2 bar and a resolution of 0.01 bar. The reading refreshes every second, so pressure changes during charging and evacuation are visible as they happen.
Sensor withstands up to 75 bar
The SENSATA sensor withstands an overload pressure of up to 75 bar. The gauge signals when the measuring range is exceeded with an alarm and the E1 code.

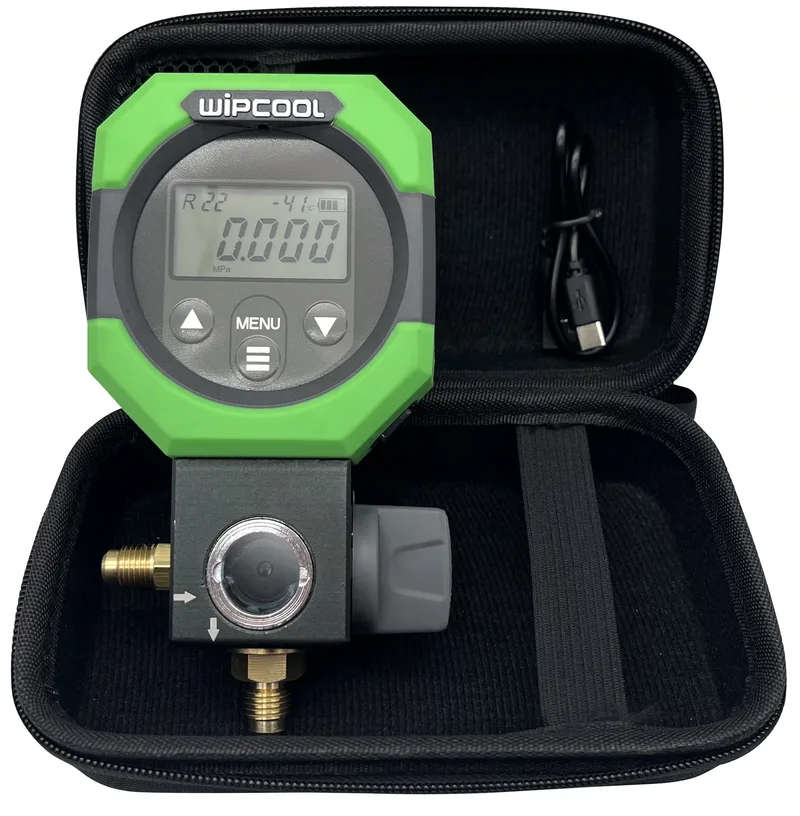

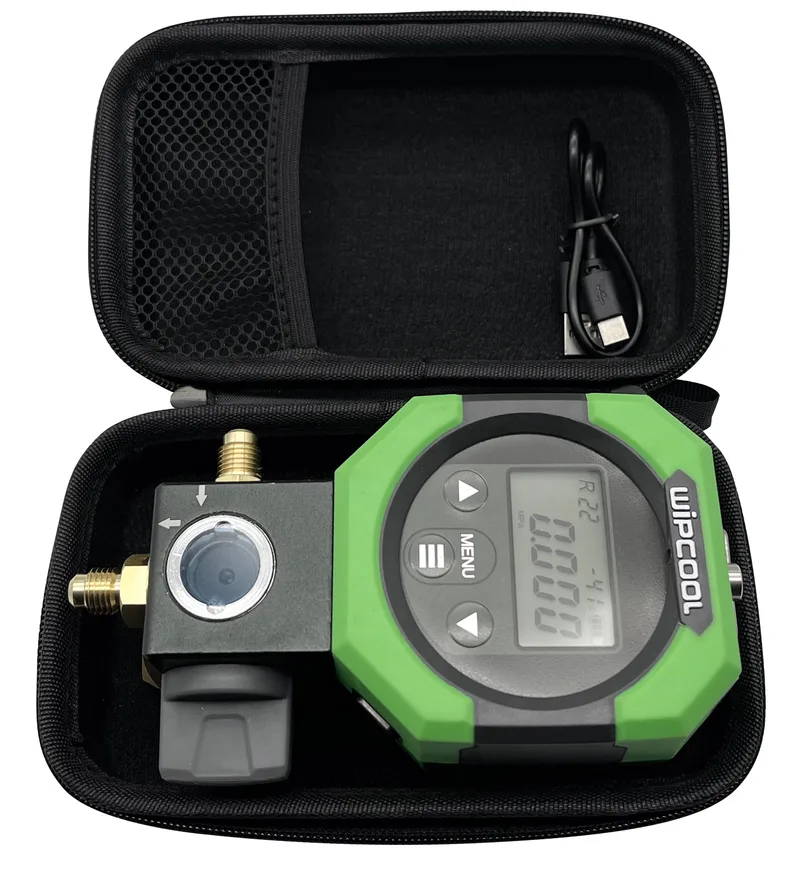

In the box

  • MDG-1 pressure gauge
  • USB Type-C charging cable
  • User manual
