MG68-2K

Wipcool MG68-2K Manifold Gauge Set

Analogue manifold gauge set for pressure measurement, evacuation and charging of systems with R32, R410A, R404A and R407C refrigerants, supplied with a bag, three 1.5 m charging hoses and 2 adapters.

  • Ball valves
  • Sight glass
  • Shock-resistant housing
  • Charging hoses 3 × 1.5 m
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
R32, R410A, R404A, R407C
Refrigerants
od -1 do 34,5bar
Low-side gauge range
od -1 do 55,2bar
High-side gauge range
3 × 1,5m
Hoses included
Net list price
Request a quote
Request a quote
Where to buy

The MG68-2K is an analogue manifold gauge set for maintaining and checking the operation of refrigeration and air conditioning systems, and for their evacuation and refrigerant charging. The gauge scales cover ranges from -1 to 34.5 bar and from -1 to 55.2 bar, and in addition to pressure the dials show the evaporating temperature of R32, R410A, R404A and R407C, the refrigerants the set is designed for.

The manifold has ball valves with separate low-side and high-side knobs, a sight glass and 3 1/4" SAE ports for charging hoses. The housing is shock-resistant, and the set can be hung from a hook.

Pressure and temperature on the dial
In addition to pressure, the dials show the refrigerant evaporating temperature - both readings are on one dial.
Vacuum scale down to -1 bar
Both scales start at -1 bar, so the low-side gauge also shows the vacuum reached during evacuation.

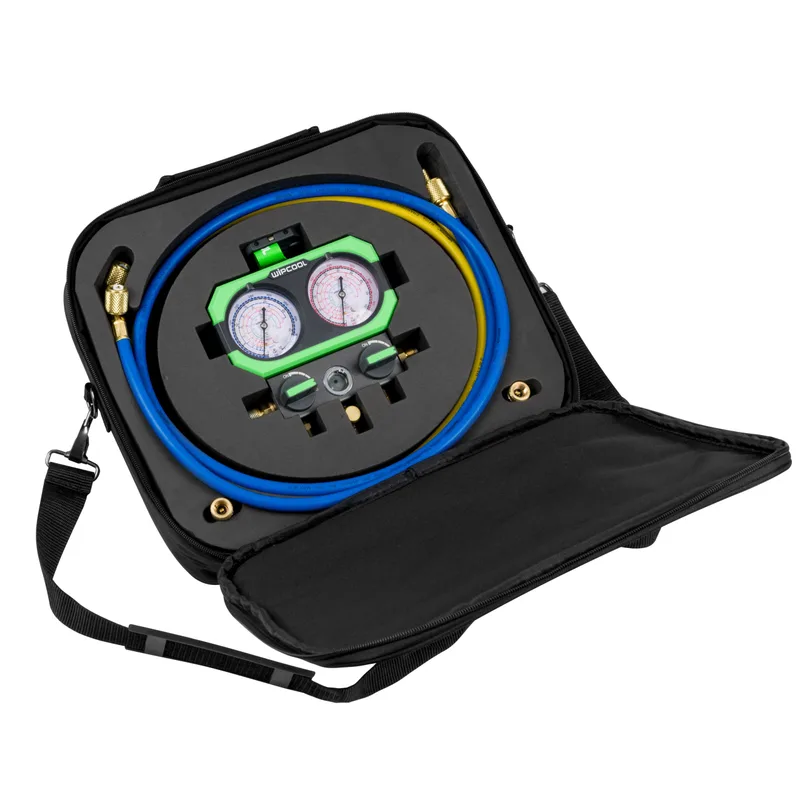

In the box

  • MG68-2K manifold with gauges
    low-side and high-side gauges
  • Blue charging hose
    1.5 m
  • Red charging hose
    1.5 m
  • Yellow charging hose
    1.5 m
  • 5/16"-1/4" adapter
    2 pcs
  • Bag
  • User manual
