Pressure and Vacuum Gauges
MG-2K

Wipcool MG-2K Manifold Gauge Set

Manifold gauge set for pressure measurement, evacuation and system charging, with scales for R410A and R32 and three 1.5 m charging hoses.

  • LED lighting
  • Oil-filled gauges
  • Charging hoses 3 × 1.5 m
  • Type-C charging
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
R410A, R32
Refrigerants
od -1 do 34,5bar
Low-side gauge range
od -1 do 55,2bar
High-side gauge range
3 × 1,5m
Hoses included
Net list price
Request a quote
Request a quote
Where to buy

MG-2K is a manifold with two Ø50 gauges - low-side and high-side - with scales for R410A and R32 refrigerants. The set is used to measure operating pressures, evacuate the system and charge it with refrigerant. The gauges are oil-filled and the set is shock-resistant.

The manifold has low-side and high-side valves, a sight glass, 3 connections of 1/4" SAE and a hanging hook. A built-in battery powers the LED lighting and is charged via a Type-C port.

Complete set of hoses and adapters
The manifold comes with three 1.5 m charging hoses - blue, red and yellow - and two 5/16"-1/4" adapters.
Push-button LED lighting
The LED lighting illuminates the gauge dials and is switched on with a button.

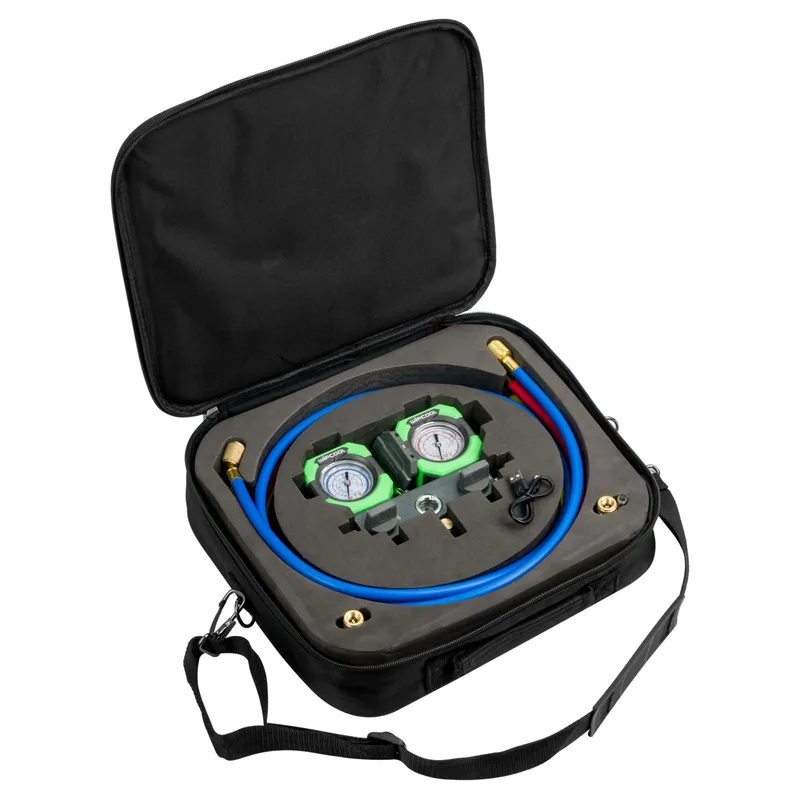

In the box

  • Manifold with gauges
    low-side and high-side gauges
  • Blue charging hose
    1.5 m, 1/4"-5/16"
  • Red charging hose
    1.5 m, 1/4"-5/16"
  • Yellow charging hose
    1.5 m, 1/4"-1/4"
  • 5/16"-1/4" adapter
    2 pcs, 5/16" MFL / 1/4" FFL
  • Type-C charging cable
  • Bag
