Wipcool MDG-2K Digital Manifold
Digital manifold for measuring low-side and high-side pressure from -1 to 55 bar, with evaporation and condensation temperatures.
- PT, HOLD and VAC modes
- Saturation temperatures
- Range from -1 to 55 bar
- Powered by 2 × AAA batteries
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
The MDG-2K is a digital manifold with low-side and high-side valves for measurements in refrigeration and air conditioning systems. A digital sensor measures pressure from -1 to 55 bar. Once a refrigerant has been selected - including R32, R410A, R134a, R290 or R1234yf - the backlit LCD displays real-time pressures on both sides of the system, as well as evaporation and condensation temperatures.
In addition to pressure and temperature measurement mode (PT), the manifold has a pressure hold test mode (HOLD) and a vacuum monitoring mode (VAC). VAC mode allows a rough assessment of the vacuum - a separate vacuum gauge is required for accurate measurement. The manifold is powered by two AAA batteries, which provide 200 h of operation with the backlight switched off.
The database includes 45 refrigerants: R32, R134a, R152a, R236fa, R245fa, R290, R404A, R407A, R407C, R407D, R407F, R407H, R410A, R417A, R420A, R421A, R421B, R422A, R422B, R422D, R424A, R426A, R427A, R428A, R434A, R437A, R438A, R442A, R448A, R449A, R450A, R452A, R452B, R453A, R454B, R454C, R455A, R458A, R507A, R508A, R513A, R600a, R744, R1234yf and R1234ze.

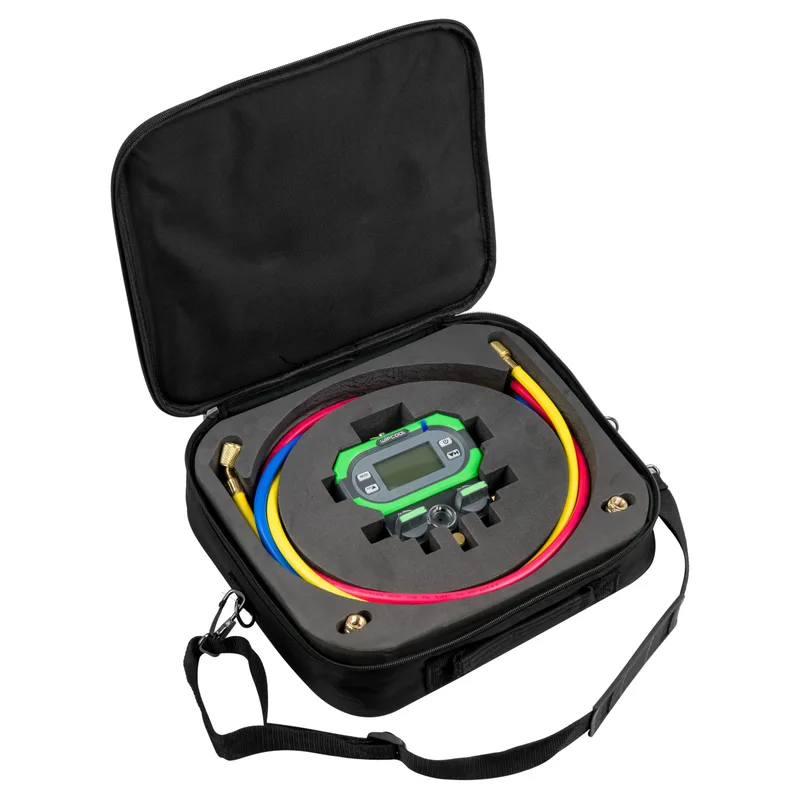

In the box
- RYB charging hoses3 pcs., 1.5 m
- 5/16"-1/4" adapter2 pcs., 5/16" MFL / 1/4" FFL
- Bag
Technical specifications
| Refrigerant | 45 refrigerants, including R32, R134a, R290, R404A, R407C, R410A, R452B, R454B, R513A and R1234yf (full list in the description) |
| Connections | 3 × 1/4" SAE |
| Operating pressure | from -1 to 55 bar |
| Accessories | RYB charging hose set, 2 adapters 5/16"-1/4" |
| Type | Digital |
| Batteries | 2 AAA 1.5 V batteries, 200 h operating time (display without backlight) |
| Operating temperature | from -10 to 50 °C |
| Packaging | Bag |
| Outer packaging | 6 pcs. |
Features and equipment
This equipment must only be operated by qualified personnel. Read the user manual before first use.
