Home/HVAC/R Tools/Pressure and Vacuum Gauges/Wipcool MG68-2KE Manifold Gauge Set
Pressure and Vacuum Gauges
MG68-2KE

Wipcool MG68-2KE Manifold Gauge Set

Analogue manifold gauge set for pressure measurement, evacuation and charging of systems using R32, R410A, R404A and R407C, with three 1.2 m hoses in a case.

  • Ball valves
  • Sight glass
  • Shock-resistant housing
  • Charging hoses 3 × 1.2 m
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
R32, R410A, R404A, R407C
Refrigerants
from -1 to 34.5bar
Low-side gauge range
from -1 to 55.2bar
High-side gauge range
3 × 1,2m
Hoses included
Net list price
81,16 €
Request a quote
Where to buy

The MG68-2KE is an analogue manifold gauge set for maintenance and operational checks of refrigeration and air conditioning systems, as well as their evacuation and refrigerant charging. The gauge scales cover ranges from -1 to 34.5 bar and from -1 to 55.2 bar. Alongside the pressure, the dials show the evaporation temperatures of the compatible refrigerants R32, R410A, R404A and R407C.

The manifold has ball valves with separate low-side and high-side control knobs, a sight glass and 3 1/4" SAE connections for charging hoses. The housing is shock-resistant, and the set can be hung from a hook. The set is supplied in a case.

Pressure and temperature on the dial
The dials show refrigerant evaporation temperature alongside pressure - both readings are on the same dial.
Vacuum scale down to -1 bar
Both scales start at -1 bar, so the low-side gauge also shows the vacuum reached during evacuation.

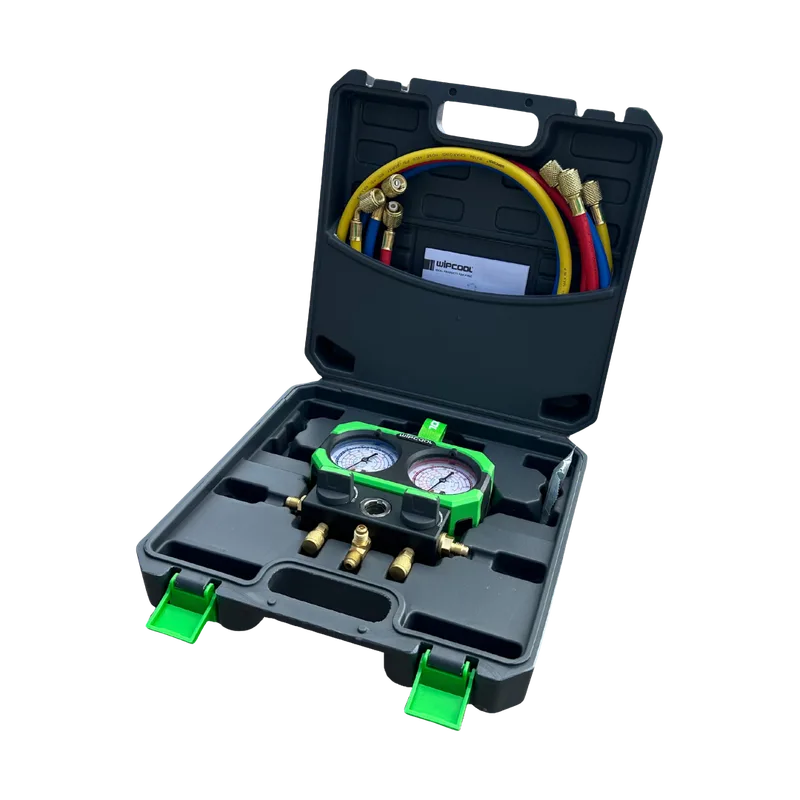

In the box

  • MG68-2KE manifold with gauges
    low-side and high-side gauges
  • Blue charging hose
    1.2 m
  • Red charging hose
    1.2 m
  • Yellow charging hose
    1.2 m

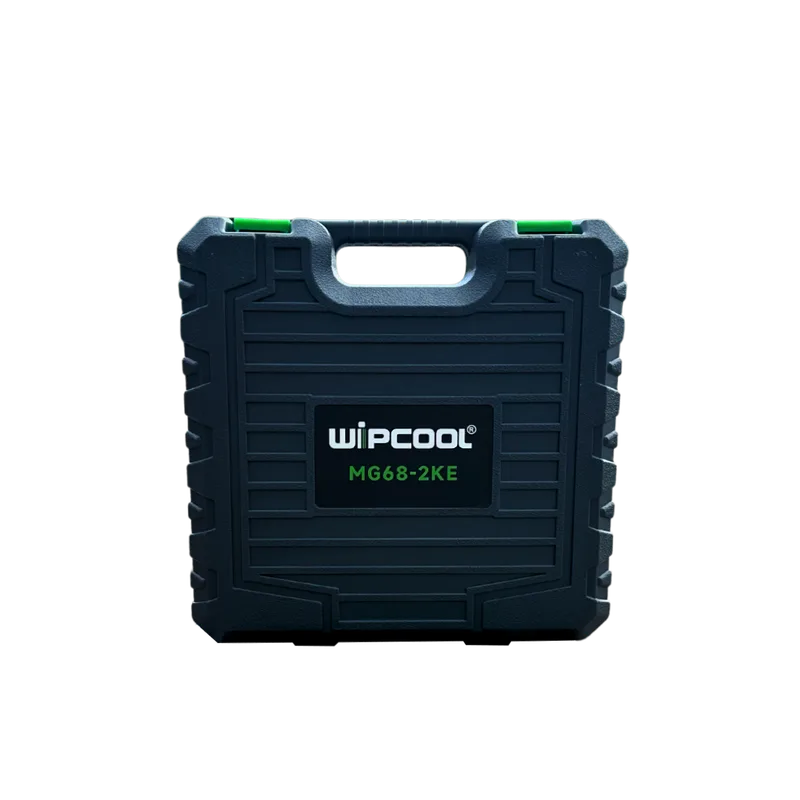

  • Case
  • User manual
