Pressure and Vacuum Gauges
MG68-3K

Wipcool MG68-3K Manifold Gauge Set

Analogue manifold gauge set with LED lighting for pressure measurement, evacuation and charging of systems using R290, R32, R410A and R600a refrigerants.

  • LED lighting
  • USB Type-C charging
  • Oil-filled gauges
  • Shock-resistant housing
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
R290, R32, R410A, R600a
Refrigerants
from -1 to 34.5bar
Low-side gauge range
from -1 to 55.2bar
High-side gauge range
3 × 1/4" SAE
Manifold connections
Net list price
120,57 €
Request a quote
Where to buy

The MG68-3K is an analogue manifold gauge set for maintaining and checking the operation of refrigeration and air conditioning systems, as well as evacuating and charging them with R290, R32, R410A or R600a refrigerant. The gauge scales range from -1 to 34.5 bar and from -1 to 55.2 bar, and the dials show refrigerant evaporation temperature alongside pressure. The gauges are oil-filled and the housing is shock-resistant.

Button-operated LED lighting makes the readings easier to see. It is powered by a built-in battery charged via USB Type-C. The manifold has low- and high-pressure valve knobs, a sight glass and 3 1/4" SAE connections for charging hoses, and the set can be hung from a hook.

LED lighting with rechargeable battery
The LED lighting is switched on with a button and makes the readings easier to see. It is powered by a built-in battery charged with a USB Type-C cable.
Pressure and temperature on the dial
The dials show refrigerant evaporation temperature alongside pressure - both readings are on one dial.
Vacuum scale down to -1 bar
Both scales start at -1 bar, so the low-side gauge also shows the vacuum reached during evacuation.

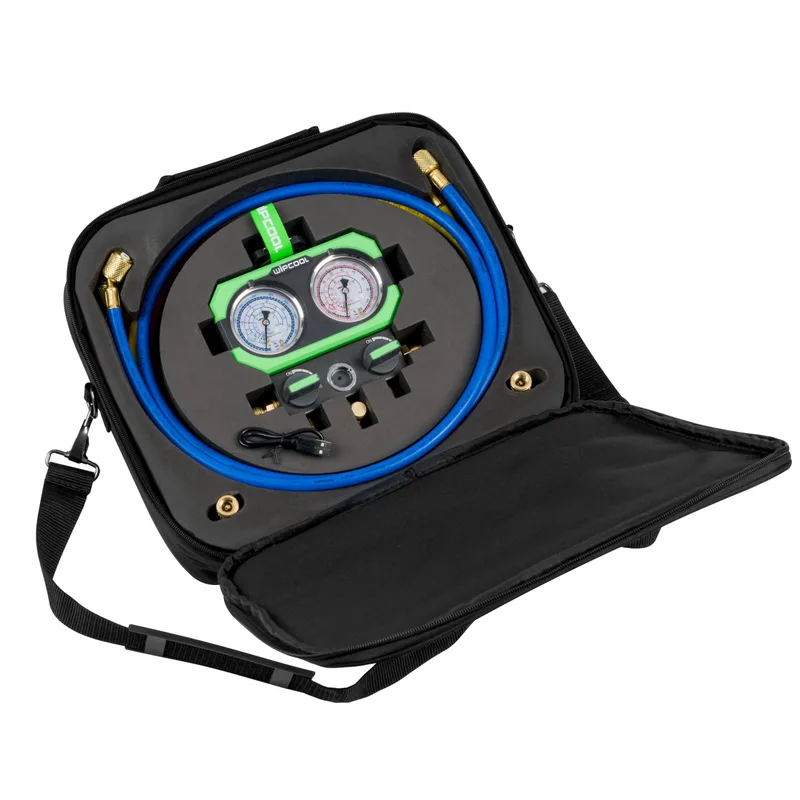

In the box

  • MG68-3K manifold with gauges
    low-side and high-side gauges
  • Blue charging hose
    1/4"-5/16"
  • Red charging hose
    1/4"-5/16"
  • Yellow charging hose
    1/4"-1/4"
  • 5/16"-1/4" adapter
    2 pcs., 5/16" MFL / 1/4" FFL
  • Bag
  • User manual
