Wipcool P12C Condensate Pump

Corner condensate pump for installation on a trunking elbow to the left or right of a split system with a cooling capacity of up to 8.8 kW. Max. head of 7 m.

  • Left- or right-hand installation
  • For corner trunking
  • NC/COM alarm circuit
  • Balanced motor
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
12l/h
Max. flow rate
7m
Max. head
up to 8.8kW
Cooling capacity
19dB(A)
Noise level at 1 m
Net list price
71,85 €
Request a quote
Where to buy

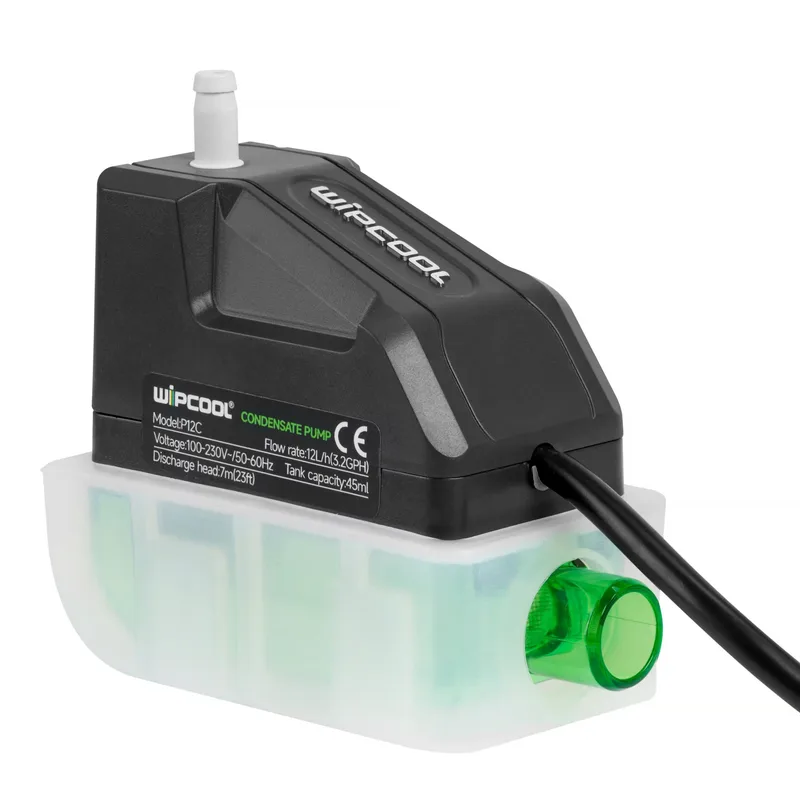

The P12C is a corner condensate pump with an integrated housing: the tank, pump and controls form a single module, with no separate tubing or wires between them. The pump mounts on the elbow of corner trunking to the left or right of the indoor unit. It is designed primarily for domestic split systems with a cooling capacity of up to 8.8 kW.

Condensate flows into the tank by gravity, and the pump discharges it through an outlet for 6 × 9 mm tubing to a height of up to 7 m. Power and alarm signals run through a single four-core cable with a connector secured by a locking nut.

One model for left- and right-hand installation
The integrated design fits the trunking elbow on either side of the indoor unit.
NC/COM alarm circuit
The built-in safety switch responds to an alarm water level in the tank. When the NC/COM alarm circuit is connected to an air conditioner control system that supports this signal, the air conditioner switches off, reducing the risk of overflow.
Balanced motor and hook-and-loop fastening
The balanced motor reduces vibration, while the hook-and-loop fastening dampens noise and vibration.

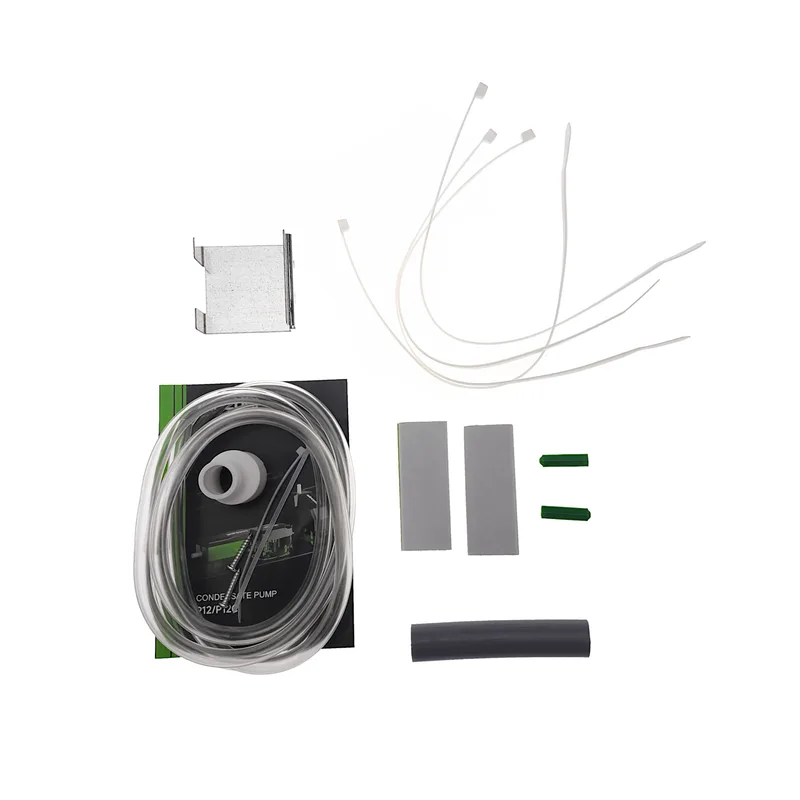

In the box

  • Cable ties
    4 pcs 30 cm, 2 pcs 10 cm
  • Hook-and-loop tape for pump mounting
    2 pcs
  • Wall plugs
    2 pcs
  • Screws
    2 pcs
  • Rubber reducer
    25 × 16 mm
  • Rubber connector
    16 mm
  • Metal bracket
  • Rubber cover
    Anti-vibration and anti-condensation
  • Condensate drain tube

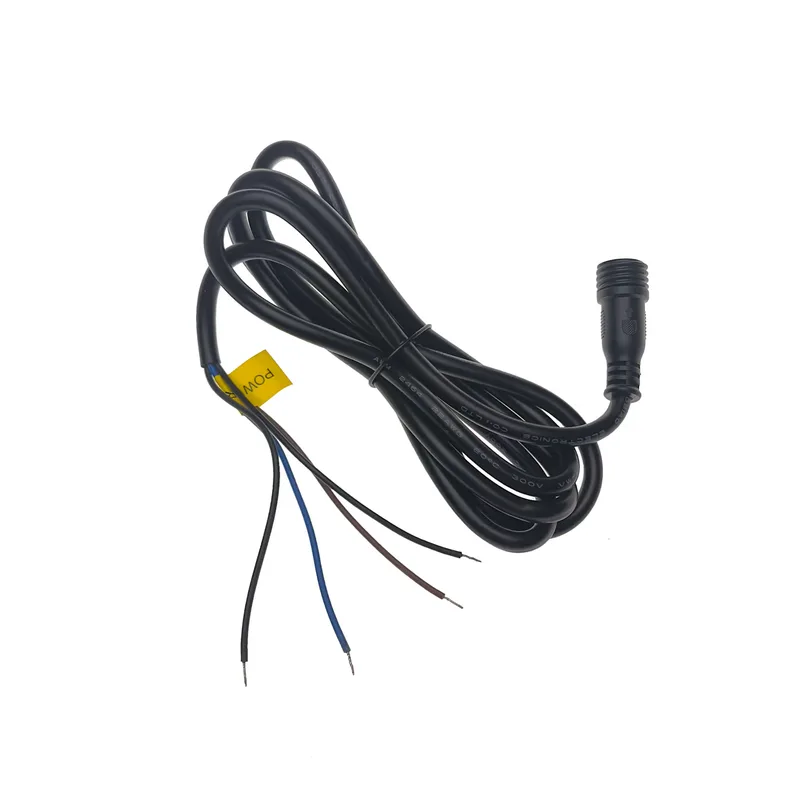

  • Power and alarm cable
  • User manual
