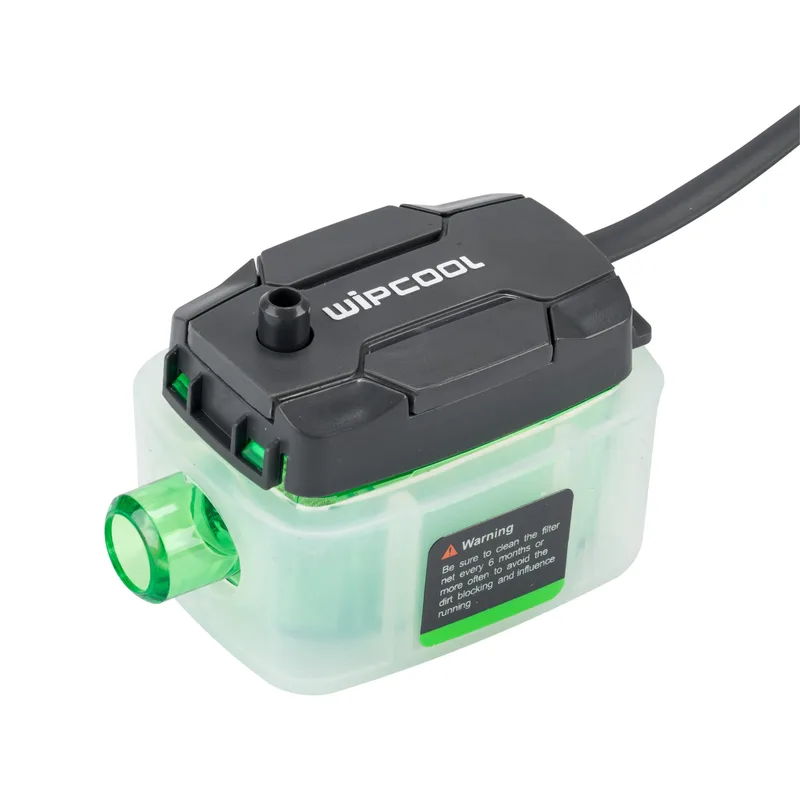

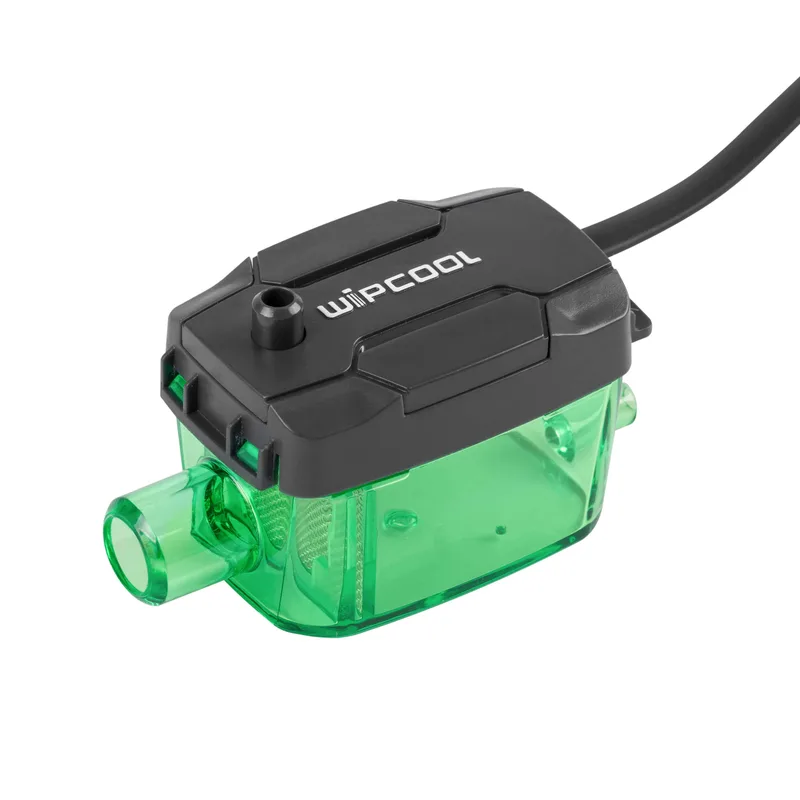

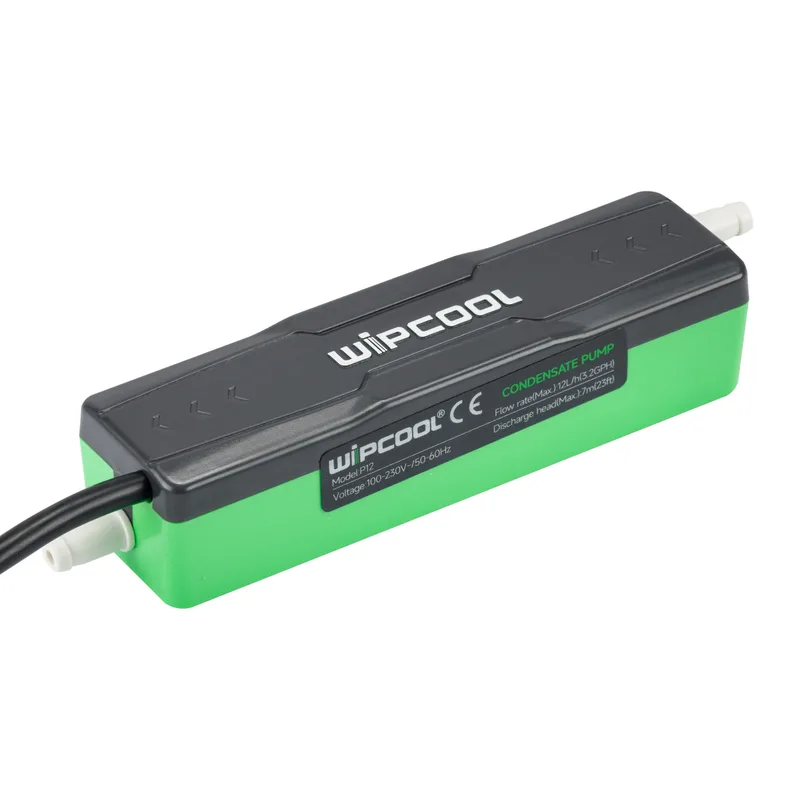

Wipcool P12 Condensate Pump

Slim condensate pump for installation inside split air conditioners, including ducted and cassette units, with a cooling capacity of up to 8.8 kW. Max. head up to 7 m.

  • SLIM slimline design
  • Horizontal or vertical mounting
  • NC/COM alarm line
  • Balanced motor
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
12l/h
Max. flow
7m
Max. head
do 8,8kW
Cooling capacity
19dB(A)
Noise level at 1 m
Net list price
Request a quote
Request a quote
Where to buy

The P12 is the slimmest mini condensate pump in the Wipcool range, designed for tight spaces. It is mainly installed inside wall-mounted split units and is also used in ducted and cassette units. It suits units with a cooling capacity below 8.8 kW.

Condensate from the air conditioner first flows into the float switch reservoir, which is connected to the pump by a tube. When the sensors in the reservoir detect water, the pump starts and lifts the condensate to a height of up to 7 m. The 6 × 9 mm outlet hose is not included.

Horizontal or vertical mounting
You can mount the pump horizontally, usually inside a wall-mounted unit, or vertically where space is limited.
NC/COM alarm line
The built-in safety switch responds to an alarm water level. When the NC/COM alarm line is connected to an air conditioner control system that supports this signal, the air conditioner is switched off at a high water level, which reduces the risk of condensate overflow.
Balanced motor and hook-and-loop mounting
The balanced motor reduces vibration, and the hook-and-loop pads hold the pump and float switch securely in place, damping vibration and operating noise.

In the box

  • P12 Condensate Pump
  • Float switch
    Body with filter, cover, cover guard and signal line
  • Inlet tube
    9 cm
  • Vent tube
    Ø6 mm, 3.5 cm
  • Connecting tube
    1.5 m
  • Cable ties
    4 pcs 30 cm, 2 pcs 10 cm
  • Connectors
    2 pcs, 6 mm
  • Hook-and-loop pads
    2 pcs, for mounting the pump and float switch
  • Rubber reducer
    25 × 16 mm
  • Rubber elbow connector
    16 mm
  • Power and alarm cable
