Home/Condensate Management/Mini Condensate Pumps/Wipcool P16 Mini Condensate Pump
Mini Condensate Pumps
P16

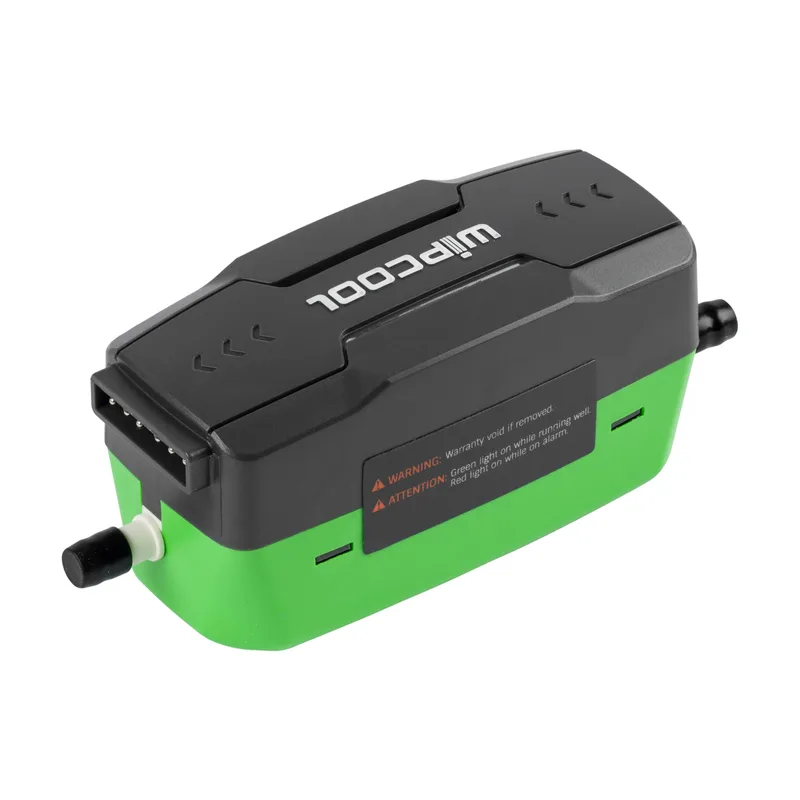

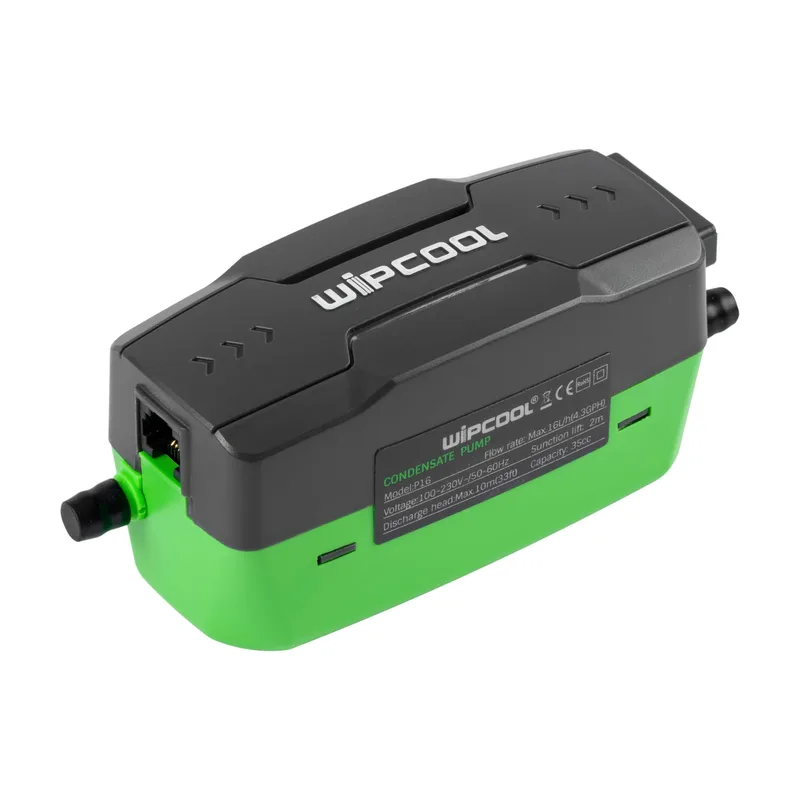

Wipcool P16 Mini Condensate Pump

Two-part mini condensate pump with a separate float switch for air conditioners with a cooling capacity of up to 8.8 kW, often used with ducted units. Head up to 10 m, flow rate up to 16 l/h.

  • Brushless motor
  • Separate float switch and pump
  • Horizontal or vertical installation
  • NC/COM/NO alarm line
  • 36-month warranty
  • Service by the distributor in the country of purchase
Key parameters
16l/h
Max. flow rate
10m
Max. head
up to 8.8kW
Air conditioner cooling capacity
19dB(A)
Sound level at 1 m
Net list price
78,86 €
Request a quote
Where to buy

The P16 is a two-part mini condensate pump: condensate flows from the drain pan into the float switch reservoir, and the pump, connected to it by a tube, pumps it to the drain. It lifts water to a height of up to 10 m, with a maximum flow rate of 16 l/h. The model is designed for air conditioners with a cooling capacity of up to 8.8 kW and is often used in ducted units.

The pump is driven by a brushless motor and has a sound level of 19 dB(A) at a distance of 1 m. It can be installed horizontally or vertically, for example above a suspended ceiling, behind a wall-mounted unit or in trunking. The built-in safety switch responds to an alarm water level; when the alarm line is connected to an air conditioner control system that supports this signal, the air conditioner is switched off, reducing the risk of condensate leakage.

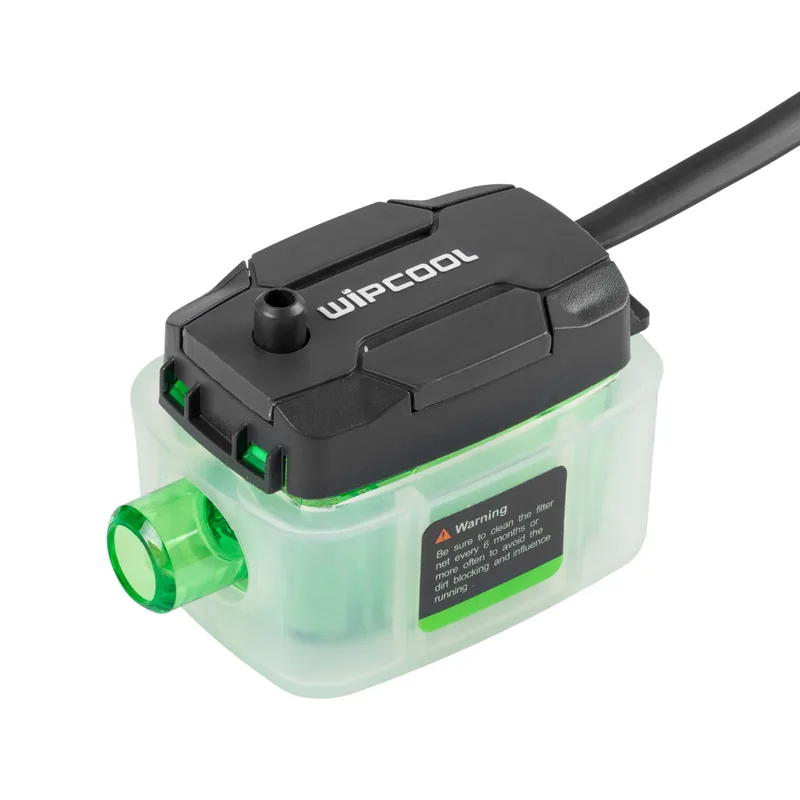

Separate float switch beside the drain pan
The float switch stays beside the drain pan, while the pump can operate separately, connected to it by a tube up to 1.5 m long.
NC or NO alarm line
The COM alarm line with an NC or NO output can be connected to the air conditioner's level switch or another alarm device.
Operating status shown by LEDs
The green LED lights up during operation, while the red LED signals an alarm water level, so the pump's status is visible on the housing.

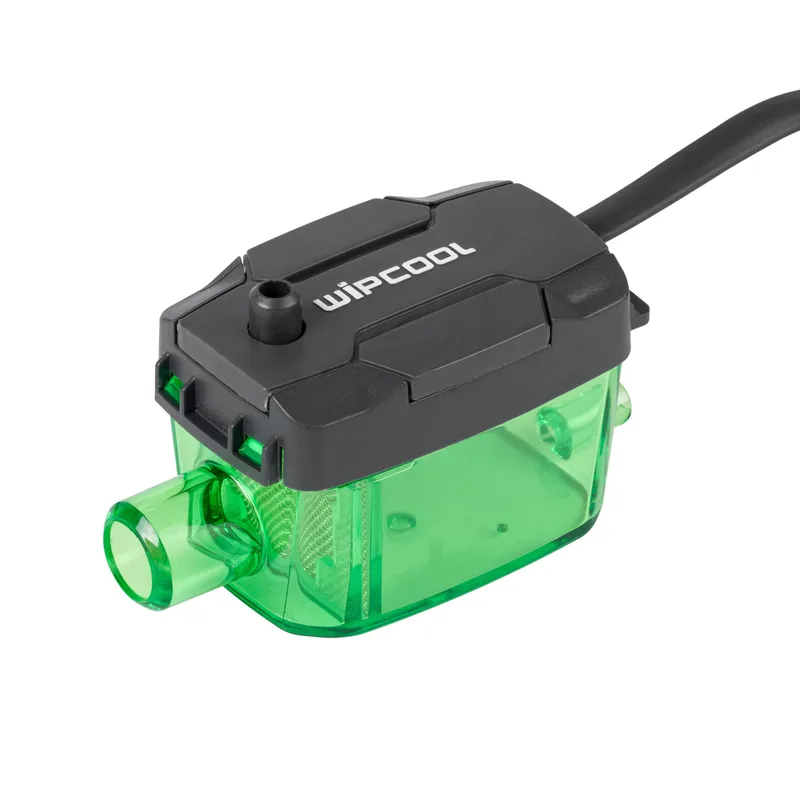

Removable float switch reservoir
Pressing the latch releases the float switch reservoir downwards, providing access to the mesh filter.

In the box

  • Cable ties
    4 pcs 30 cm and 2 pcs 10 cm
  • Connectors
    2 pcs, 6 mm
  • Self-adhesive hook-and-loop pads
    2 pcs, for mounting the pump and float switch
  • Rubber reducer
    25 × 16 mm
  • Rubber elbow connector
    16 mm
  • Vent tube
  • Rubber anti-condensation cover
  • Power and alarm cable
  • User manual
