Condensate Accessories
PTF-80

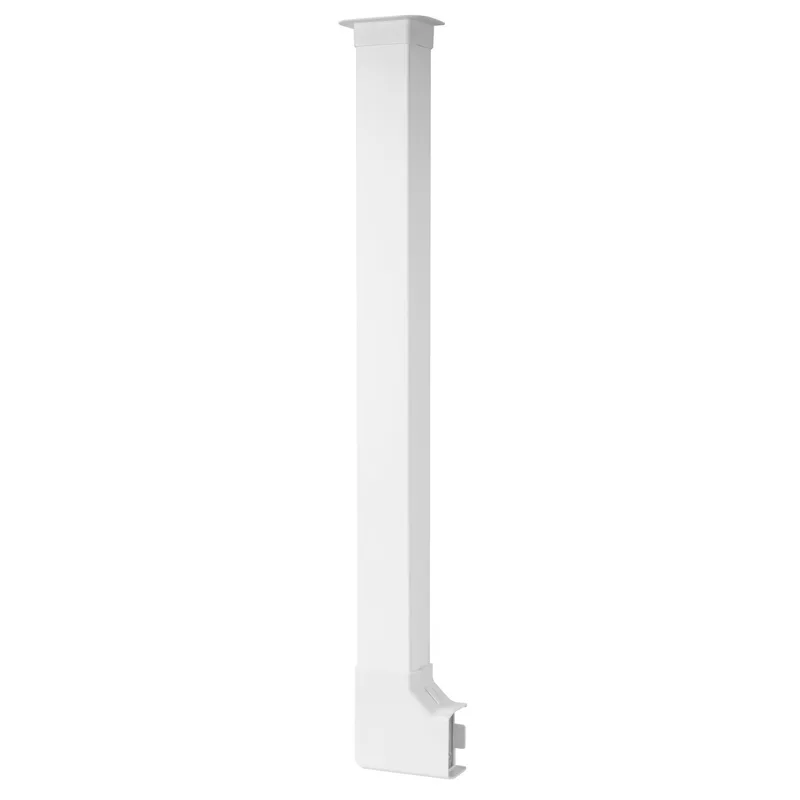

Wipcool PTF-80 Trunking Kit
Trunking kit for concealing pipework and cables at the indoor unit of a wall-mounted air conditioner, including with a mini condensate pump hidden inside (kit matched to the P12C). 80 × 60 mm trunking, 800 mm long.
- Removable bend cover
- Left- or right-hand installation
- Impact-resistant PVC
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
Key parameters
80 × 60mm
Trunking profile
800mm
Trunking length
40cm²
Trunking internal cross-section

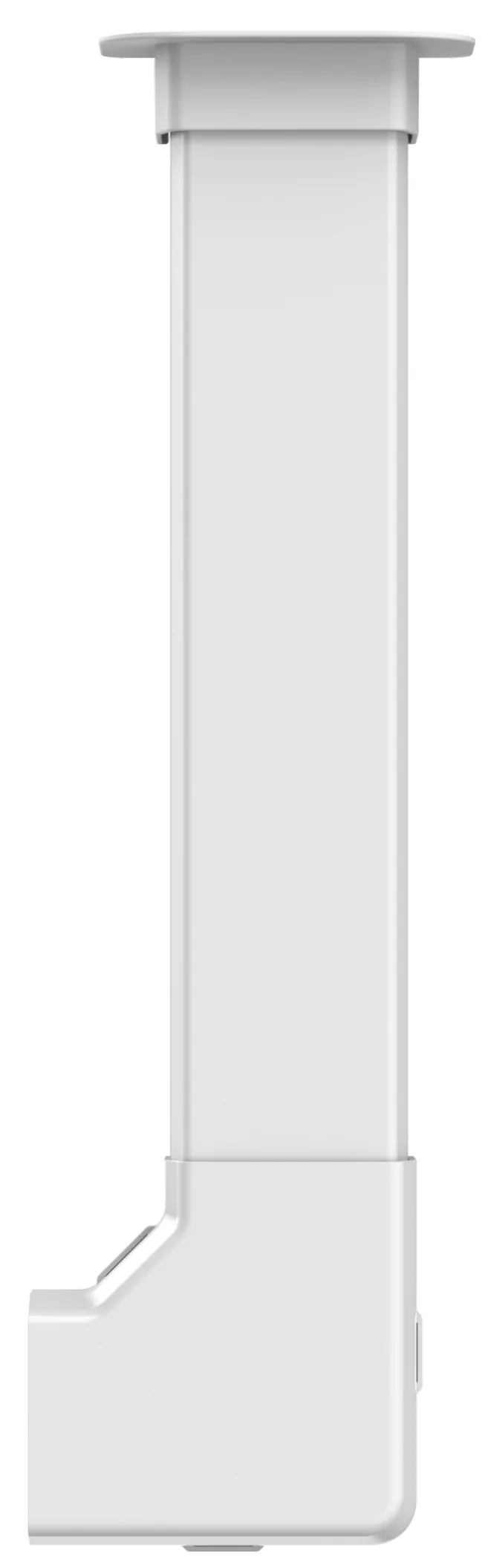

PTF-80 is a Wipcool trunking kit for routing and concealing pipework and cables at the indoor units of wall-mounted air conditioners. The kit includes a bend, an 800 mm trunking length and a wall cover plate. You can also discreetly fit a Wipcool mini condensate pump inside the trunking: the kit is matched to the P12C pump, and the P12, P22i, P16 and P32 also fit. The P12C pump together with the PTF-80 trunking makes up the P12CT kit.
All parts are made of white, reinforced, rigid, impact-resistant PVC.
Pump access without dismantling
With the bend cover removed, you can replace or service the pump without taking off the entire trunking.
Left- or right-hand installation
You can install the kit on the left or right side of the indoor unit, depending on the room layout.
In the box

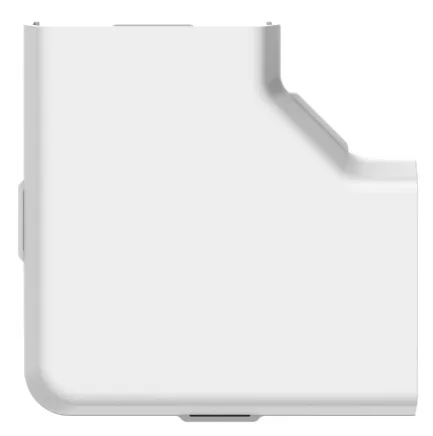

- BendWith removable cover, 132.4 × 132.4 mm

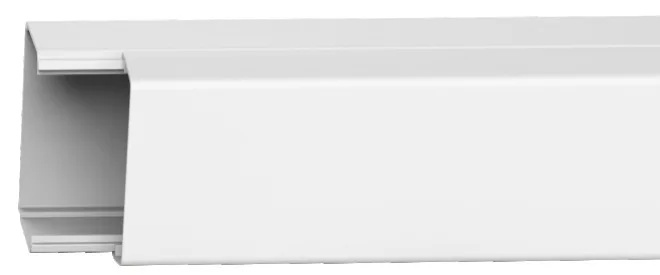

- TrunkingLength 800 mm, profile 80 × 60 mm

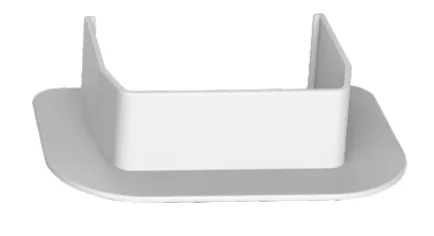

- Wall cover plateExternal dimensions 120.2 × 79.4 mm, internal 80.2 × 56.9 mm
Technical specifications
| Compatible mini condensate pumps | Wipcool P12C (dedicated), P12, P22i, P16, P32 |
| Trunking internal cross-section | 40 cm² |
| Trunking length | 800 mm |
| Temperature range | -20 to +60 °C |
| Bulk pack | 10 pcs |
Features and equipment
Bend with removable cover
800 mm trunking
Wall cover plate
White, reinforced, rigid, impact-resistant PVC
