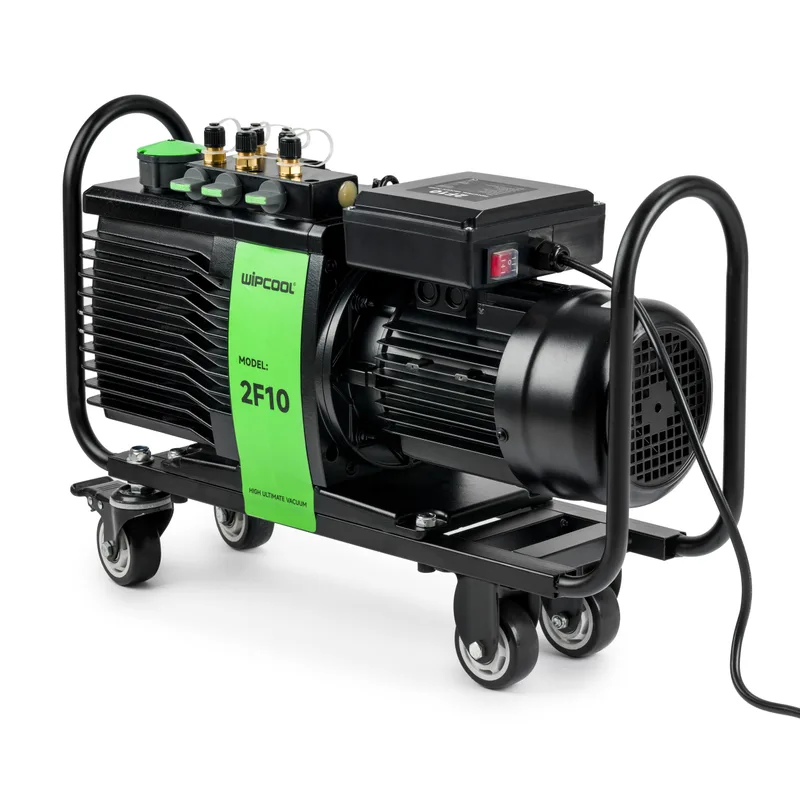

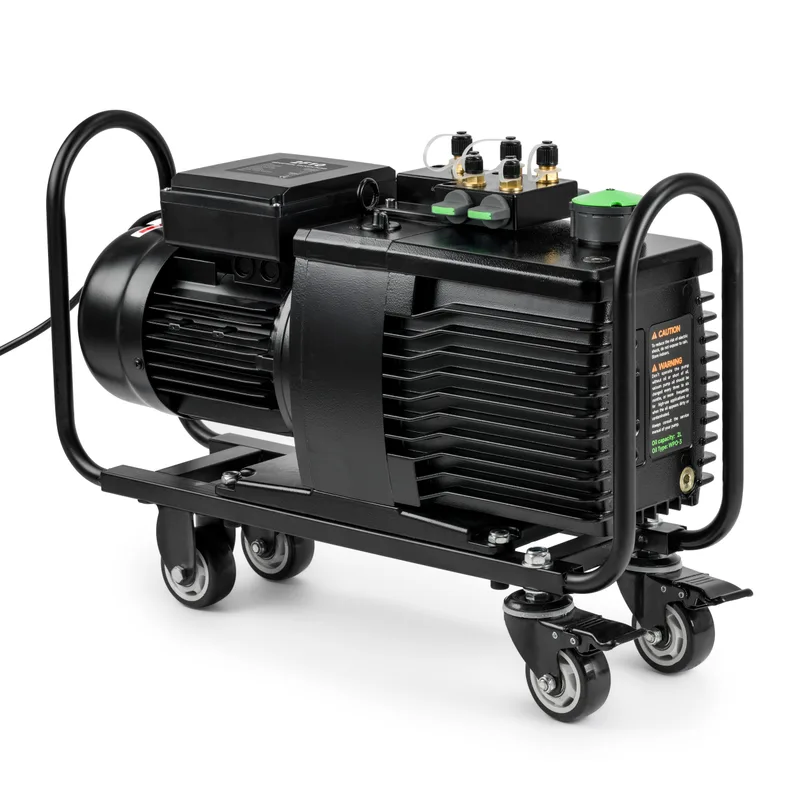

Wipcool 2F10 Industrial Vacuum Pump
Industrial two-stage oil-sealed vacuum pump for large HVAC systems, including ammonia systems. It delivers 566 l/min at 50 Hz and reaches 4 microns with the gas ballast valve closed.
- Oil-sealed
- Gas ballast valve
- 5 SAE ports
- Thermal protection
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
Key parameters
566l/min
Max. flow rate
4mikrony
Ultimate vacuum
3× 3/8" SAE i 2× 1/4" SAE
Connections
The Wipcool 2F10 is a two-stage oil-sealed vacuum pump designed for the installation and repair of large HVAC systems, including ammonia systems. On a 50 Hz supply it delivers 566 l/min and reaches a vacuum of 4 microns with the gas ballast valve closed. In addition to SAE ports for charging hoses, the pump has KF flange connections for connecting to a vacuum system.

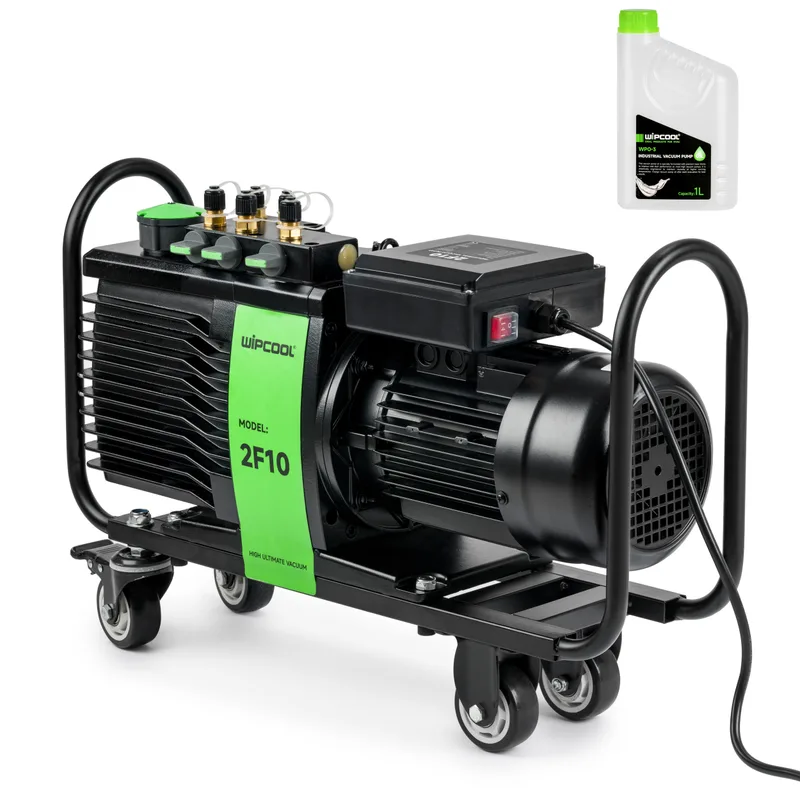

Note: Fill the pump with oil before first use.
Gas ballast valve for removing vapours
With the gas ballast valve open, you can pump small amounts of condensable vapours out of the system - with it closed, non-condensable gases.

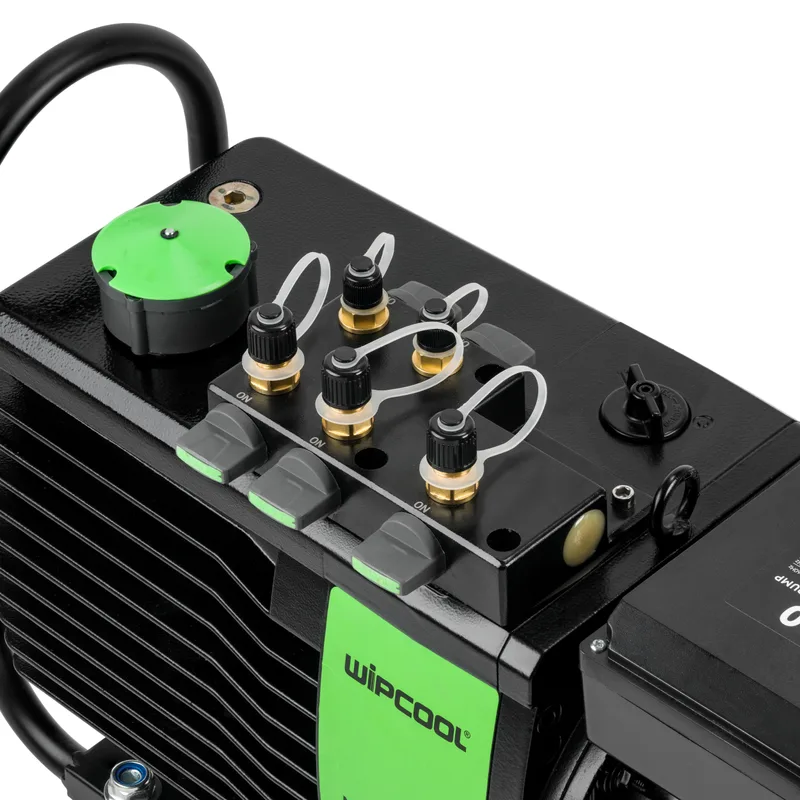

Five SAE ports
Three 3/8" SAE and two 1/4" SAE ports let you connect several charging hoses at the same time.
Oil condition visible in the sight glass
The sight glass lets you check the oil level and colour in the pump at any time.
Motor protected against overheating
Thermal overload protection built into the 1.1 kW motor protects it against overheating.
In the box
- 2F10 Vacuum Pump
- User manual
Technical specifications
| Power supply | 230 V |
| Ultimate vacuum | 4 mikrony bez balastu gazowego, 8 mikronów z balastem |
| Motor power | 1,1 kW |
| Max. flow | 566 l/min |
| Operating temperature | 8–40 °C |
| Storage temperature | od -20 do +60 °C |
| Minimum oil temperature for start-up | 5 °C |
| Net weight | 40 kg |
| Connections | 3× 3/8" SAE i 2× 1/4" SAE |
| Number of stages | Two-stage |
| Maximum pumping speed | 50 Hz: 566 l/min |
| Rotational speed (rpm) | 1,420 at 50 Hz and 1,700 at 60 Hz |
| Accessories | Trolley |
Features and equipment
Two-stage oil-sealed rotary vane pump
Gas ballast valve
Sight glass for oil level and condition
5 ports: 3× 3/8" SAE and 2× 1/4" SAE
KF flange connections: KF25 (KF40) inlet, KF25 outlet
Thermal protection built into the motor
Non-return valve
Filter mesh on the air inlet
Oil drain plug
CAUTION
This equipment must only be operated by qualified personnel. Read the user manual before first use.
