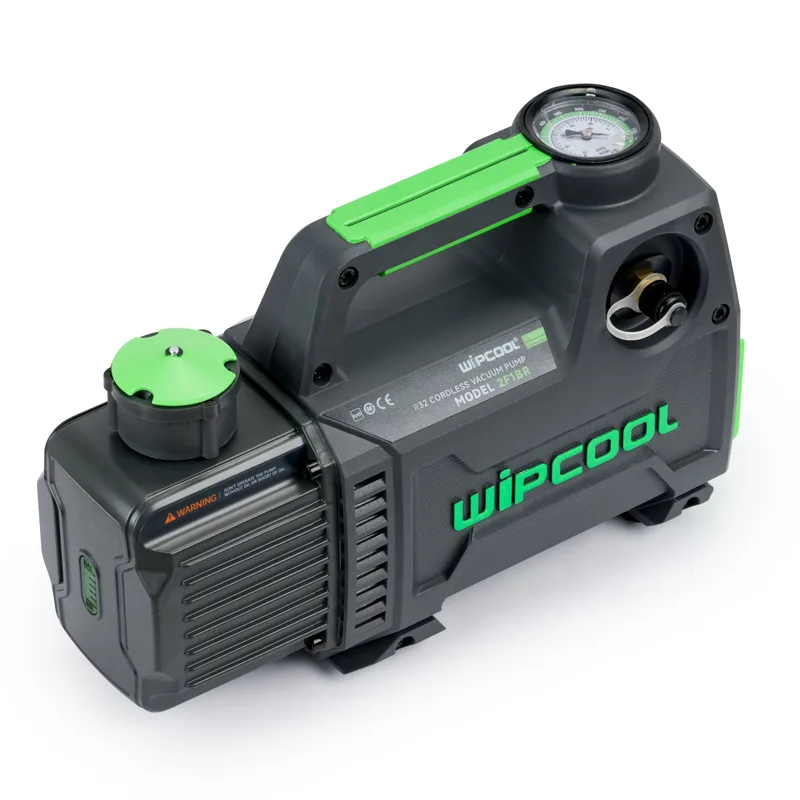

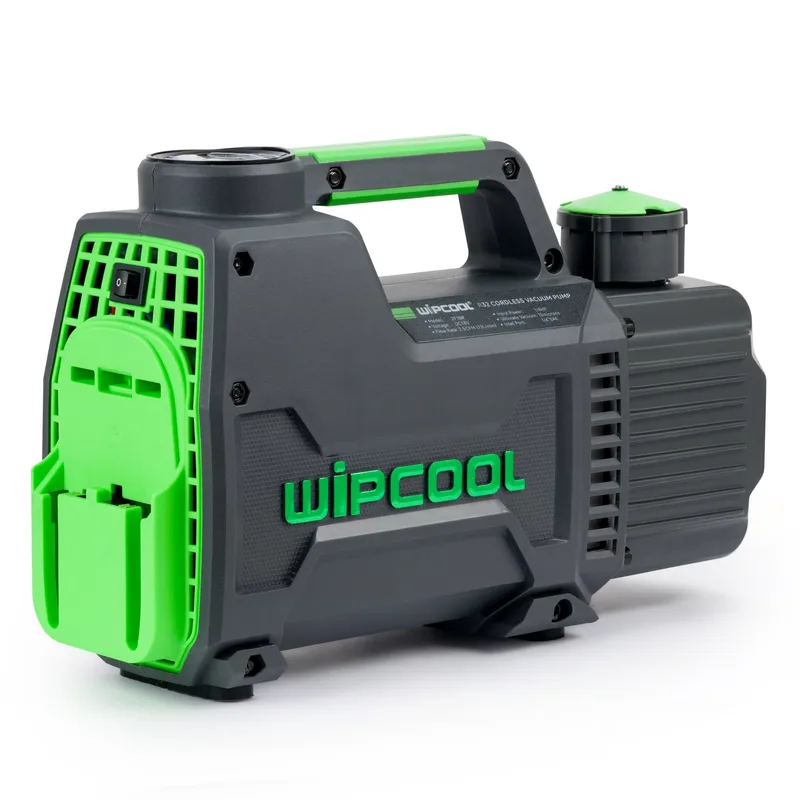

Wipcool 2F1BR Cordless Vacuum Pump
Two-stage 18 V cordless vacuum pump with a flow rate of 71 l/min, for refrigeration and air conditioning systems where no mains socket is available. It reaches a vacuum of 15 microns and takes an AEG 18 V battery without an adapter.
- 18 V battery
- Two-stage pump
- For A2L refrigerants
- Solenoid valve
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
The Wipcool 2F1BR is a two-stage vacuum pump powered by an 18 V battery, so it also works where there is no mains supply. It reaches a vacuum of 15 microns at a maximum flow rate of 71 l/min. It works with R410A and R134a as well as A2L (e.g. R32, R1234yf) and A2 refrigerants.
An AEG 18 V battery fits without an adapter. BA series adapters let you connect batteries from other brands, and the BC-18 converter lets you run the pump from the mains; both accessories are available separately. Battery not included.

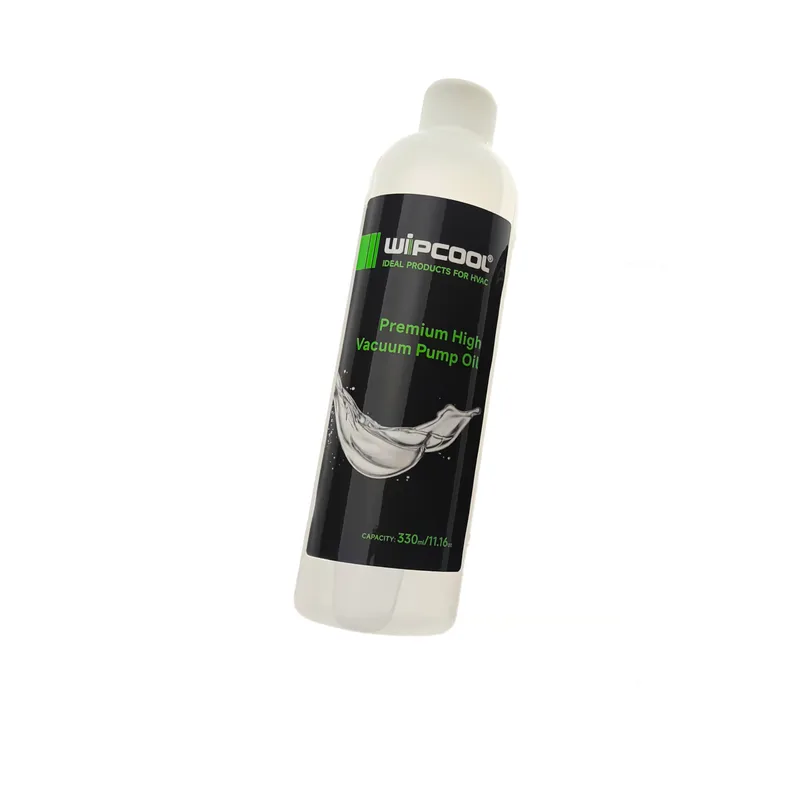

Note: You must fill the pump with oil before first use.
Technical specifications
| Power supply | 18 V (akumulator AEG) |
| Ultimate vacuum | 15 mikronów |
| Motor power | 180 W |
| Max. flow | 71 l/min |
| Operating temperature | 0–50 °C |
| Storage temperature | od -20 do +60 °C |
| Minimum oil temperature for start-up | 5 °C |
| Net weight | 4,5 kg |
| Dimensions (L × W × H, mm) | 309 × 113 × 198 |
| Number of stages | Two-stage |
| Oil capacity | 280 ml |
| Run time | 45 min (4.0 Ah Li-ion battery) |
| Charging time | 210 min (4.0 Ah Li-ion battery) |
| Batteries without adapter | AEG 18 V Li-ion |
| Bulk packaging | 3 pcs |
Features and equipment
This equipment must only be operated by qualified personnel. Read the user manual before first use.
