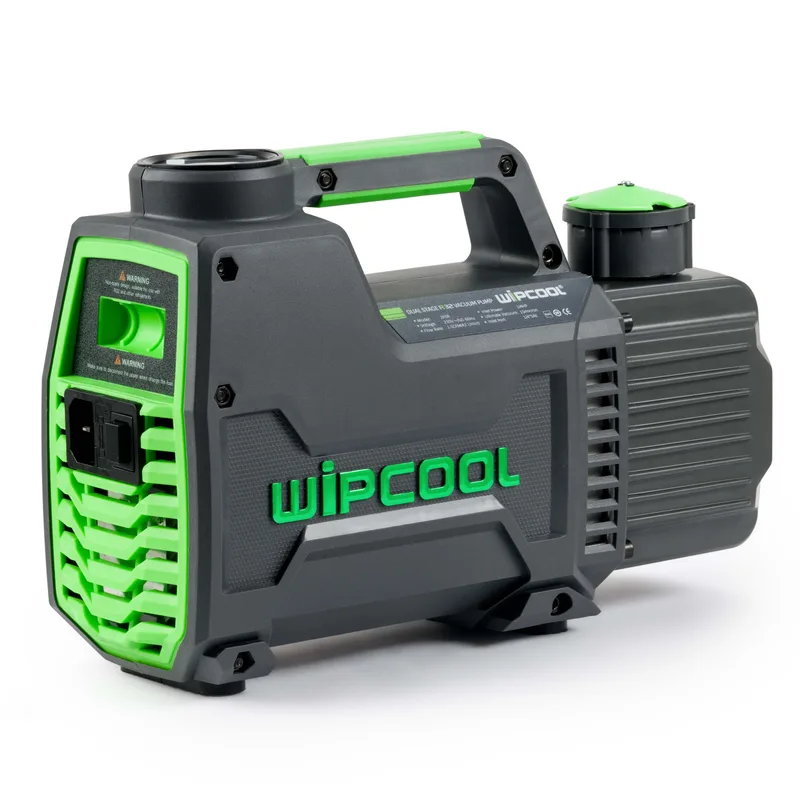

Wipcool 2F0R Vacuum Pump
Two-stage 230 V vacuum pump with a flow rate of 42 l/min for refrigeration and air conditioning systems using R410A, R134a and A2L refrigerants. It reaches a vacuum of 15 microns, and the 1/4" SAE connection fits a standard charging hose.
- Two-stage pump
- For A2L refrigerants
- Brushless DC motor
- Solenoid valve
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase

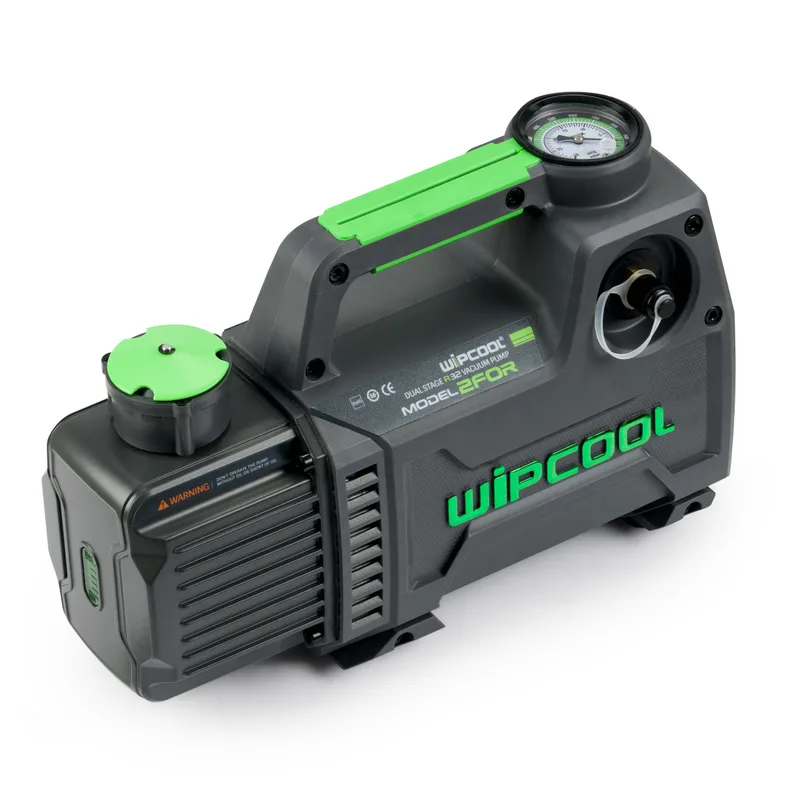

The Wipcool 2F0R is a two-stage vacuum pump powered from 230 V mains and driven by a brushless DC motor. It reaches a vacuum of 15 microns at a maximum flow rate of 42 l/min, and the 1/4" SAE connection fits a standard charging hose. It works with R410A and R134a as well as A2L (e.g. R32, R1234yf) and A2 refrigerants. The large sight glass shows the oil colour and level.

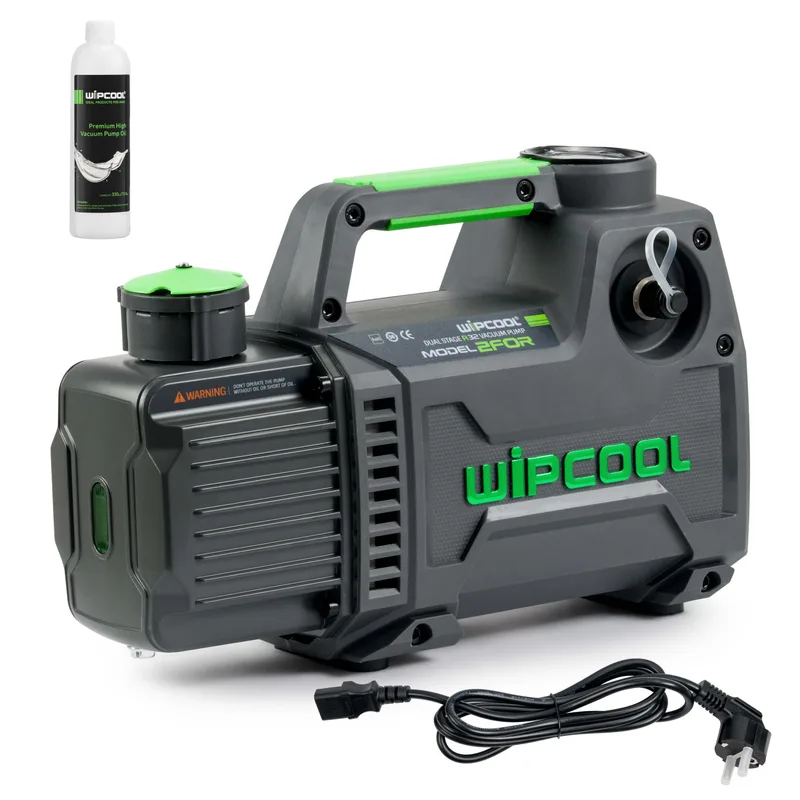

Note: Fill the pump with oil before first use.
Technical specifications
| Power supply | 230 V |
| Ultimate vacuum | 15 mikronów |
| Motor power | 180 W |
| Max. flow | 42 l/min |
| Operating temperature | 0–50 °C |
| Storage temperature | od -20 do +60 °C |
| Minimum oil temperature for start-up | 5 °C |
| Net weight | 4,2 kg |
| Dimensions (L × W × H, mm) | 309 × 113 × 198 |
| Connections | 1/4" SAE |
| Number of stages | Two-stage |
| Oil capacity | 280 ml |
| Carton quantity | 3 pcs |
Features and equipment
This equipment must only be operated by qualified personnel. Read the user manual before first use.
