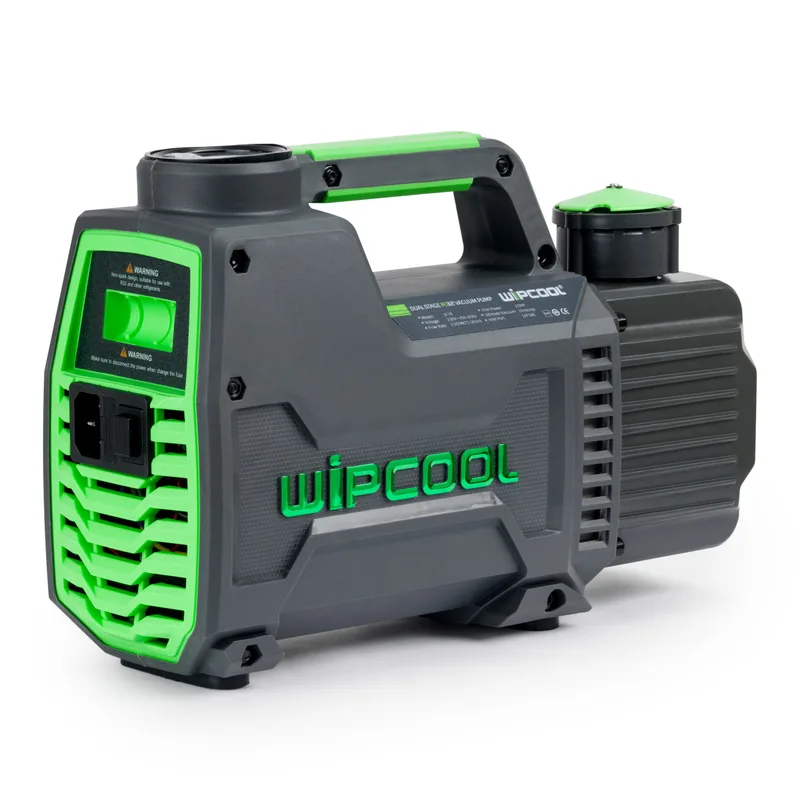

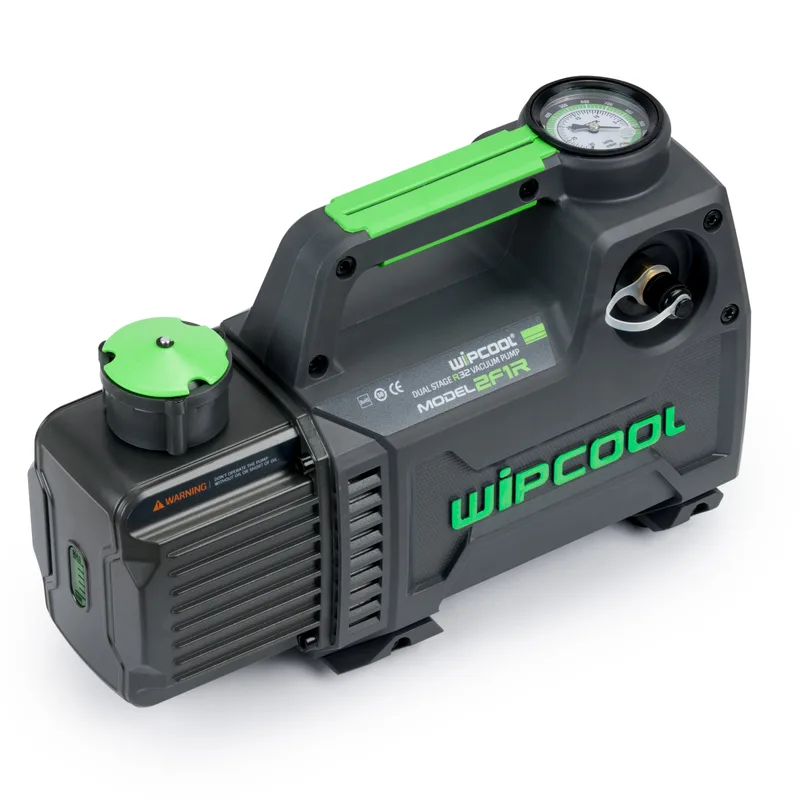

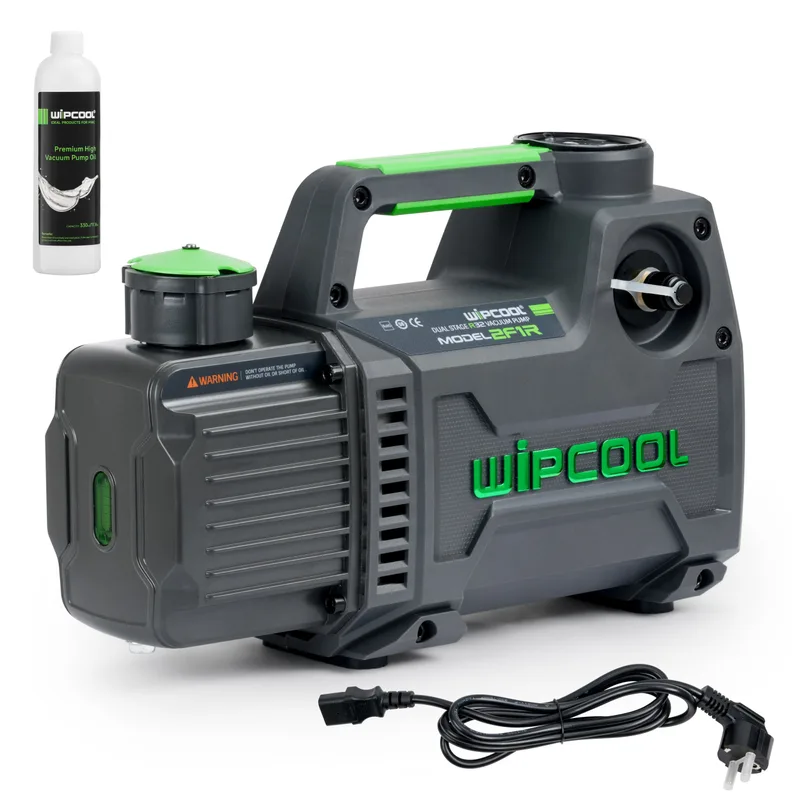

Wipcool 2F1R Vacuum Pump
Two-stage 230 V vacuum pump with a 71 l/min flow rate for refrigeration and air conditioning systems using R410A, R134a and A2L refrigerants. It reaches a vacuum of 15 microns and has a 1/4" SAE connection for a standard charging hose.
- Two-stage pump
- For A2L refrigerants
- Brushless DC motor
- Solenoid valve
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
The Wipcool 2F1R is a two-stage vacuum pump powered from a 230 V mains supply and driven by a brushless DC motor. It reaches a vacuum of 15 microns at a maximum flow rate of 71 l/min, and the 1/4" SAE connection fits a standard charging hose. It works with R410A and R134a as well as A2L (e.g. R32, R1234yf) and A2 refrigerants. The large sight glass shows the colour and level of the oil.
Note: Fill the pump with oil before first use.
Technical specifications
| Power supply | 230 V |
| Ultimate vacuum | 15 mikronów |
| Motor power | 180 W |
| Max. flow | 71 l/min |
| Operating temperature | 0–50 °C |
| Storage temperature | od -20 do +60 °C |
| Minimum oil temperature for start-up | 5 °C |
| Net weight | 4,2 kg |
| Dimensions (L × W × H, mm) | 309 × 113 × 198 |
| Connections | 1/4" SAE |
| Number of stages | Two-stage |
| Oil capacity | 280 ml |
| Carton quantity | 3 pcs |
Features and equipment
This equipment must only be operated by qualified personnel. Read the user manual before first use.
