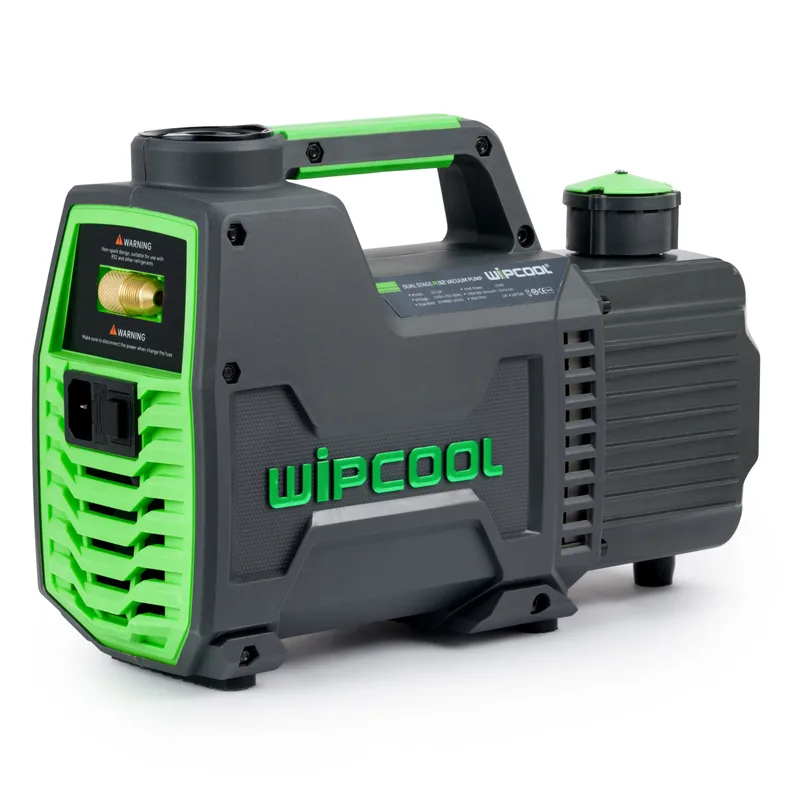

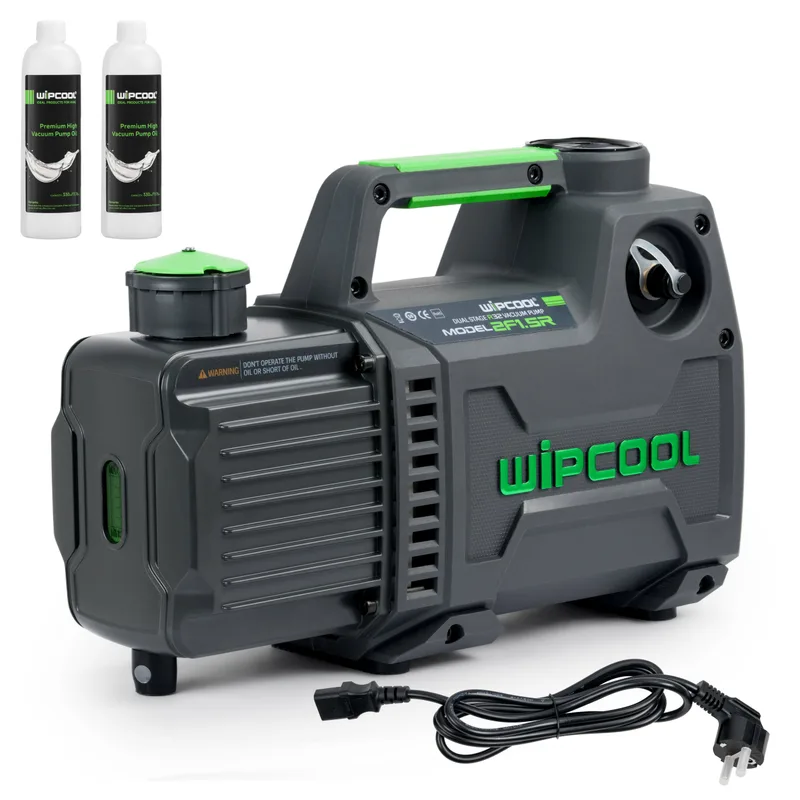

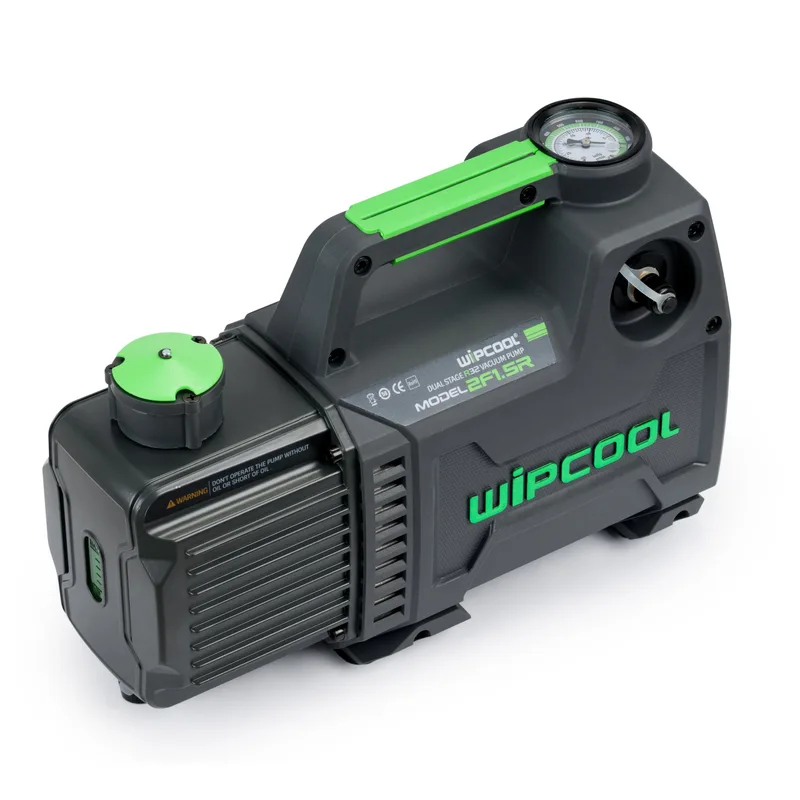

Wipcool 2F1.5R Vacuum Pump
Two-stage 230 V vacuum pump with a flow rate of 85 l/min for refrigeration and air conditioning systems using R410A, R134a and A2L refrigerants. It achieves a vacuum of 15 microns, and its 1/4" and 3/8" SAE connections accommodate service hoses of both sizes.
- Two-stage pump
- For A2L refrigerants
- Brushless DC motor
- Solenoid valve
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
The Wipcool 2F1.5R is a two-stage vacuum pump powered by a 230 V mains supply and driven by a brushless DC motor. It achieves a vacuum of 15 microns at a maximum flow rate of 85 l/min, and its 1/4" and 3/8" SAE connections allow service hoses of both sizes to be connected. It works with R410A and R134a refrigerants, as well as A2L (e.g. R32, R1234yf) and A2 refrigerants. The oil colour and level are visible through a large sight glass.
Note: Fill the pump with oil before first use.
Technical specifications
| Power supply | 230 V |
| Ultimate vacuum | 15 microns |
| Motor power | 250 W |
| Max. flow | 85 l/min |
| Operating temperature | 0–50 °C |
| Storage temperature | -20 to +60 °C |
| Minimum oil temperature for start-up | 5 °C |
| Net weight | 6,2 kg |
| Dimensions (L × W × H, mm) | 339 × 130 × 225 |
| Connections | 1/4" and 3/8" SAE |
| Number of stages | Two-stage |
| Oil capacity | 480 ml |
| Pack quantity | 3 pcs |
Features and equipment
This equipment must only be operated by qualified personnel. Read the user manual before first use.
