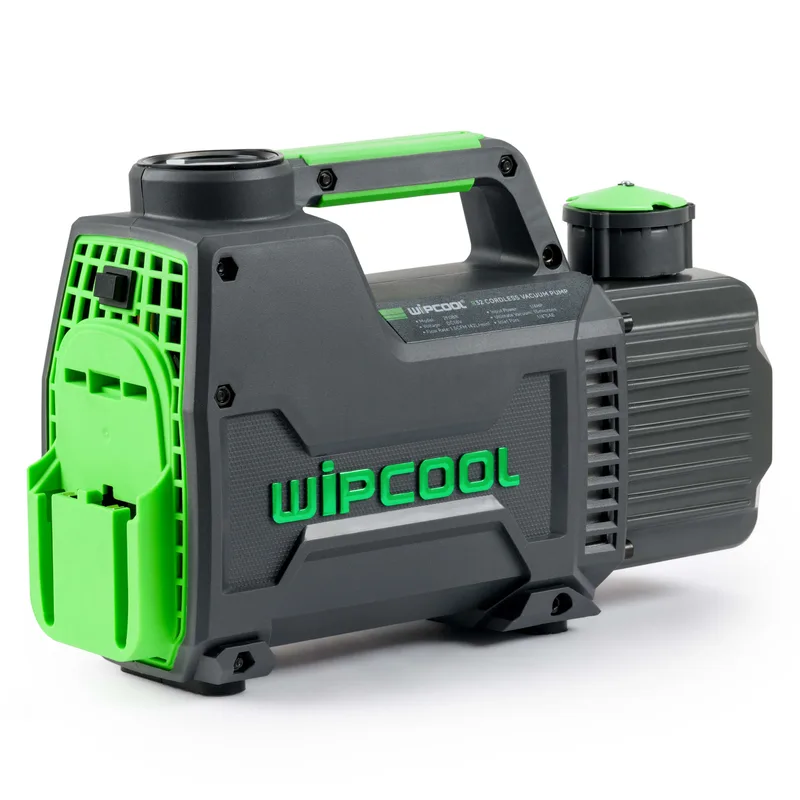

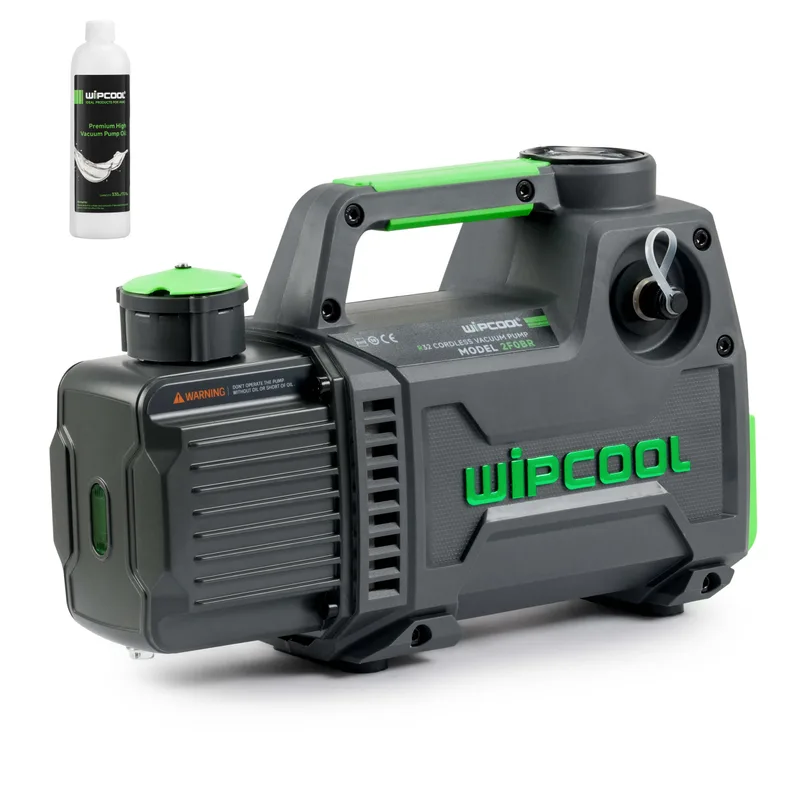

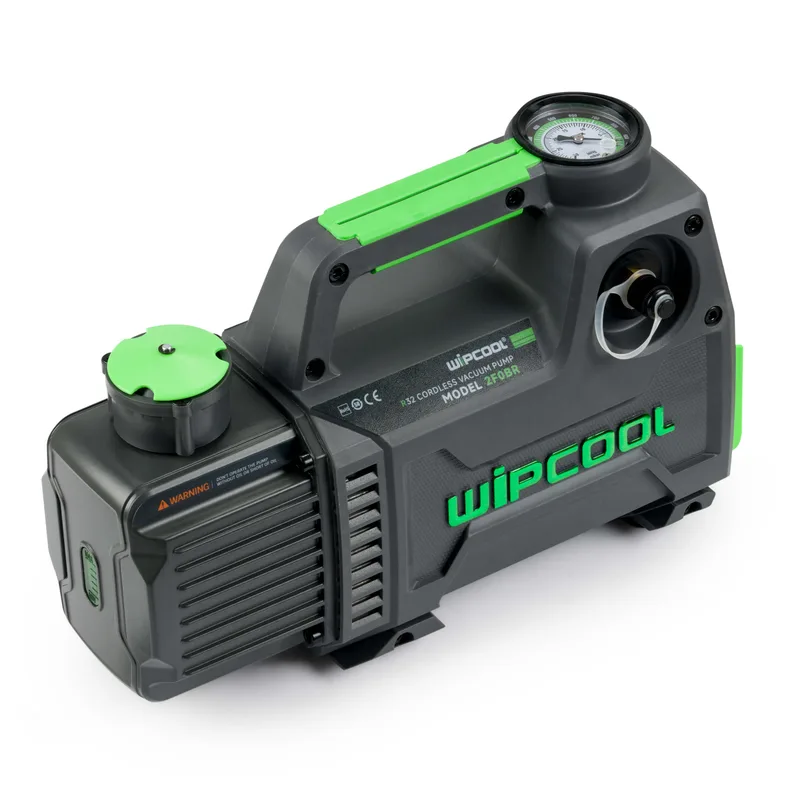

Wipcool 2F0BR Cordless Vacuum Pump
Two-stage 18 V cordless vacuum pump for refrigeration and air conditioning systems, including sites with no mains socket. Reaches an ultimate vacuum of 15 microns at a flow rate of 42 l/min.
- 18 V battery
- Two-stage pump
- For A2L refrigerants
- Solenoid valve
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
The Wipcool 2F0BR is a two-stage vacuum pump powered by an 18 V battery, so it also works where there is no mains supply. It reaches a vacuum of 15 microns at a maximum flow rate of 42 l/min. It is suitable for R410A and R134a as well as A2L refrigerants (e.g. R32, R1234yf) and A2 refrigerants.
AEG 18 V batteries fit without an adapter. BA series adapters allow you to use batteries from other brands, and the BC-18 converter lets you run the pump from the mains; both accessories are available separately. Battery not included.
Note: You must fill the pump with oil before first use.
Technical specifications
| Power supply | 18 V (akumulator AEG) |
| Ultimate vacuum | 15 mikronów |
| Motor power | 180 W |
| Max. flow | 42 l/min |
| Operating temperature | 0–50 °C |
| Storage temperature | od -20 do +60 °C |
| Minimum oil temperature for start-up | 5 °C |
| Net weight | 4,5 kg |
| Dimensions (L × W × H, mm) | 309 × 113 × 198 |
| Number of stages | Two-stage |
| Oil capacity | 280 ml |
| Run time | 45 min (4.0 Ah Li-ion battery) |
| Charging time | 210 min (4.0 Ah Li-ion battery) |
| Batteries without adapter | AEG 18 V Li-ion |
| Outer carton | 3 pcs |
Features and equipment
This equipment must only be operated by qualified personnel. Read the user manual before first use.
