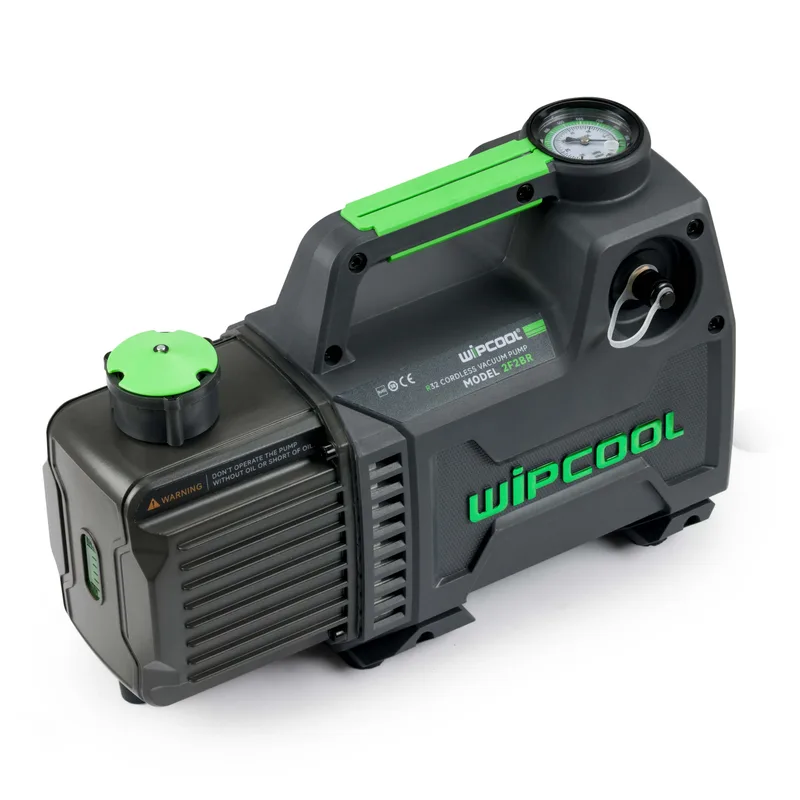

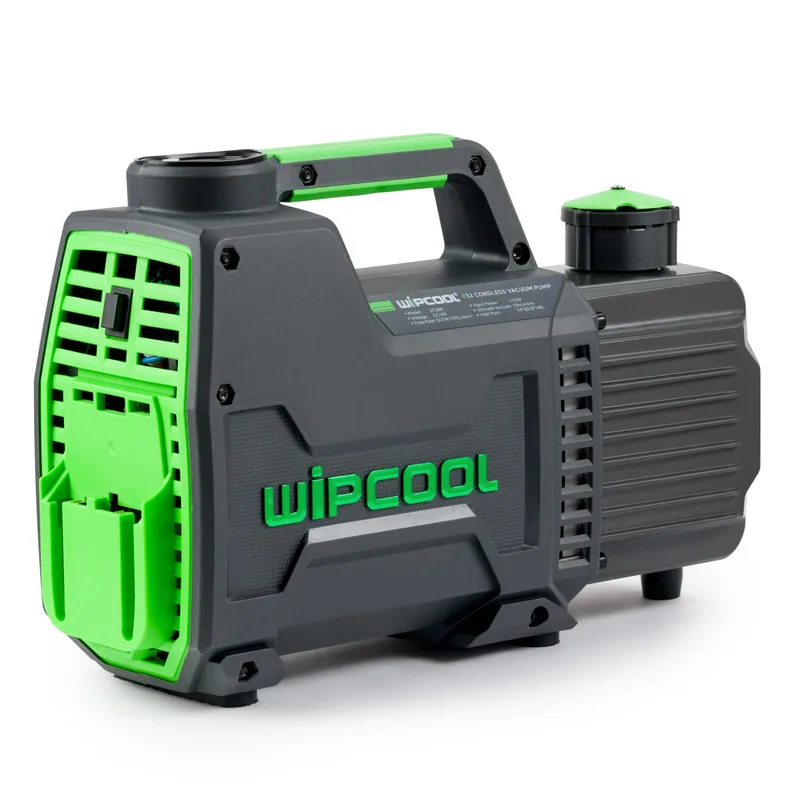

Wipcool 2F2BR Cordless Vacuum Pump

Two-stage vacuum pump powered by an 18 V battery, with a flow rate of 142 l/min, for systems using R410A, R134a and A2L refrigerants, including where no mains socket is available. Achieves a vacuum of 15 microns.

  • 18 V battery
  • For A2L refrigerants (R32)
  • Vacuum gauge on top of the housing
  • Solenoid valve
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
142l/min
Max. flow rate
15microns
Ultimate vacuum
18V
AEG battery
40min
Runtime (4.0 Ah battery)
Net list price
319,77 €
Request a quote
Where to buy

The 2F2BR is a two-stage F-series vacuum pump powered by an 18 V battery, so it does not need a mains socket to operate. It works with R410A and R134a refrigerants, as well as A2L (e.g. R32, R1234yf) and A2 refrigerants.

The pump achieves a vacuum of 15 microns and has a maximum flow rate of 142 l/min. It runs for approximately 40 min with a 4.0 Ah battery. AEG 18 V batteries fit without an adapter. Other brands of 18 V batteries can be connected using optional Wipcool adapters, and the optional BC-18P converter allows mains operation. The battery and adapter are not included.

Note: Fill the pump with oil before first use.

Work without a mains socket
An 18 V battery powers the pump even where mains power is difficult to access, such as when working outdoors.
Other brands of battery with an adapter
If you have 18 V batteries from Makita, Milwaukee or another brand on the Wipcool adapter list, you do not need to buy separate batteries for the pump.
Valve protects the system from oil
A built-in solenoid valve prevents oil from flowing back from the pump into the system being evacuated.
Protection against oil leaks
The patented design prevents oil from leaking out of the pump, helping to keep the work area clean.

Accessories

Wipcool BC-18P 200 W Battery Converter67,21 €net
Wipcool B4Ah Battery 18 V 4.0 AhRequest a quotenet
Wipcool 18 V 4.0 Ah Battery with Battery ChargerRequest a quotenet
Wipcool 18 V Battery ChargerRequest a quotenet
Wipcool BA-1 Battery Adapter for Bosch Professional 18 V Batteries16,05 €net
Wipcool BA-2 Battery Adapter for Makita 18 V Batteries16,05 €net
Wipcool BA-3 Battery Adapter for Panasonic 18 V Batteries16,05 €net
Wipcool BA-4 Battery Adapter for Milwaukee 18 V Batteries16,05 €net
Wipcool BA-5 Battery Adapter for DeWalt 18 V Batteries16,05 €net
Wipcool BA-6 Battery Adapter for Worx 18 V Batteries16,05 €net
Wipcool BA-9 Battery Adapter for Hilti 18 V Batteries16,05 €net
Wipcool BA-10 Battery Adapter for Hikoki 18 V Batteries16,05 €net
Wipcool BA-11 Battery Adapter for Parkside 20 V Batteries16,05 €net
Wipcool WPO-1 Vacuum Pump Oil (500 ml)7,44 €net
Wipcool WPO-2 Vacuum Pump Oil (1 l)11,56 €net
