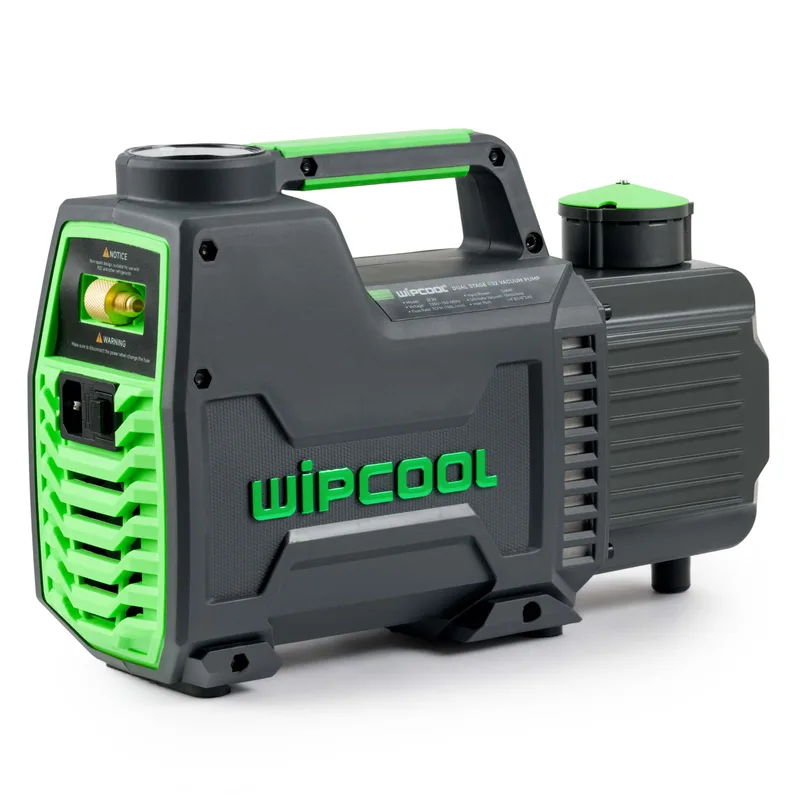

Wipcool 2F3R Vacuum Pump
Mains-powered two-stage vacuum pump with a flow rate of 198 l/min for refrigeration and air conditioning systems using R32 and other A2L refrigerants. It reaches a vacuum of 15 microns and is driven by a 550 W brushless motor.
- For A2L refrigerants (R32)
- Spark-free design
- Brushless motor
- Vacuum gauge on top of the housing
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
Key parameters
198l/min
Max. flow rate
15mikronów
Ultimate vacuum
1/4" i 3/8" SAE
Connections
The 2F3R is a mains-powered two-stage vacuum pump from the F series. It works with R410A and R134a as well as A2L (e.g. R32, R1234yf) and A2 refrigerants.
The pump reaches a vacuum of 15 microns and has a maximum flow rate of 198 l/min. It is driven by a 550 W brushless motor with high starting torque. The 1/4" and 3/8" SAE connections fit service hoses of both sizes.

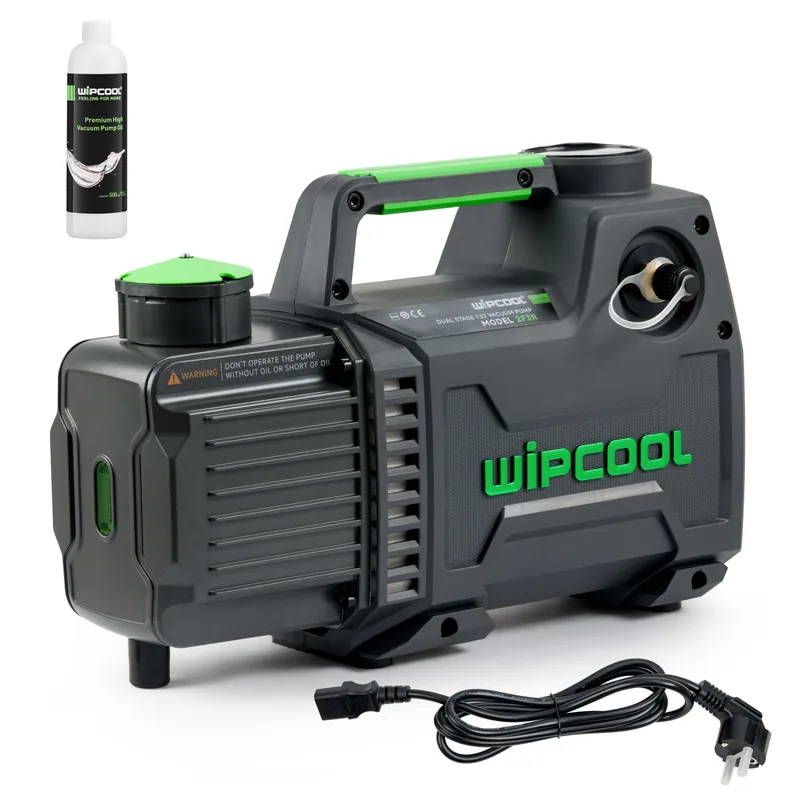

Note: Fill the pump with oil before first use.
Oil stays in the pump when it lies on its side
The patented design prevents oil leakage if the pump tips over onto its side during operation or transport.
Read the vacuum without bending down

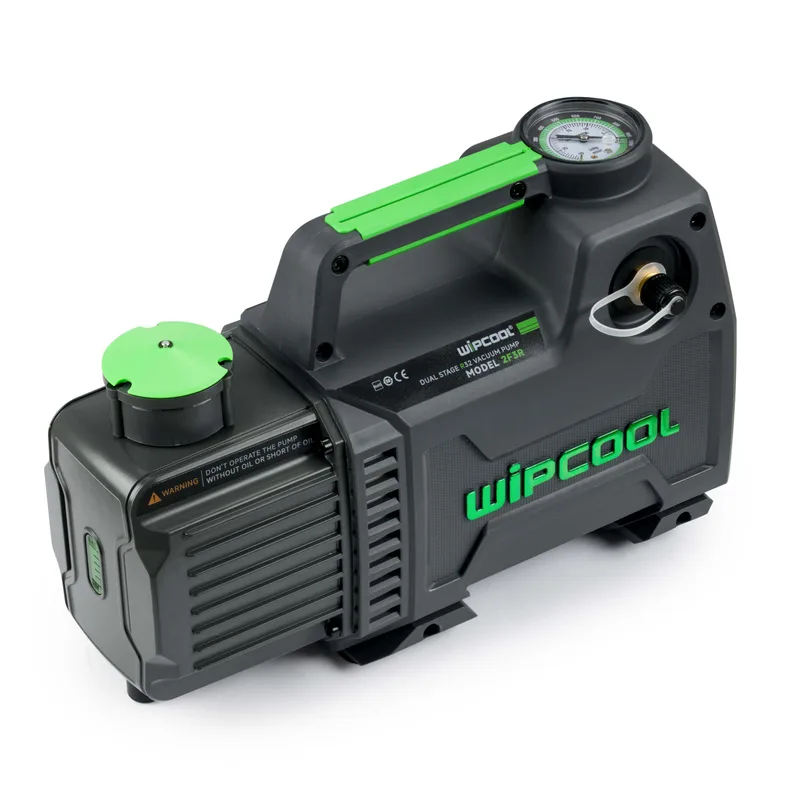

The vacuum gauge on top of the housing lets you read the vacuum level without leaning over the pump.
Valve blocks backflow
The built-in solenoid valve prevents backflow from the pump into the system being evacuated.
Oil condition visible in the sight glass
The large sight glass shows the colour and level of the oil, so you can check the oil condition at any time.
Technical specifications
| Power supply | 230 V |
| Ultimate vacuum | 15 mikronów |
| Motor power | 550 W |
| Max. flow | 198 l/min |
| Operating temperature | 0–50 °C |
| Storage temperature | od -20 do +60 °C |
| Minimum oil temperature for start-up | 5 °C |
| Net weight | 9,8 kg |
| Dimensions (L × W × H, mm) | 365 × 147 × 242 |
| Connections | 1/4" i 3/8" SAE |
| Number of stages | Two-stage |
| Oil capacity | 520 ml |
| Carton quantity | 2 pcs |
Features and equipment
Two-stage pump
Spark-free design
550 W brushless motor with high starting torque
Built-in solenoid valve preventing backflow into the system
Vacuum gauge on top of the housing
Patented oil leak protection
Reinforced aluminium alloy oil reservoir, resistant to chemical corrosion
Exhaust that reduces oil mist discharge
Large sight glass for oil level and colour
Oil drain plug under the reservoir
1/4" and 3/8" SAE connections
CAUTION
This equipment must only be operated by qualified personnel. Read the user manual before first use.
Documents in: EN
