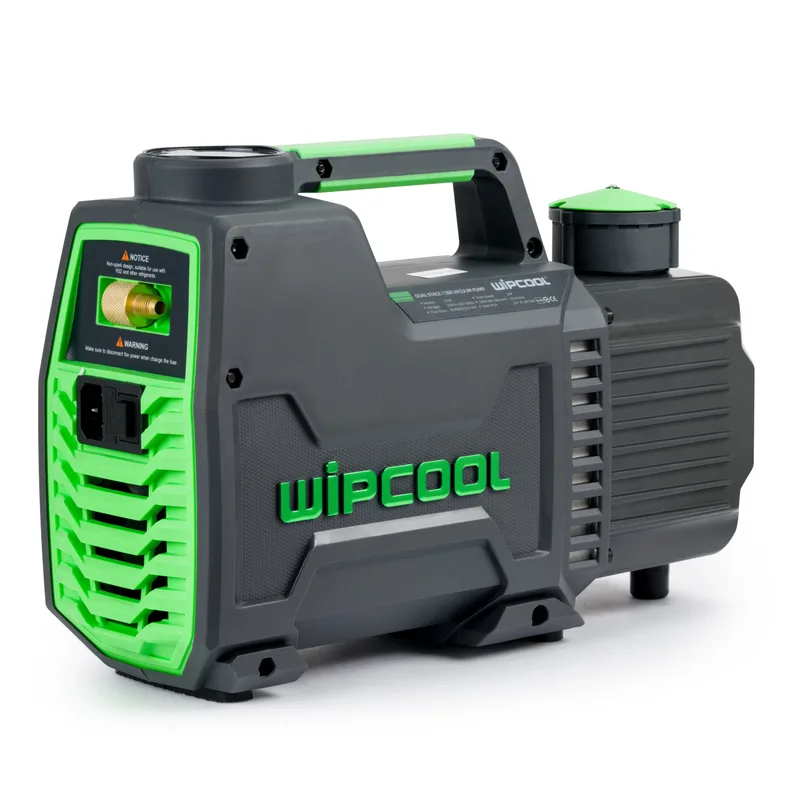

Wipcool 2F4R Vacuum Pump

Mains-powered two-stage vacuum pump with a flow rate of 255 l/min for refrigeration and air conditioning systems using R32 and other A2L refrigerants. It reaches a vacuum of 15 microns and is driven by a 750 W brushless motor.

  • For A2L refrigerants (R32)
  • Non-sparking design
  • Brushless motor
  • Vacuum gauge on top of the housing
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
255l/min
Max. flow rate
15microns
Ultimate vacuum
1/4" and 3/8" SAE
Connections
Net list price
365,35 €
Request a quote
Where to buy

2F4R is a mains-powered two-stage vacuum pump from the F series. It works with R410A and R134a refrigerants, as well as A2L (e.g. R32, R1234yf) and A2 refrigerants.

The pump reaches a vacuum of 15 microns and has a maximum flow rate of 255 l/min. It is driven by a 750 W brushless motor with high starting torque. The 1/4" and 3/8" SAE connections fit service hoses of both sizes.

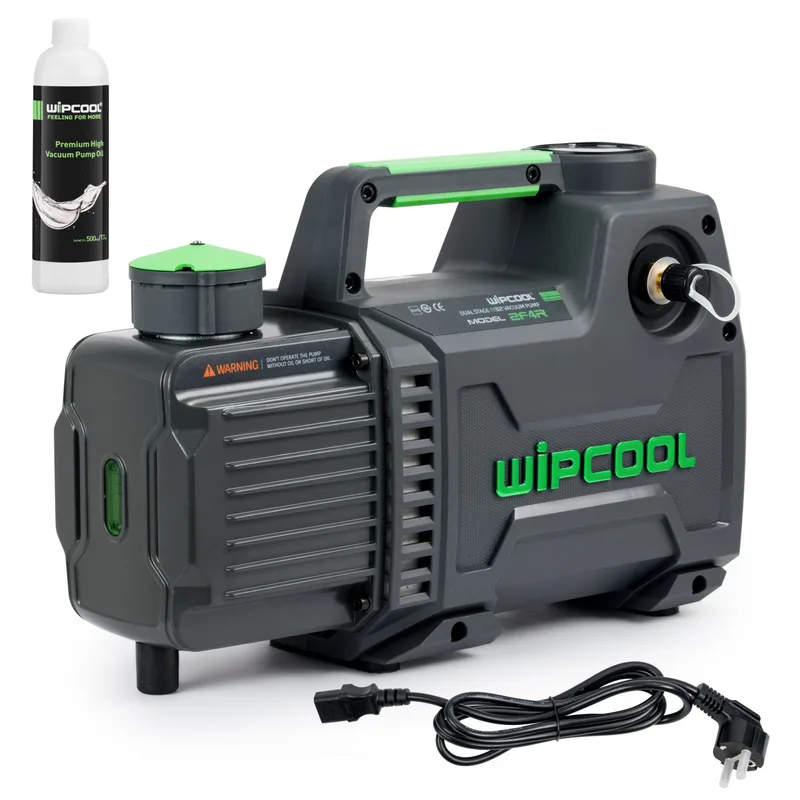

Note: Fill the pump with oil before first use.

Oil stays in the pump when it lies on its side
The patented design prevents oil from leaking if the pump tips onto its side during operation or transport.

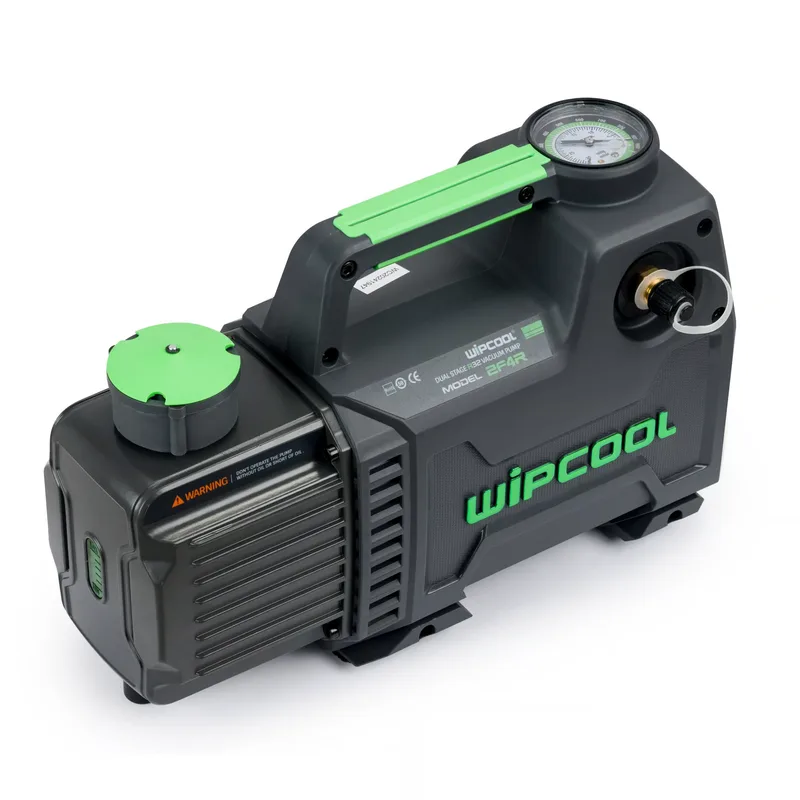

Read the vacuum level without bending down
The vacuum gauge on top of the housing lets you read the vacuum level without bending over the pump.
Valve prevents backflow
A built-in solenoid valve prevents backflow from the pump into the system being evacuated.
Oil condition visible through the sight glass
The large sight glass shows the oil colour and level, so you can check its condition at any time.
