Vacuum Pumps
2F5R

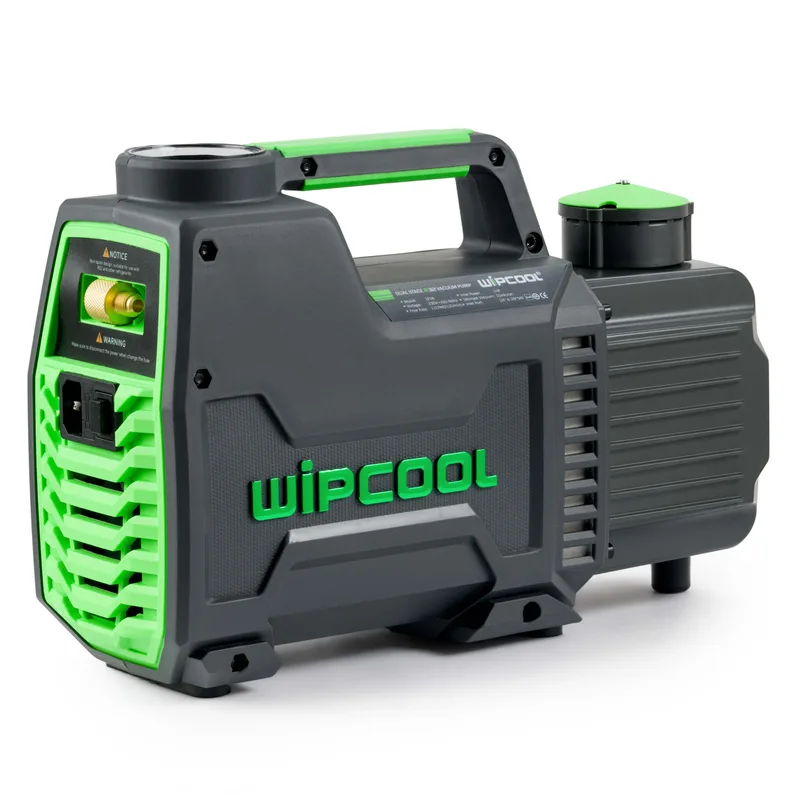

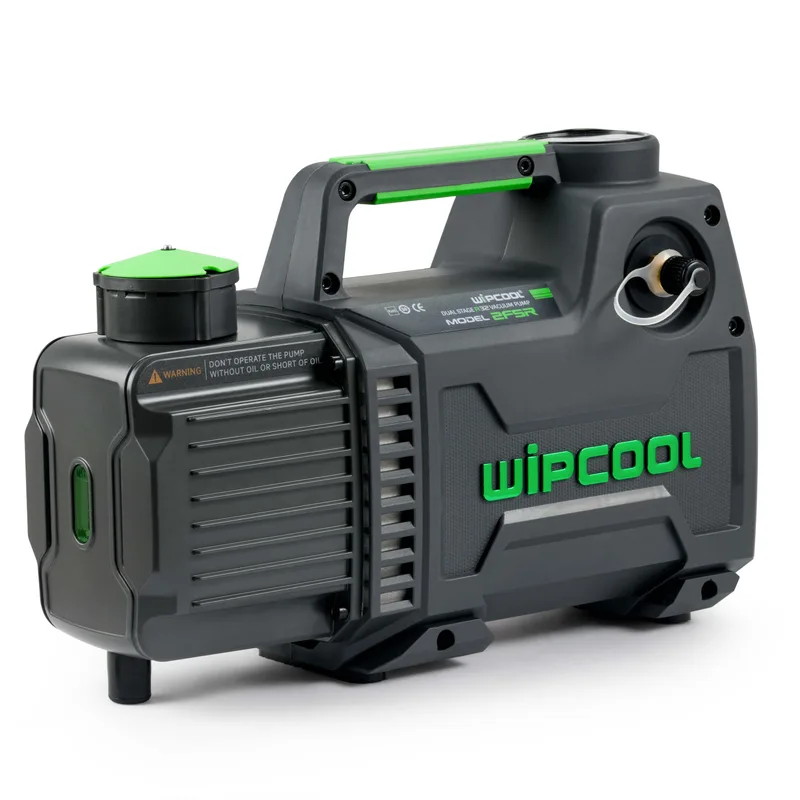

Wipcool 2F5R Vacuum Pump
Mains-powered two-stage vacuum pump with a 312 l/min flow rate for refrigeration and air conditioning systems using R32 and other A2L refrigerants. It reaches a vacuum of 15 microns and is driven by a 750 W brushless motor.
- For A2L refrigerants (R32)
- Spark-free design
- Brushless motor
- Vacuum gauge on top of the housing
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
Key parameters
312l/min
Max. flow rate
15mikronów
Ultimate vacuum
1/4" i 3/8" SAE
Connections
The 2F5R is a mains-powered two-stage vacuum pump from the F series. It works with R410A and R134a as well as A2L (e.g. R32, R1234yf) and A2 refrigerants.
The pump reaches a vacuum of 15 microns and has a maximum flow rate of 312 l/min. It is driven by a 750 W brushless motor with high starting torque. The 1/4" and 3/8" SAE connections fit charging hoses of both sizes.
Note: Fill the pump with oil before first use.
Oil stays in the pump when it is on its side
The patented design prevents oil leaks if the pump tips over onto its side during operation or transport.
Read the vacuum without bending down

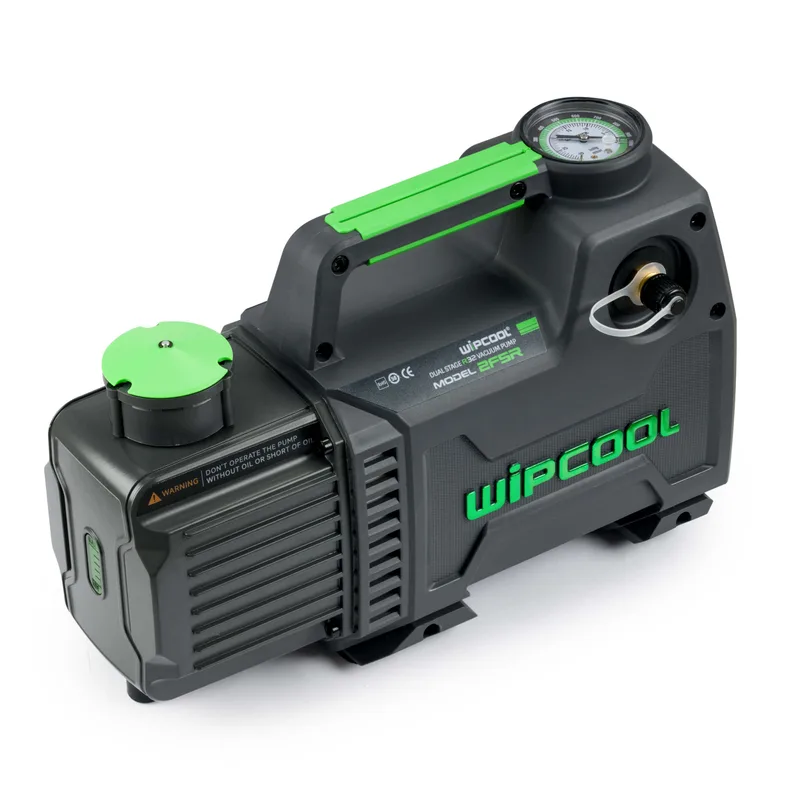

The vacuum gauge on top of the housing lets you read the vacuum level without leaning over the pump.
Valve blocks backflow
The built-in solenoid valve prevents backflow from the pump into the system being evacuated.
Oil condition visible in the sight glass
The large sight glass shows the colour and level of the oil, so you can check the oil condition at any time.
Technical specifications
| Power supply | 230 V |
| Ultimate vacuum | 15 mikronów |
| Motor power | 750 W |
| Max. flow | 312 l/min |
| Operating temperature | 0–50 °C |
| Storage temperature | od -20 do +60 °C |
| Minimum oil temperature for start-up | 5 °C |
| Net weight | 10,2 kg |
| Dimensions (L × W × H, mm) | 365 × 147 × 242 |
| Connections | 1/4" i 3/8" SAE |
| Number of stages | Two-stage |
| Oil capacity | 480 ml |
| Carton quantity | 2 pcs |
Features and equipment
Two-stage pump
Spark-free design
750 W brushless motor with high starting torque
Built-in solenoid valve prevents backflow into the system
Vacuum gauge on top of the housing
Patented oil leak protection
Reinforced aluminium alloy oil reservoir, resistant to chemical corrosion
Exhaust that limits oil mist discharge
Large sight glass for oil level and colour
Oil drain plug under the reservoir
1/4" and 3/8" SAE connections
CAUTION
This equipment must only be operated by qualified personnel. Read the user manual before first use.
Documents in: EN
