Measuring Instruments
ADA30

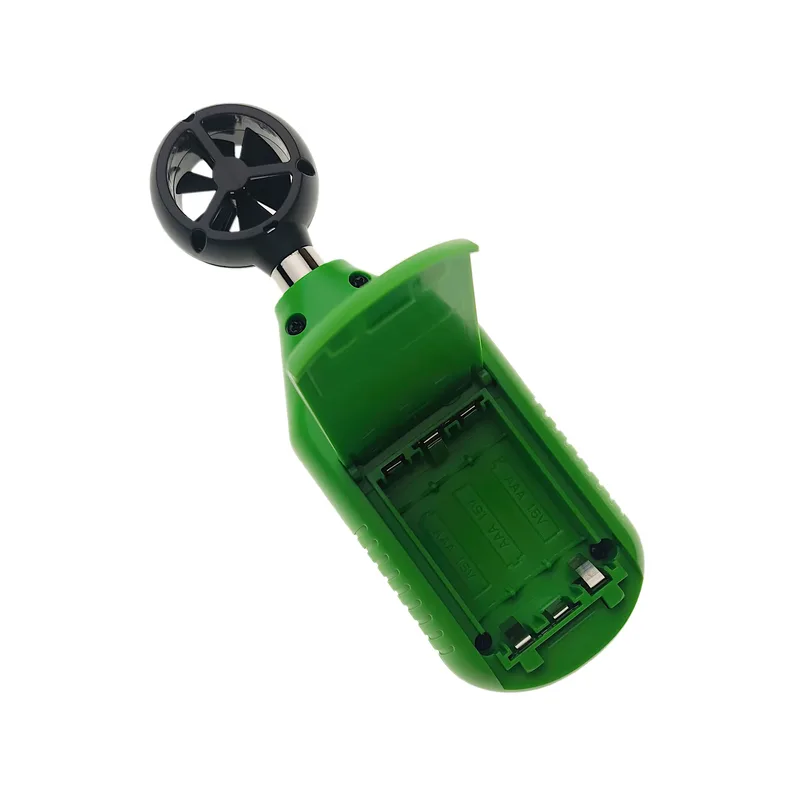

Wipcool ADA30 Anemometer
Miniature vane anemometer for measuring air velocity in the 0–30 m/s range and air temperature in ventilation systems. Both readings are shown simultaneously on the backlit LCD display.
- Velocity 0–30 m/s
- Air temperature
- MAX/AVG and HOLD
- Backlit LCD display
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
Key parameters
0–30m/s
Air velocity range
0,1m/s
Velocity resolution
od -10 do +50°C
Temperature measurement range
The ADA30 is a miniature vane anemometer. It measures air velocity in the 0–30 m/s range with a resolution of 0.1 m/s, while an NTC sensor measures temperature from -10 to +50 °C. Velocity can be read in m/s, km/h, ft/min, knots or mph.
Velocity and temperature on one display
The display shows both readings simultaneously, so you do not need to switch measurement mode to read the temperature.
Maximum or average value
In MAX mode the meter holds the highest recorded value on the display, and in AVG mode it shows the average value of the measurement.
In the box
- ADA30 anemometer
- User manual
Technical specifications
| Power supply | 3 baterie alkaliczne AAA 1,5 V |
| Temperature measurement | -10 to +50 °C (±2 °C) |
| Bulk packaging | 40 pcs |
| Velocity reference ranges | 1.4–108 km/h (standard range 0–30 m/s) |
Features and equipment
Velocity units: m/s, km/h, ft/min, knots, mph
Temperature units: °C, °F
MAX mode - highest recorded value
AVG mode - average value
HOLD reading function
Display backlight switched on with a button
Beaufort scale indication 0–12 (for reference)
Overload ‘OL’ and low battery indicator
Auto power-off after 5 min, can be disabled
Drop-resistant from a height of 1 m
CAUTION
This equipment must only be operated by qualified personnel. Read the user manual before first use.
Documents in: EN
