Wipcool ALD-1 Infrared Refrigerant Leak Detector

Refrigerant leak detector with an infrared sensor for locating leaks of CFC, HFC, HCFC blends and HFO-1234yf refrigerants, with a sensitivity of ≤4 g/yr. It runs for 8 hours on a single charge.

  • Infrared sensor
  • Sensitivity ≤4 g/yr
  • PEAK function
  • 8 h on a single charge
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
podczerwień
Sensor
≤4g/rok
Sensitivity
≤1s
Response time
CFC, HFC, HCFC, HFO-1234yf
Detected refrigerants
Net list price
Request a quote
Request a quote
Where to buy

The ALD-1 works on the principle of infrared absorption spectroscopy, with a response time of no more than 1 s. The larger the leak, the faster the buzzer signal and the higher the bars on the colour TFT display.

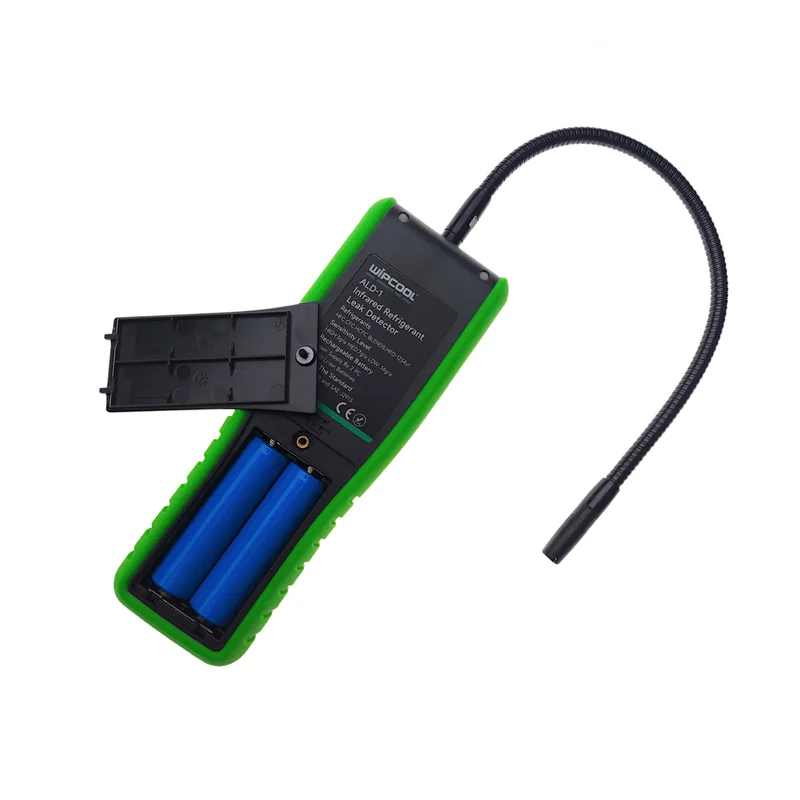

Two 18650 batteries provide 8 hours of continuous operation and are charged via a USB Type-C port.

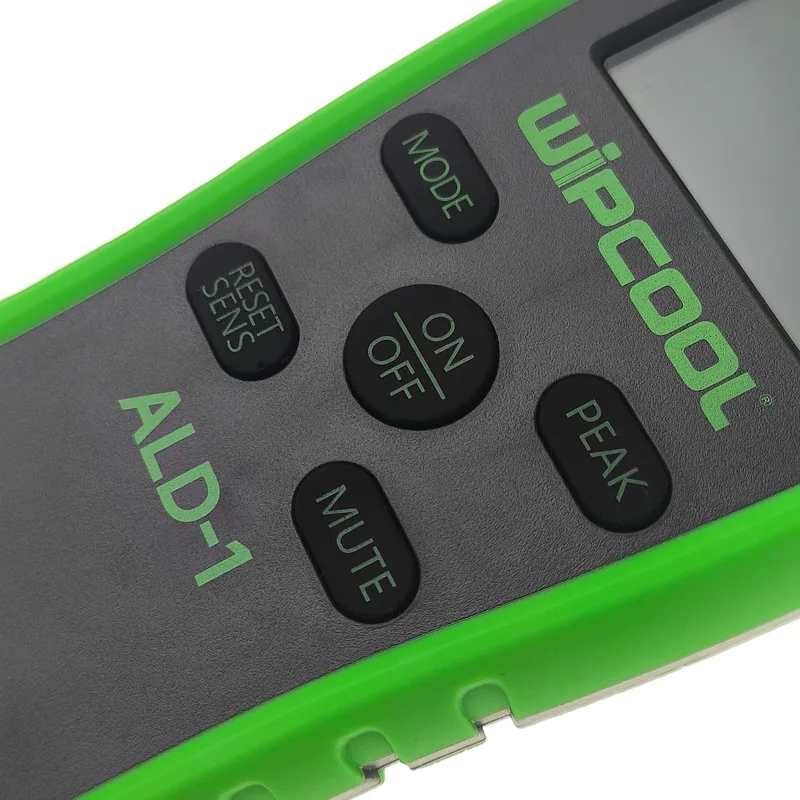

Compare leaks with the PEAK function
With the PEAK function enabled, the display holds the largest leak detected, so you can compare several suspected leak points.
Filter reduces false alarms
A replaceable filter at the probe tip stops coarse contaminants and moisture, helping to reduce false alarms in high humidity.

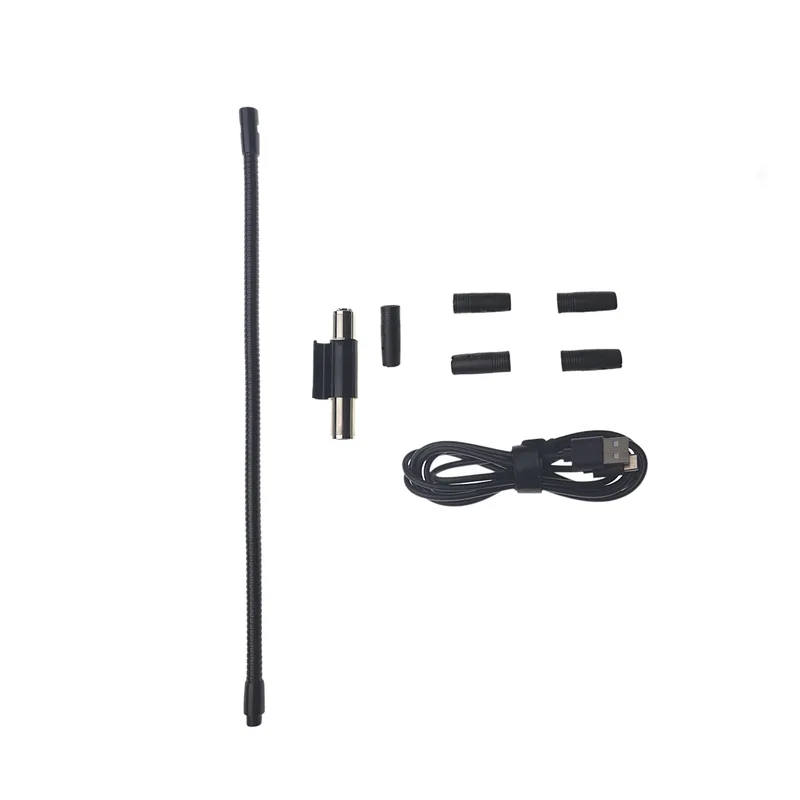

In the box

  • ALD-1 Infrared Refrigerant Leak Detector
    1 pc
  • UV LED
  • USB charging cable
  • Replacement filters
    5 pcs

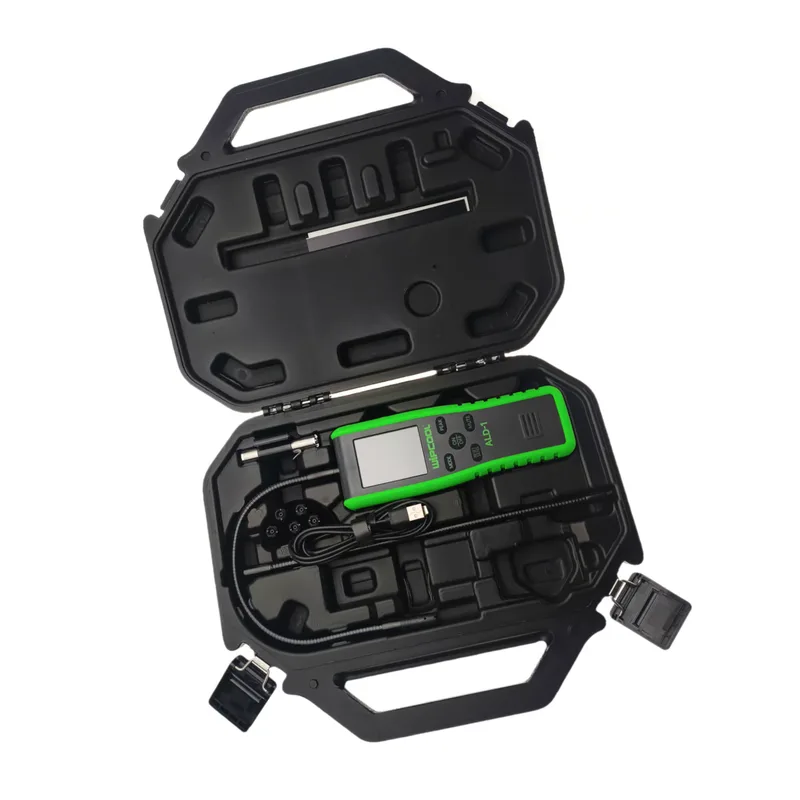

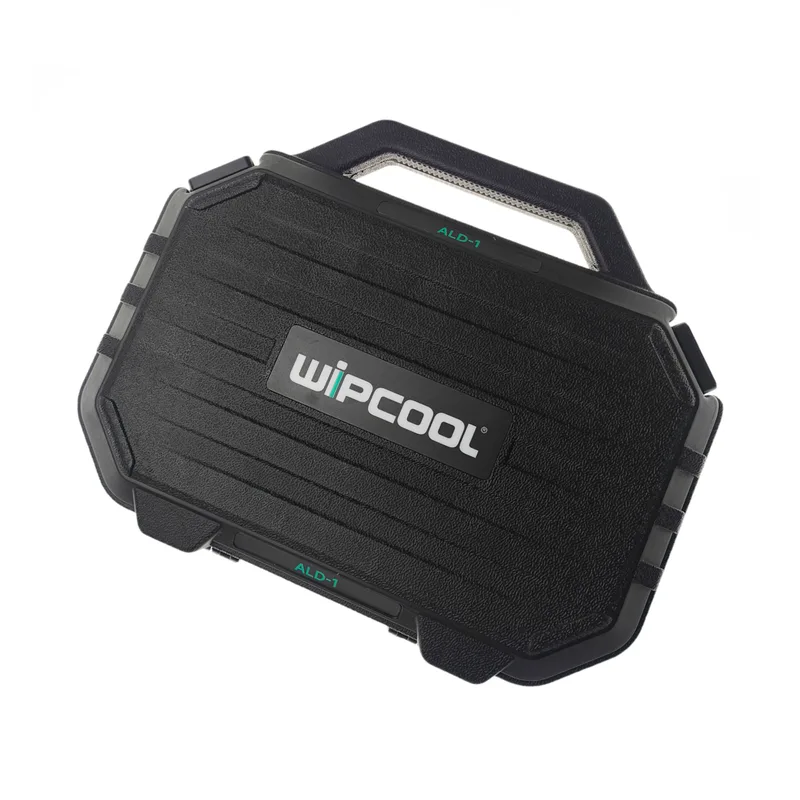

  • Carrying case
  • User manual
