Wipcool ALD-2 Heated Diode Refrigerant Leak Detector

Refrigerant leak detector with a heated diode sensor for locating leaks of CFC, HCFC, HFC, HC and HFO refrigerants, as well as nitrogen and hydrogen mixtures. The minimum detectable leak rate is ≤3 g/year.

  • Sensitivity ≤3 g/year
  • 420 mm flexible probe
  • Automatic/manual background zeroing
  • Replaceable sensor
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
heated diode
Sensor
≤3g/year
Sensitivity
≤3s
Response time
CFC, HCFC, HFC, HC, HFO
Refrigerants detected
Net list price
130,00 €
Request a quote
Where to buy

ALD-2 detects R32, R410A, R407C, R134a, R290, R600a and R1234yf, as well as R22 and R12. It also responds to the nitrogen and hydrogen mixture (N2/H2) used for leak testing. The minimum detectable leak rate is ≤3 g/year. The 420 mm flexible probe can be bent to reach valves and connections in hard-to-access places.

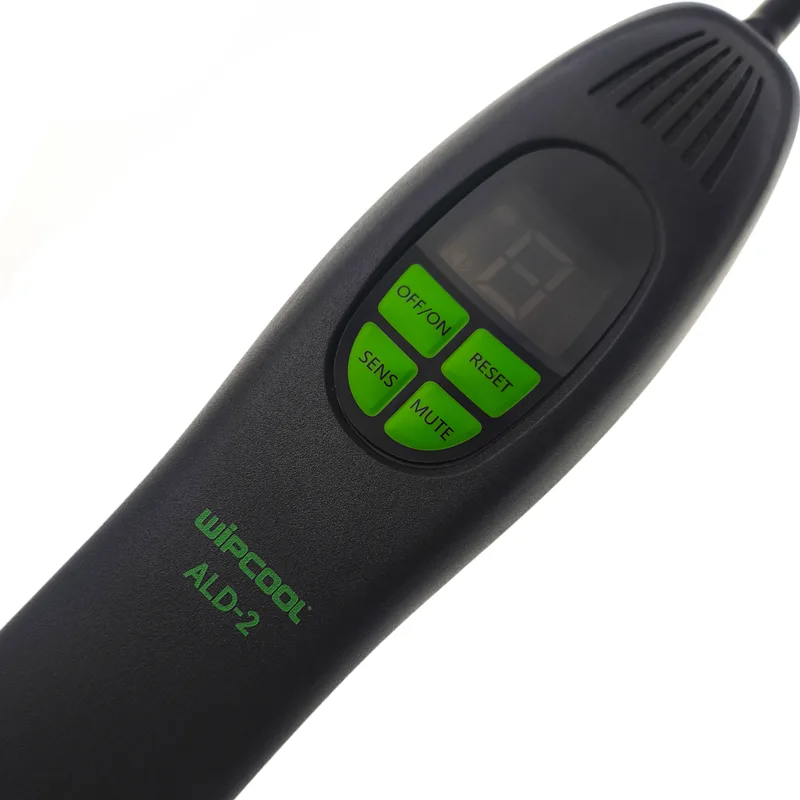

The detector signals a leak with an audible alarm and a display reading - the level from 1 to 7 rises with the refrigerant concentration.

Alarm above ambient concentration
Automatic zeroing is enabled by default and disregards refrigerant present around the probe, so the detector only sounds an alarm when the concentration rises above the background level.
From the leak area to the leak point
High sensitivity helps identify the general area of a leak. Switching to a lower sensitivity then narrows the search to a single point.

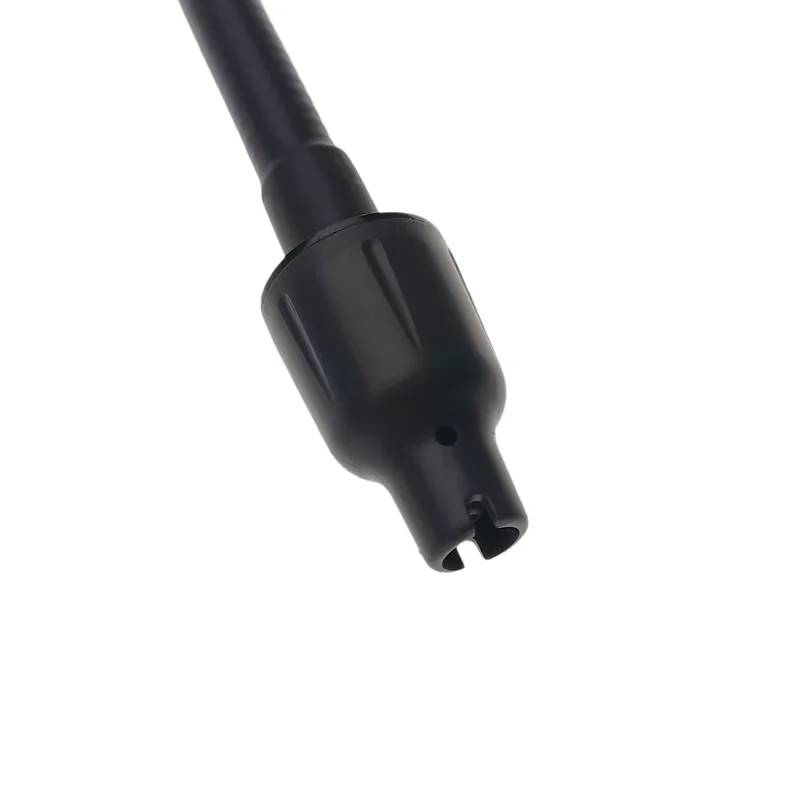

Replaceable sensor in the probe
A worn sensor can be replaced without replacing the entire detector; its service life is at least one year.

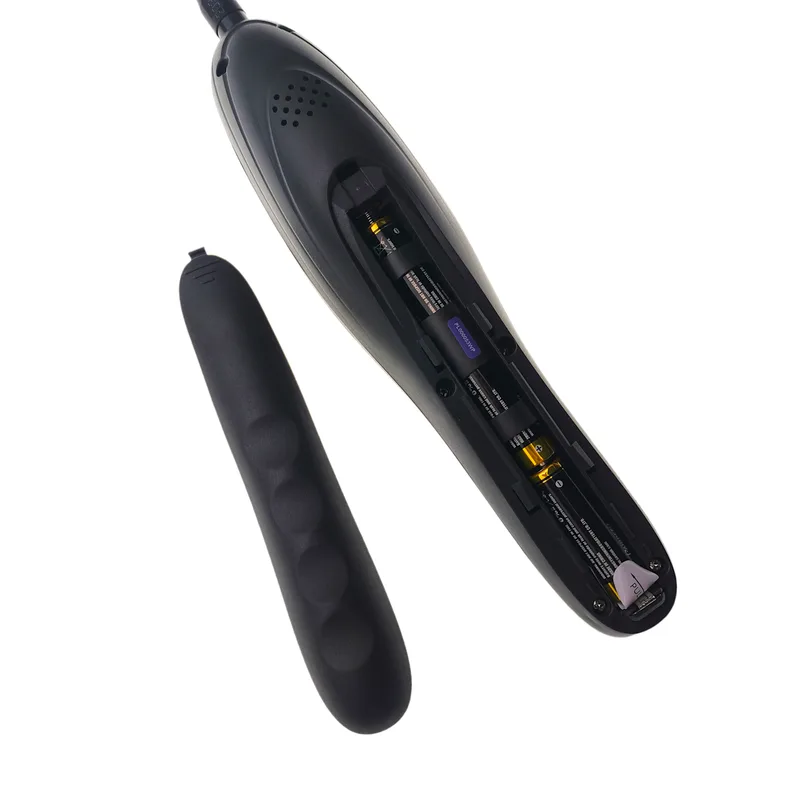

7 hours of operation on AA batteries
Three AA alkaline batteries provide 7 hours of continuous operation, and a three-colour icon shows their status.

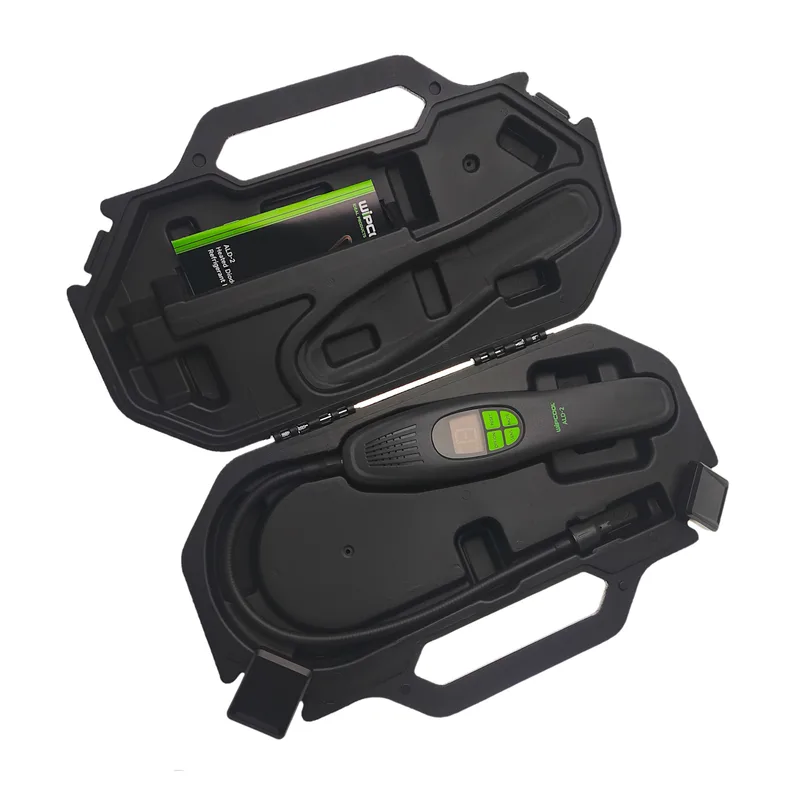

In the box

  • ALD-2 refrigerant leak detector
  • Heated diode gas sensor
  • User manual
