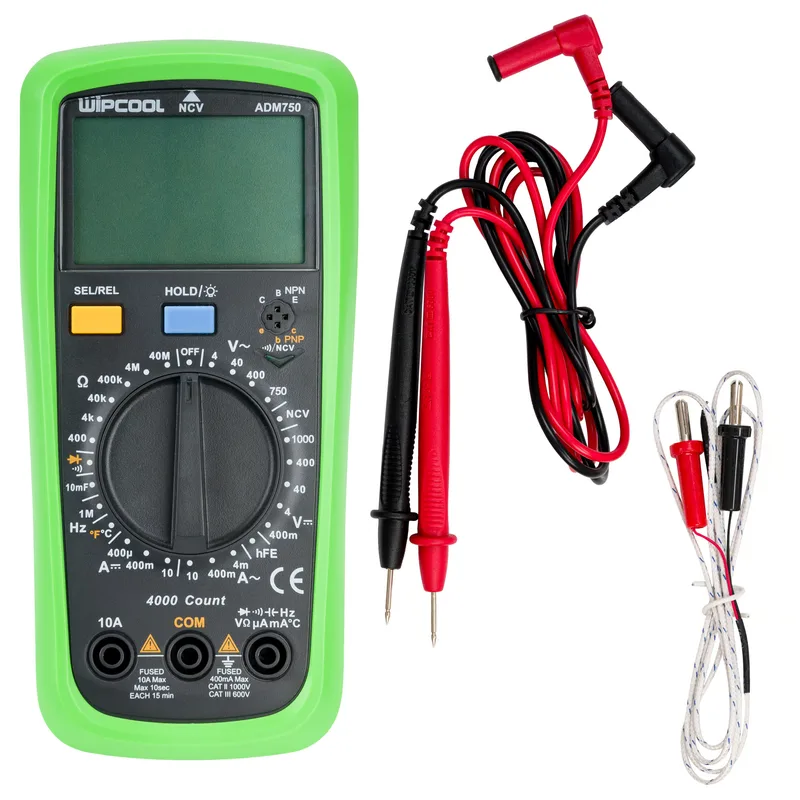

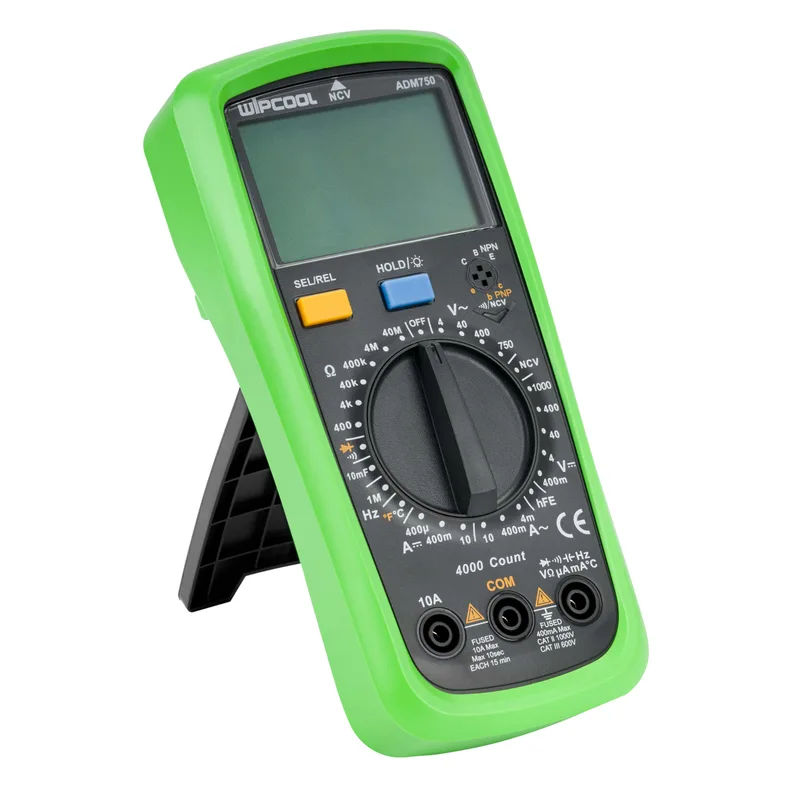

Wipcool ADM750 Multimeter

Digital multimeter with manual range selection for measuring DC voltage up to 1000 V and AC voltage up to 750 V, current up to 10 A, resistance, capacitance, frequency and temperature. The NCV function detects AC voltage without touching the conductor.

  • DC voltage up to 1000 V
  • NCV voltage detection
  • Transistor hFE measurement
  • Drop resistant from 2 m
  • 12-month warranty
  • Service by the distributor in the country of purchase
Key parameters
1000V
DC voltage, max.
750V
AC voltage, max.
10A
DC and AC current, max.
10mF
Capacitance, max.
Net list price
35,58 €
Request a quote
Where to buy

The ADM750 is a multimeter with manual range selection. It measures DC voltage up to 1000 V and AC voltage up to 750 V, DC and AC current up to 10 A, and capacitance up to 10 mF. It measures temperature with a type K thermocouple and the hFE gain of PNP and NPN transistors using the transistor socket.

Voltage detection without contact
In NCV mode, the multimeter responds to an electric field above 100 V AC and displays its strength using up to 4 segments. The stronger the field, the more frequently the buzzer sounds and the faster the red LED flashes.
Audible and visible continuity indication
At a resistance of up to 10 Ω, the buzzer sounds continuously and the red LED lights up, so you can check circuit continuity without looking at the display.
Internal capacitance correction
For capacitance up to 200 nF, REL mode subtracts the instrument's internal capacitance from the result.

In the box

  • ADM750 Multimeter
  • User manual
