Mini Condensate Pumps
P22i

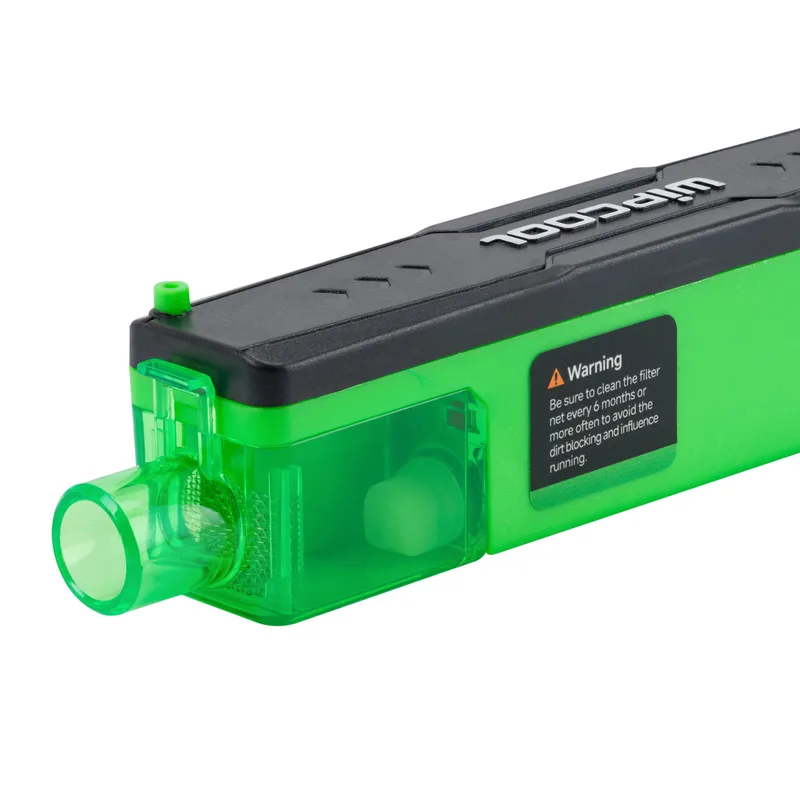

Wipcool P22i Mini Condensate Pump

Mini condensate pump with an integrated reservoir for split, ducted and cassette air conditioners with a cooling capacity of up to 8.8 kW. Variable speed adjusts the flow to the amount of condensate.

  • Variable speed
  • Integrated 25 ml reservoir
  • 4th-generation sensor
  • NC/COM alarm line
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
22l/h
Max. flow rate
10m
Max. head
up to 8.8kW
Air conditioner cooling capacity
20dB(A)
Sound level at 1 m
Net list price
71,03 €
Request a quote
Where to buy

The P22i is a mini condensate pump with a filtered reservoir integrated into the housing for easier installation. The pump operates at variable speed, adjusting the flow to the amount of condensate being discharged, up to a maximum of 22 l/h. It lifts condensate up to 10 m and is designed for air conditioners with a cooling capacity of up to 8.8 kW.

The diaphragm pump has a balanced motor that reduces vibration, and its sound level at a distance of 1 m is 20 dB(A). Hook-and-loop tape made from noise- and vibration-damping material allows the pump to be mounted behind the indoor unit.

NC/COM alarm line
When the NC/COM alarm line is connected to an air conditioner control system that supports this signal, the air conditioner switches off if the water level is high, reducing the risk of a condensate leak.
Anti-suction device included
The 6 mm anti-suction device prevents water from being drawn out of the pump by the negative pressure created by the column of liquid in the drain hose.
Drainage far from the unit
The pump discharges condensate horizontally over a distance of up to 100 m or lifts it to a height of up to 10 m.

In the box

  • Vent tube
    1 pc, length 35 mm, internal diameter 6 mm (1/4")
  • Anti-suction device
    1 pc, 6 mm (1/4")
  • Flexible hose
    1 pc, length 415 mm
  • Cable ties 100 × 3 mm
    2 pcs
  • Cable ties 300 × 5 mm
    2 pcs
  • Hook-and-loop tape
    1 pc, 25 × 100 mm
  • User manual
    1 pc
