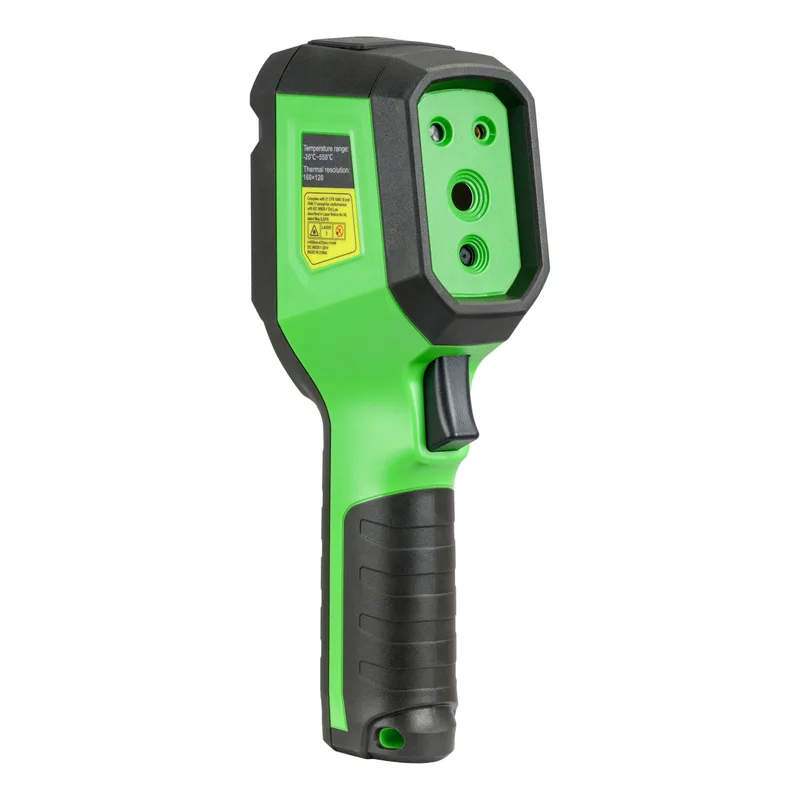

Wipcool ATC550 Thermal Imaging Camera

Handheld thermal imaging camera with a 160 × 120 infrared sensor for temperature measurement from -20 to +550 °C. It automatically marks the hottest and coldest spots on the image and saves images to 32 GB of memory.

  • Min./max. spot tracking
  • 160 × 120 IR sensor
  • Temperature alarm
  • 32 GB memory
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
od -20 do +550°C
Measuring range
160 × 120
Infrared sensor
< 50mK
Thermal sensitivity at 25 °C
Net list price
Request a quote
Request a quote
Where to buy

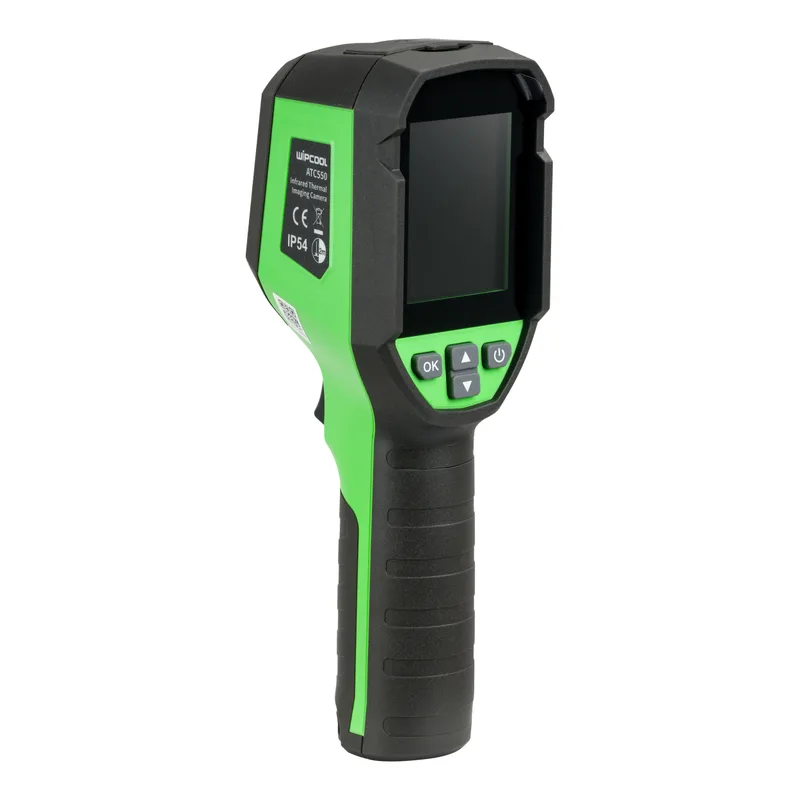

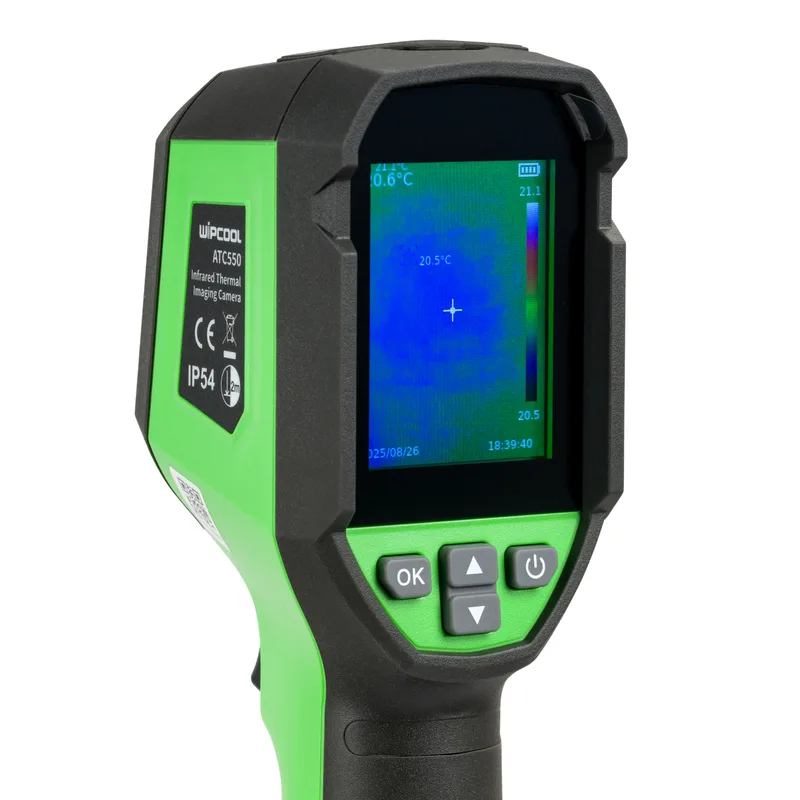

The ATC550 is a handheld thermal imaging camera with a 160 × 120 infrared sensor and a colour TFT display. It measures temperature from -20 to +550 °C with an accuracy of ±2 °C / ±2% (whichever is greater). It tracks the highest and lowest temperature spots on the image.

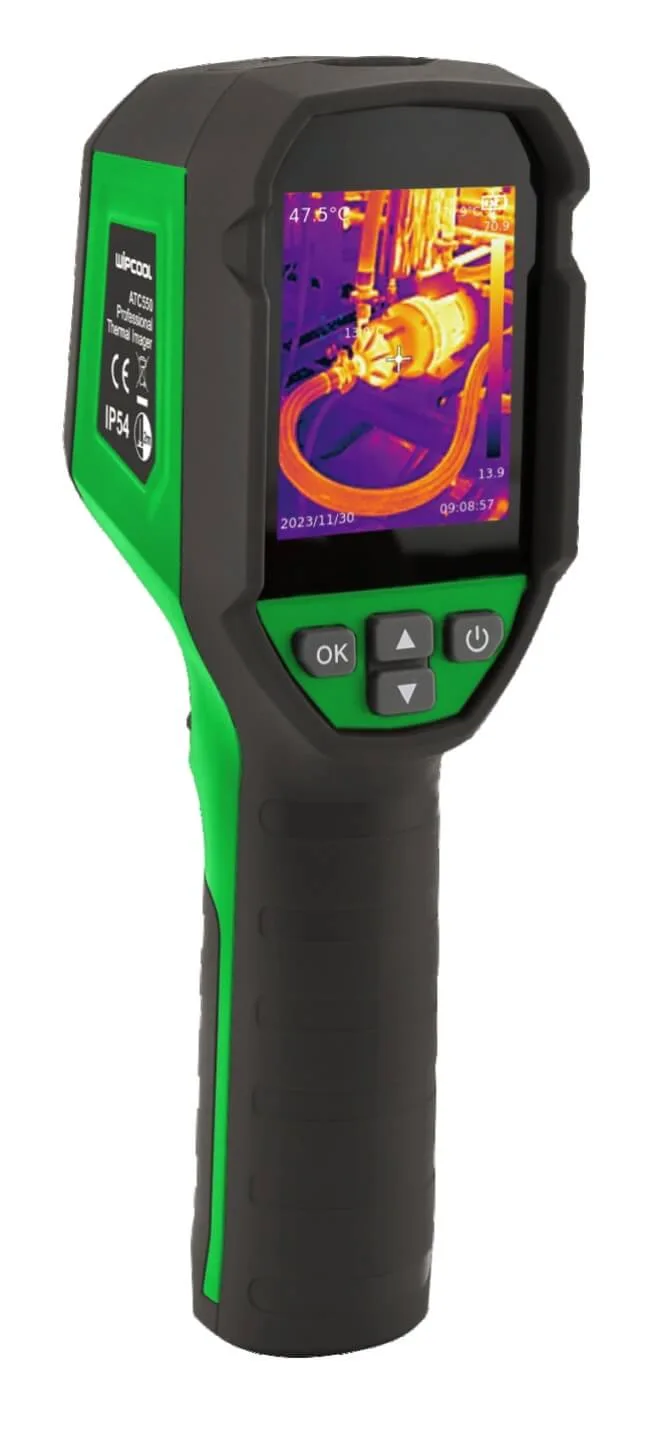

In addition to the thermal image, the camera displays the visible-light image as well as picture-in-picture (PIP) and blended (Fusion) images. The camera menu is available in English and Chinese.

Hottest and coldest spot
The camera automatically tracks the highest and lowest temperature spots on the image, so anomalies are visible without searching the image manually.
Alarm when a threshold is exceeded
Once you set the upper and lower thresholds, the camera gives an audible signal when either is exceeded, making it easier to spot components that are too hot or too cold.
Images and analysis on a computer
Images saved to the 32 GB memory can be transferred via USB cable to PC software for viewing and analysis.
IP54 and 2 m drop resistance
The housing is rated IP54 and the camera withstands a drop from a height of 2 m.

In the box

  • ATC550 Thermal Imaging Camera
  • USB cable
  • Quick start guide
