APC1000

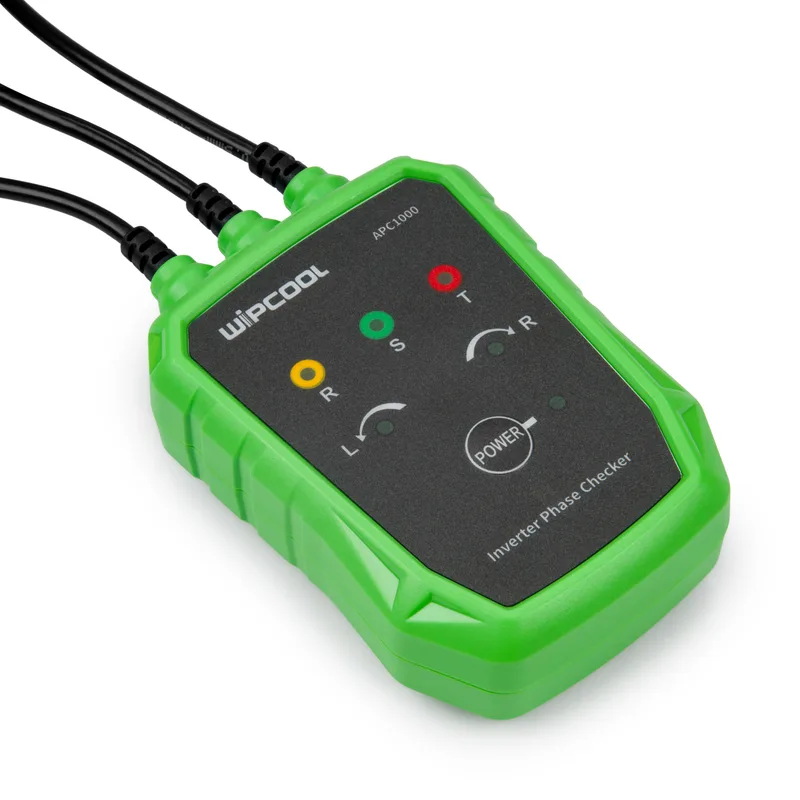

Wipcool APC1000 Non-contact Phase Rotation Tester

Non-contact tester for checking phase rotation and phase loss in a 70–1000 V AC three-phase supply through cable insulation. The clamps fit insulated cables with a diameter of 2–40 mm.

  • Measurement through insulation
  • Phase rotation and phase loss
  • Cables Ø2–40 mm
  • IP52 protection rating
  • 12-month warranty
  • Service by the distributor in the country of purchase
Key parameters
70–1000V AC
Three-phase voltage range
2–40mm
Insulated cable diameter
Net list price
130,00 €
Request a quote
Where to buy

The APC1000 checks a 70–1000 V AC three-phase supply through cable insulation. The phase rotation indicator and buzzer indicate positive or negative phase rotation, while the R, S, T indicators show a missing phase.

A single clamp can also be used to check whether a cable is live and, by moving the clamp along the cable, to locate a break. The tester operates with a sinusoidal voltage at a frequency of 45–66 Hz and is intended for indoor use.

No need to disconnect cables or touch conductors
The clamps fit insulated cables with a diameter of 2–40 mm, so the tester checks phase rotation without disconnecting cables or touching live conductors.
Fit clamps in any order
The clamps can be fitted to the phases in any order. The colour of the phase rotation indicator and the buzzer pattern indicate positive or negative phase rotation.
Missing phase immediately visible
When a phase is missing from one of the cables, the corresponding R, S or T indicator goes out while the others remain lit.
Locate a break along a cable
Move a clamp along a live cable to locate a break: the R, S, T indicators go out when the clamp passes the damaged point.

In the box

  • APC1000 phase rotation tester
  • User manual
