Home/HVAC/R Tools/Measuring Instruments/Wipcool ASM130 Sound Level Meter
Measuring Instruments
ASM130

Wipcool ASM130 Sound Level Meter

Sound level meter for measuring A-weighted noise over a 30–130 dB range with ±1.5 dB accuracy at 1 kHz, for example in manufacturing plants. It has FAST and SLOW modes and a MAX/MIN function.

  • A-weighting, 30–130 dB
  • FAST and SLOW modes
  • MAX/MIN measurement
  • Backlit display
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
30–130dB
Measuring range (A-weighted)
0,1dB
Resolution
±1,5dB
Accuracy at 1 kHz
31,5 Hz–8kHz
Frequency band
Net list price
Request a quote
Request a quote
Where to buy

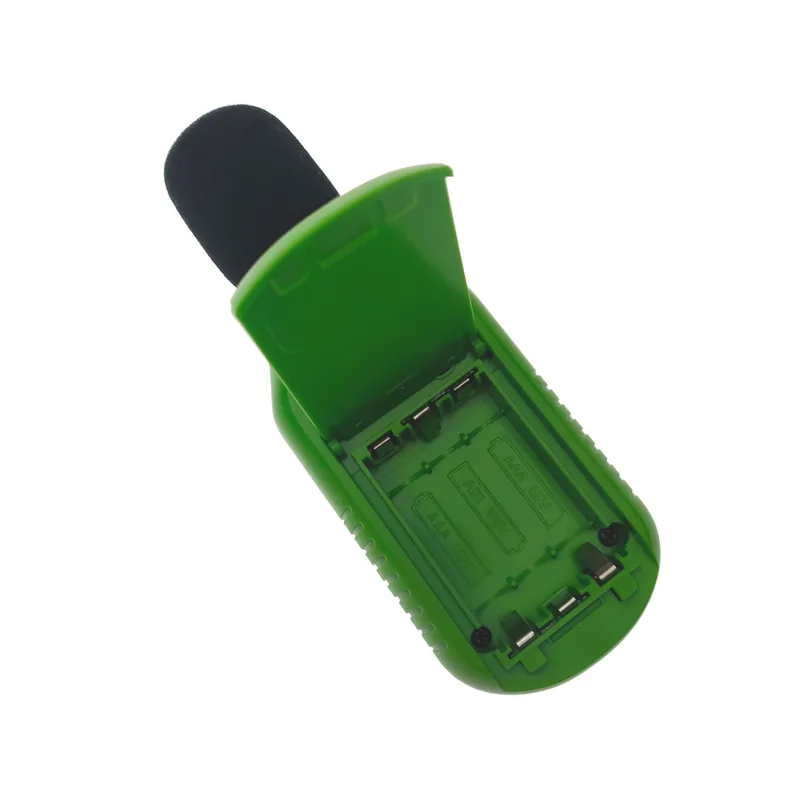

The ASM130 is a portable sound level meter with a condenser microphone and a backlit LCD display. It measures A-weighted noise over a 30–130 dB range and a 31.5 Hz–8 kHz frequency band, with ±1.5 dB accuracy at 1 kHz. It is used for noise measurement, including environmental noise, for example in manufacturing plants. The meter is designed for indoor use.

Fluctuating and steady noise
FAST mode, sampling every 125 ms, is used to measure fluctuating noise, and SLOW mode, sampling every 1 s, is used for steady noise.
Highest and lowest value
In MAX or MIN mode, the display continuously shows the highest or lowest measured value, so you do not need to follow the reading in real time.
Reading held on the display
The HOLD function freezes the current reading on the display, so you can read and record it after the measurement is complete.
Reading in low light
The backlit display makes the reading easier to see in poorly lit locations.

In the box

  • Windscreen
    Foam, for the microphone
  • User manual
