Measuring Instruments
AVC150
Wipcool AVC150 Digital Caliper
Digital caliper for outside, inside and depth measurements in the 0–150 mm range with a resolution of 0.01 mm. It is made of hardened stainless steel and rated IP54.
- Range 0–150 mm
- Resolution 0.01 mm
- Hardened stainless steel
- IP54 rating
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
Key parameters
150mm
Max. measuring range
0,01mm
Resolution

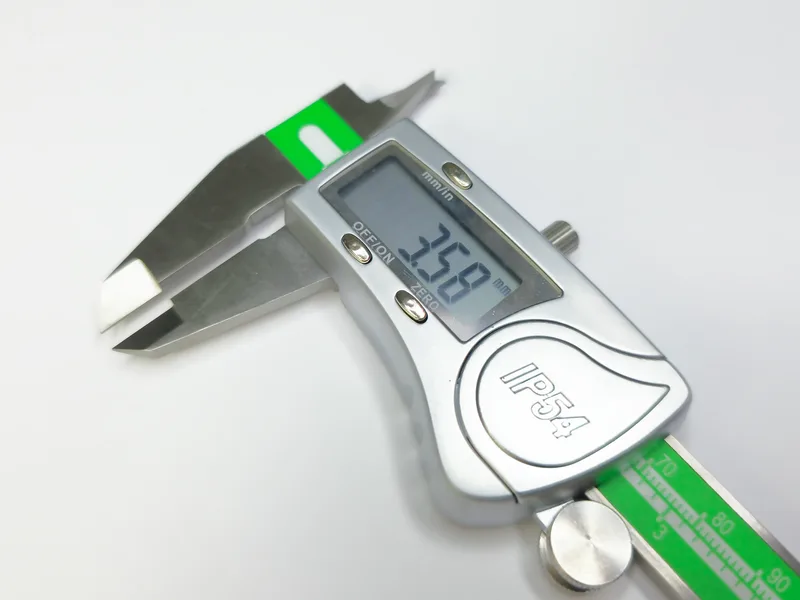

The AVC150 is a digital caliper with a 0–150 mm range. The LCD display shows the reading with a resolution of 0.01 mm, and a separate button zeroes the display.
Three measurements with one tool
Two pairs of jaws and a depth rod let you measure outside dimensions, inside dimensions and depth with a single caliper.
IP54 protection against dust and splashes
The IP54 rating protects the caliper against dust and splashes, so you can use it in the workshop.

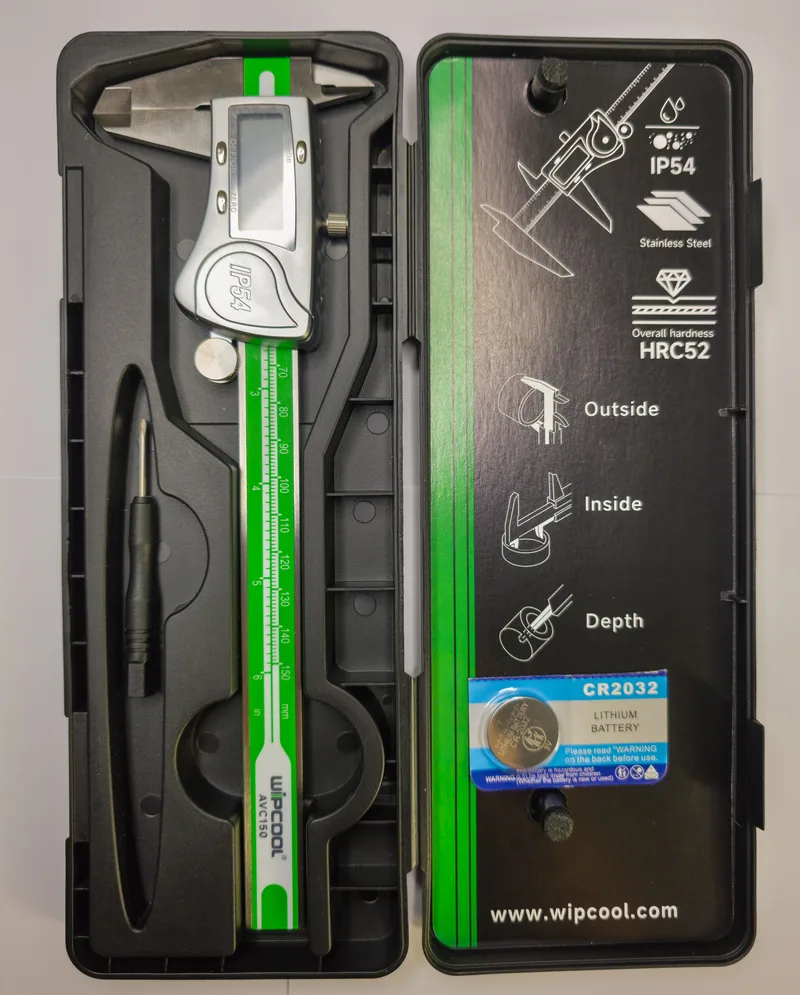

In the box
- 3 V CR2032 battery
Technical specifications
| Power supply | bateria 3 V typu CR2032 (w zestawie) |
| Measuring range | 0–150 mm |
| Measuring resolution | 0.01 mm |
| Max. measuring speed | 3 m/s |
| Operating temperature | 0–40 °C |
| Storage temperature | -20 to +70 °C |
| Operating humidity | 0–80% |
| Ingress protection | IP54 (dust and splash resistant) |
| Material | hardened stainless steel |
| Material hardness | HRC 52 |
| Bulk pack | 10 pcs |
| Overall length | 235 mm |
| Lower jaw depth | 40 mm |
| Body height | 14 mm |
| Upper jaw height | 16 mm |
| Beam height | 16 mm |
Features and equipment
Two pairs of jaws (outside and inside measurement) and depth rod
LCD display
On/off button
Zero button
Thumb wheel for fine adjustment
