Wipcool MVG-1 Vacuum Gauge

Digital vacuum gauge for measuring vacuum during the drying of air conditioning and refrigeration systems, with a range of 0–19 000 microns. It also displays the saturation temperature of water at the current vacuum level (TH₂O).

  • 0–19 000 micron range
  • Water condition assessment (TH₂O)
  • Backlit LCD
  • USB Type-C charging
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
0–19 000microns
Measurement range
1micron
Resolution (1–400 microns)
±10% of reading ±10microns
Accuracy (1–10 000 microns)
1/4"SAE
Connection
Net list price
116,35 €
Request a quote
Where to buy

The MVG-1 is a portable digital vacuum gauge for measuring vacuum during the drying of air conditioning and refrigeration systems. The gauge connects to the system via a 1/4" SAE connection and measures from 0–19 000 microns.

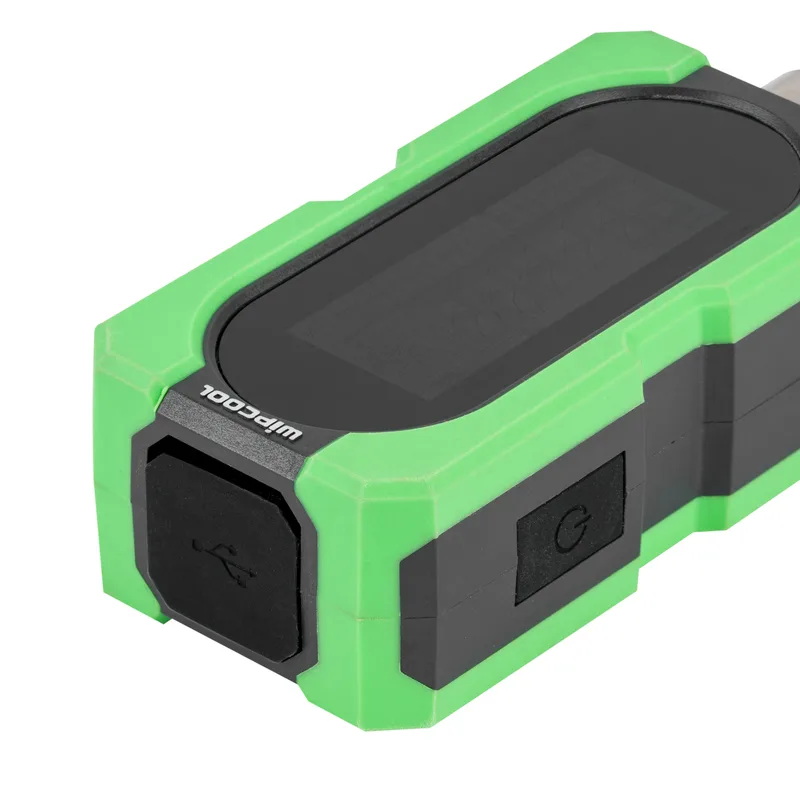

In addition to vacuum, the gauge displays the ambient temperature (Tamb) and the saturation temperature of water at the current vacuum level (TH₂O). It has a large backlit LCD and a built-in 1000 mAh battery charged via a USB Type-C port.

Assessing the condition of water in the system
Comparing TH₂O with Tamb shows whether water in the system is already evaporating at the achieved vacuum level or whether evacuation needs to continue.
1 micron increments up to 400 microns
In the 1–400 micron range, the reading changes in increments of 1 micron, and at higher values in increments of 10, 100 or 250 microns.
Eight vacuum units
Vacuum can be displayed in microns, mTorr, inHg, Pa, Torr, kPa, mbar or psia, and the gauge automatically saves the selected units.
Replaceable oil filter
A filter under the sensor cap reduces oil contamination of the sensor, and 3 filters are included.

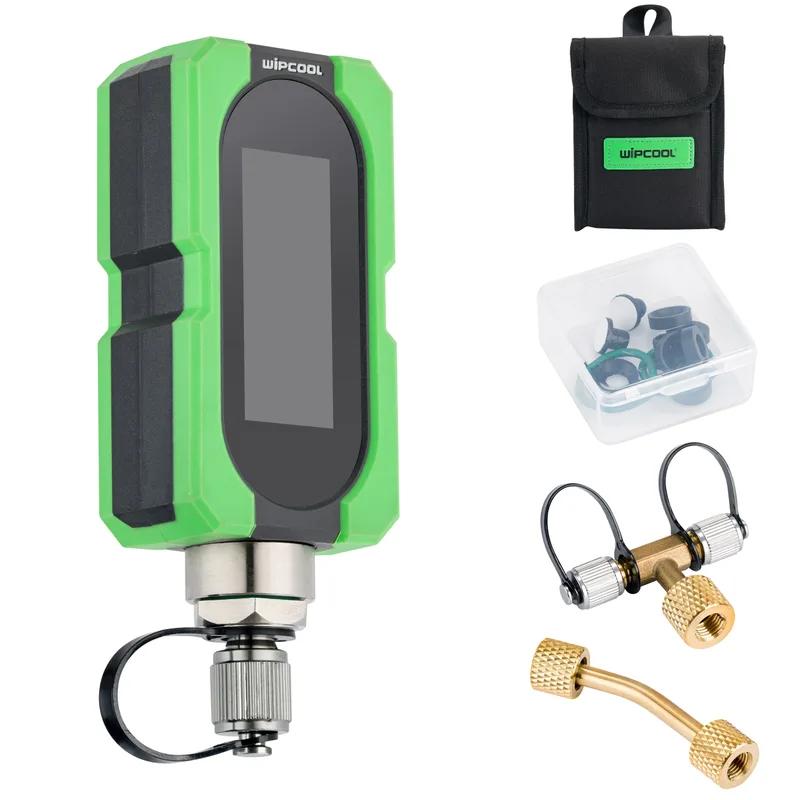

In the box

  • MVG-1 vacuum gauge
  • Protective cover
  • 1/4" × 1/4" SAE extension
    female
  • 1/4" tee
    M-F-M
  • O-ring
    2 pcs
  • Rubber seal
    6 pcs
  • Oil filter
    3 pcs
