Wipcool CT370 Heat Exchanger Tube Cleaner

A machine for mechanically cleaning tubes in shell-and-tube heat exchangers in chillers, with a 7.6 m shaft and 1/2"–1" brushes. Water flowing through the shaft helps remove deposits.

  • Water flushing through the shaft
  • Self-priming water supply
  • Foot switch for shaft rotation
  • Wheels and telescopic handle
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
1/2"–1"
Brushes included
7,6m
Shaft length
860rpm
Shaft speed at 230 V
Net list price
1 138,37 €
Request a quote
Where to buy

The CT370 is a machine for mechanically cleaning heat exchanger tubes in refrigeration and air conditioning systems, including shell-and-tube condensers and evaporators in chillers. A brush attached to a 7.6 m flexible shaft removes scale, deposits and other contaminants from inside the tubes, while water flowing through the shaft helps flush them out. With a 230 V supply, the shaft rotates at a constant speed of 860 rpm.

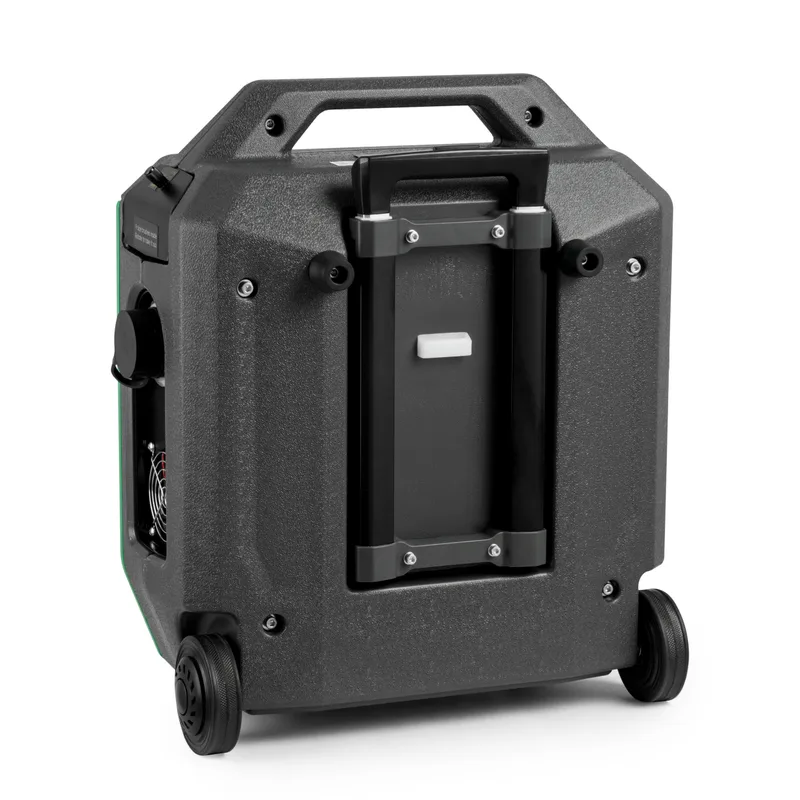

The machine weighs 24 kg, and its wheels and telescopic handle make it easy to transport between workplaces. The brush set fits in a compartment in the housing.

1/2"–1" brushes included

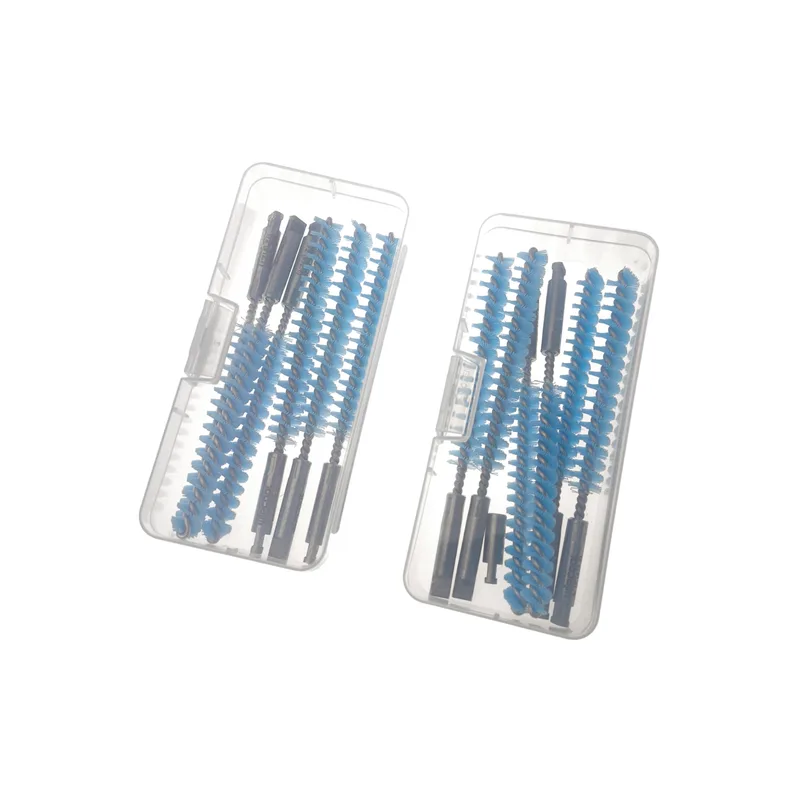

The set includes 2 sets of 9 brushes in sizes from 1/2" to 1", allowing you to clean tubes of different diameters with one machine.
Quick-release couplings for shaft and brush
Quick-release couplings let you connect the shaft to the machine and the brush to the end of the shaft in seconds.
Foot-operated shaft rotation
A foot switch on a 3 m cable starts the shaft rotation, leaving your hands free to guide the shaft through the tube.
Water from a tap, bucket or tank
The machine draws water from a tap through a 2 m inlet hose, or draws it from a bucket or tank where there is no water connection.

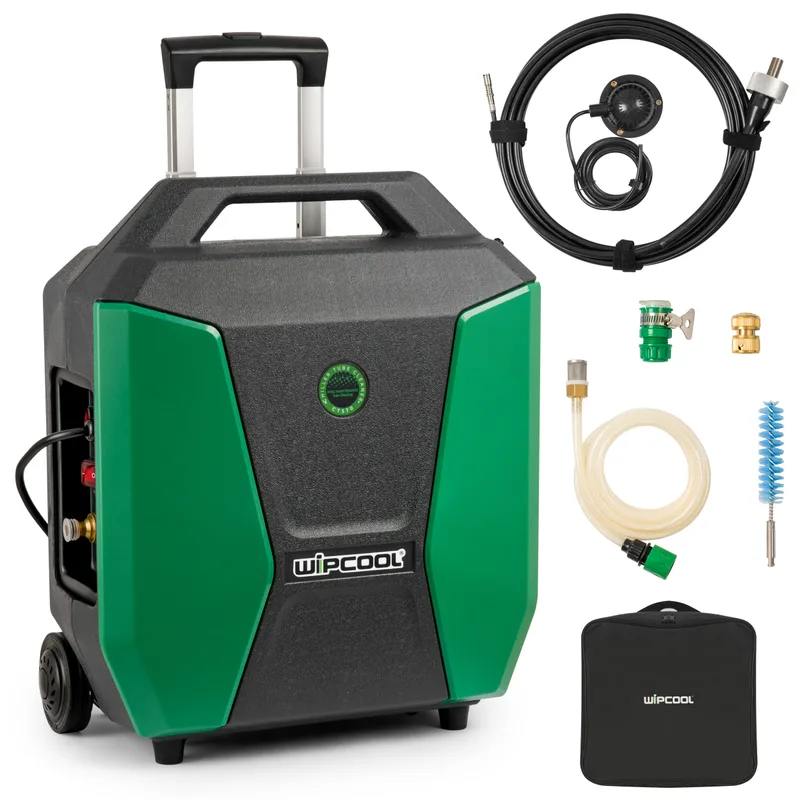

In the box

  • Brushes 1/2", 9/16", 5/8", 11/16", 3/4", 13/16", 7/8", 15/16", 1"
    18 pieces in 2 sets
  • Flexible shaft
    12 mm, 7.6 m long
  • Foot switch
    3 m cable
  • Power cable
    4 m long
  • Inlet hose
    2 m long
  • Water inlet filter
  • Brass connector
  • Plastic connector
  • User manual
