Wipcool P180 Condensate Pump
Floatless condensate tank pump for air conditioning and refrigeration equipment with a cooling capacity of up to 117.2 kW, with a 1.8 l tank. Flow rate up to 280 l/h, head up to 5 m.
- Floatless
- Thermal protection with reset
- NC/COM alarm contact
- Built-in spirit level
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase

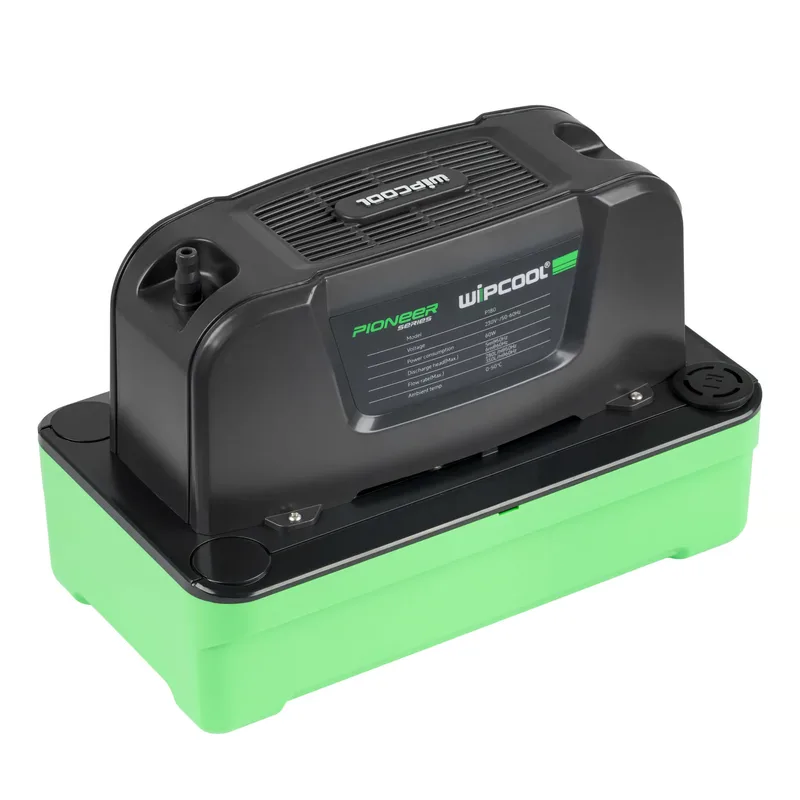

The P180 is a condensate tank pump for air conditioning and refrigeration equipment with a cooling capacity of up to 117.2 kW. Instead of a float switch, it is controlled by a probe level sensor, which starts the pump when condensate collects in the 1.8 l tank. The centrifugal pump is resistant to dirt, lifts water to a head of up to 5 m and delivers a maximum flow rate of 280 l/h.

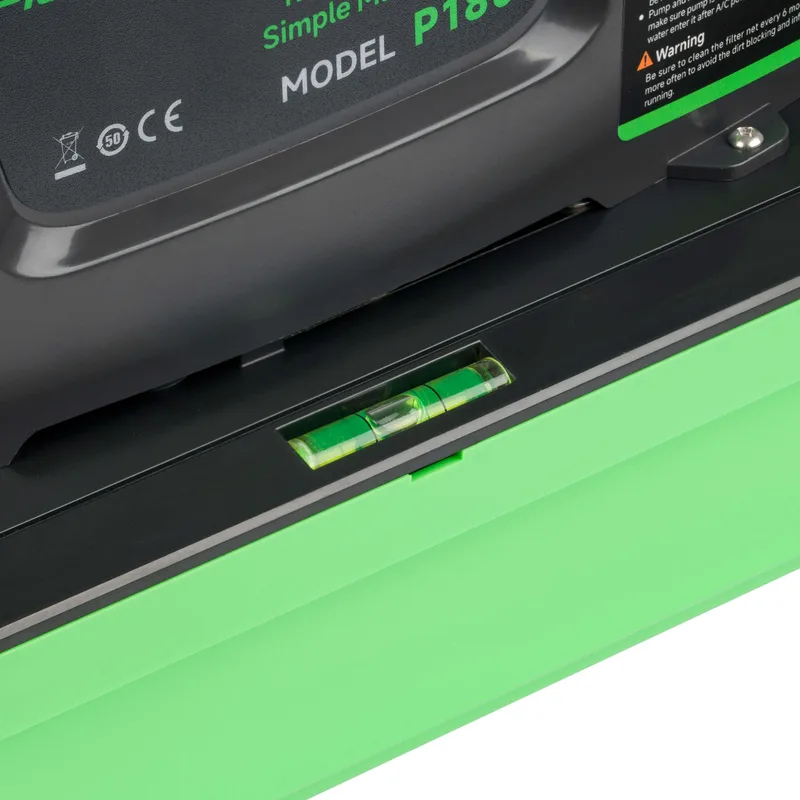

The motor is cooled by forced air circulation and has thermal protection with automatic reset, and the design of the pump prevents backflow. You can stand the pump on the floor or hang it on the wall using the metal mounting plate supplied, and the built-in spirit level makes levelling easier.
In the box
- Cable tie2 pcs, 10 cm
- Wall plugs2 pcs
- Screws2 pcs
- Mounting platemetal, for hanging the pump on a wall
- Clamping ring
- Rubber reducerfrom Ø25 to Ø20
- Power cable
- User manual
Technical specifications
| Power supply | 230 V |
| Max. head | 5 m |
| Max. flow | 280 l/h |
| Tank capacity | 1,8 l |
| AC cooling capacity | 117,2 kW |
| Noise level at 1 m | 48 dB (A) |
| Operating temperature | 0–50 °C |
| Power consumption | 60 W |
| Dimensions (L × W × H, mm) | 270,5 × 148 × 171 |
| Unit type | Ducted / cassette, Commercial / refrigeration |
| Bulk pack | 6 pcs |
Features and equipment
This equipment must only be operated by qualified personnel. Read the user manual before first use.
