Home/Condensate Management/Condensate Tank Pumps/Wipcool P580 Condensate Pump
Condensate Tank Pumps
P580

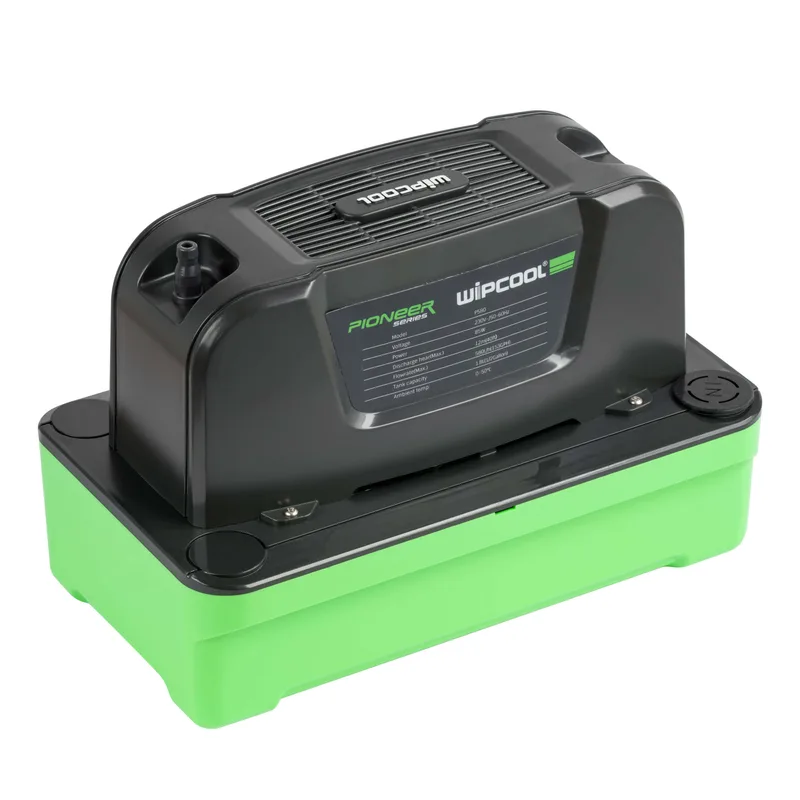

Wipcool P580 Condensate Pump

Condensate tank pump for air conditioning and refrigeration equipment with a cooling capacity of up to 146.5 kW, with a max. head of 12 m and a flow rate of up to 580 l/h.

  • Max. head 12 m
  • Brushless motor
  • Dual level sensor
  • NC/COM alarm line
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
580l/h
Max. flow rate
12m
Max. head
1,8l
Tank capacity
60dB(A)
Noise level at 1 m
Net list price
Request a quote
Request a quote
Where to buy

The Wipcool P580 is a condensate tank pump for air conditioning and refrigeration equipment with a cooling capacity of up to 146.5 kW. The contamination-resistant pump lifts condensate up to 12 m, and the flow rate decreases as the head increases. It is driven by a brushless motor with forced-air cooling.

You can stand the pump on the floor or hang it on the wall using the mounting plate supplied. It is designed for indoor use.

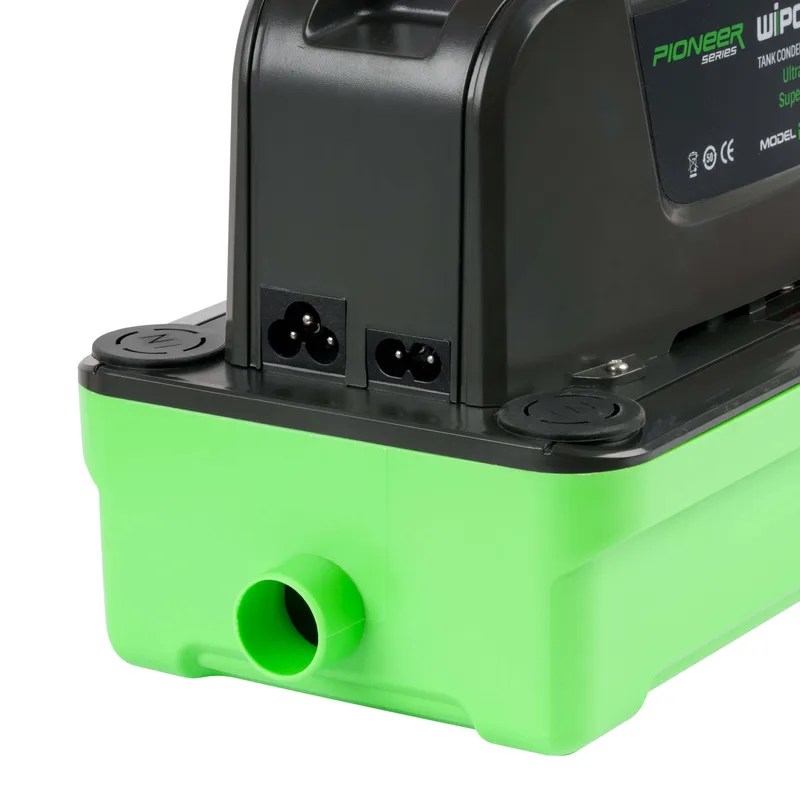

Five inlets
Four top inlets and one side inlet let you connect the inlet hose from the side of your choice.
NC/COM alarm line
When the NC/COM alarm line is connected to the control system of an air conditioner that supports this signal, the air conditioner is switched off at high water level and a buzzer signals that water is not being drained.
Dual level sensor
The water level is monitored by a dual sensor - a probe and a float switch - which starts the pump automatically when condensate collects in the tank.

In the box

  • Cable tie
    2 pcs, 10 cm
  • Wall plugs
    2 pcs
  • Screws
    2 pcs
  • Mounting plate
    for wall mounting
  • Clamping ring
  • Rubber reducer
    from Ø25 to Ø20
  • Power cable
  • User manual
