P380

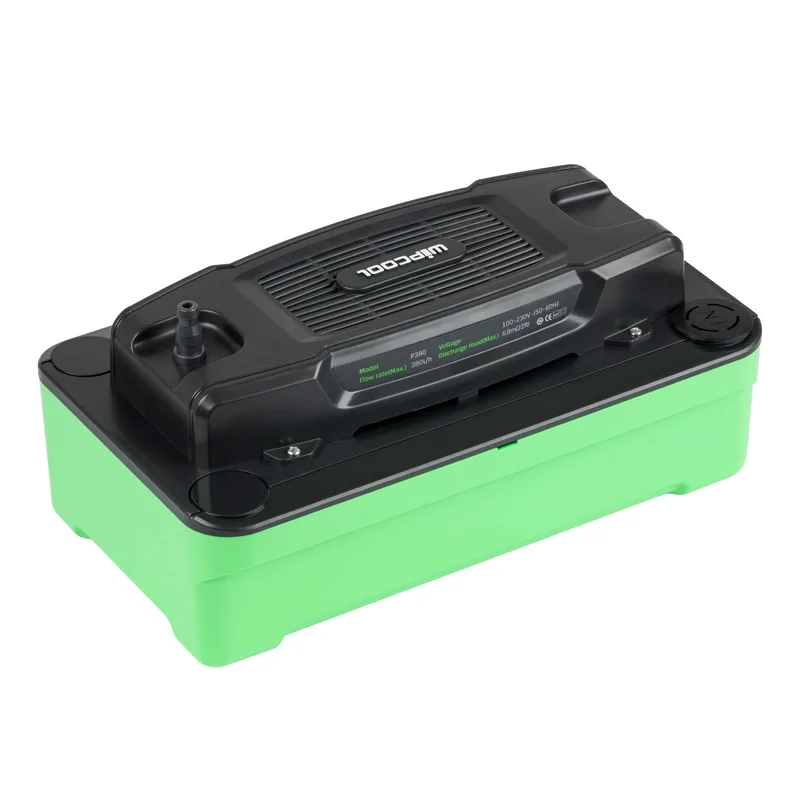

Wipcool P380 Condensate Pump

Low-profile condensate tank pump, 119 mm high, for air conditioning and refrigeration equipment with a cooling capacity of up to 146.5 kW, where installation space is limited. Lifts up to 6.8 m.

  • Height 119 mm
  • Five inlets
  • NC/COM alarm line
  • Mounting plate included
  • 24-month warranty
  • Service by the distributor in the country of purchase
Key parameters
380l/h
Max. flow
6,8m
Max. head
1,8l
Tank capacity
28dB(A)
Noise level at 1 m
Net list price
Request a quote
Request a quote
Where to buy

The Wipcool P380 is a condensate tank pump with a height of 119 mm, designed for locations where installation space is limited. Condensate drains into the tank, and a level sensor with a probe switches the pump on automatically when water collects in it. The pump lifts condensate to a head of up to 6.8 m; the flow rate decreases as the head increases.

The pump can stand on the floor or be hung on a wall using the mounting plate supplied. It is designed for indoor use.

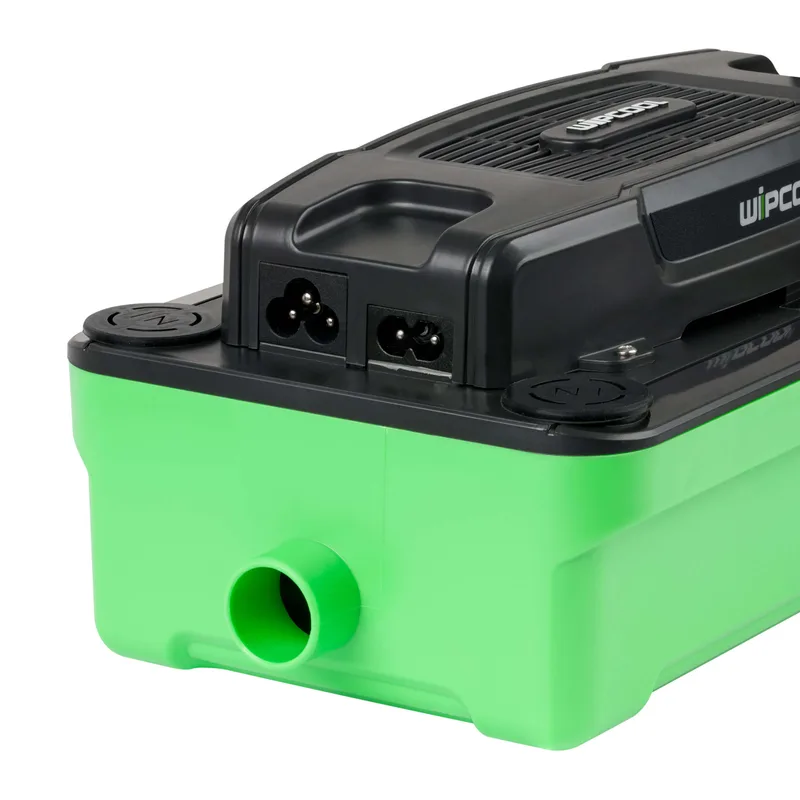

Five inlets
Four inlets on top and one on the side let you connect the inlet hose from the side you choose.
NC/COM alarm line
When the NC/COM alarm line is connected to the control system of an air conditioner that supports this signal, the air conditioner is switched off at a high water level and a buzzer signals that water is not being drained.
Non-return valve
The built-in non-return valve prevents water from flowing back into the tank.

In the box

  • Cable tie
    2 pcs, 10 cm
  • Wall plugs
    2 pcs
  • Screws
    2 pcs
  • Mounting plate
    for wall mounting
  • Clamping ring
  • Rubber reducer
    from Ø25 to Ø20
  • Power cable
  • User manual
