Vacuum Pumps
S1.5

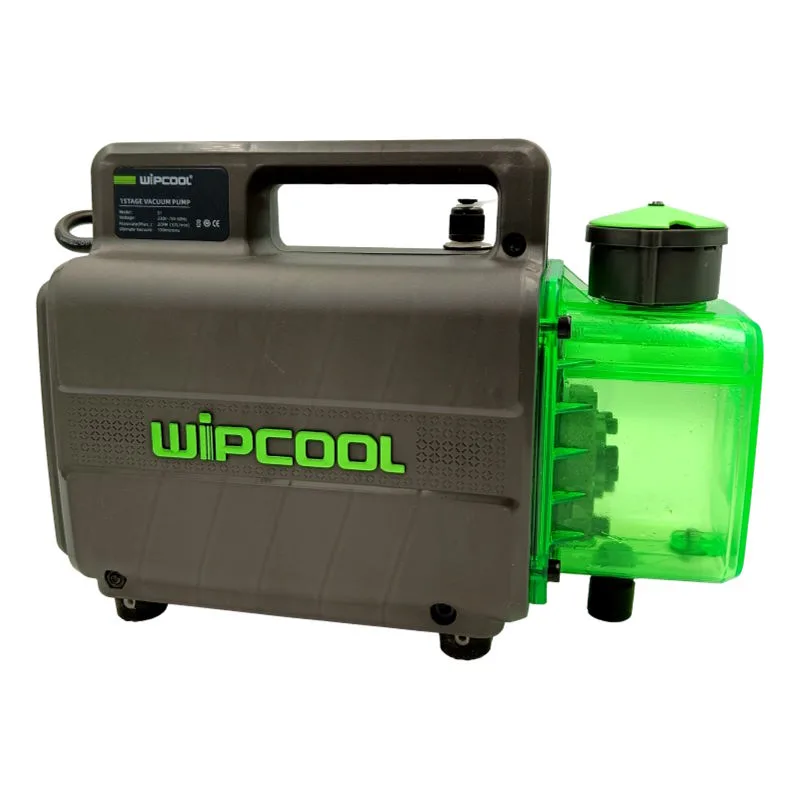

Wipcool S1.5 Vacuum Pump
Single-stage 230 V vacuum pump with an 85 l/min flow rate for systems with non-flammable refrigerants, including R404A, R407A and R134a. Reaches a vacuum of 150 microns.
- Single-stage pump
- Transparent oil reservoir
- Built-in check valve
- Weight 3.4 kg
- 24-month warranty
- Warranty service in Poland
- Service by the distributor in the country of purchase
Key parameters
85l/min
Max. flow rate
150mikronów
Ultimate vacuum
1/4" SAE
Connections
The Wipcool S1.5 is a single-stage, 230 V mains-powered vacuum pump for systems with non-flammable refrigerants, including R404A, R407A and R134a. It has a flow rate of 85 l/min, reaches a vacuum of 150 microns, and its 1/4" SAE connection fits a standard charging hose. Vacuum pump oil is included. The pump is well suited to light service work and small refrigeration systems with non-flammable refrigerants.
Note: Fill the pump with oil before first use.
Oil condition visible in the reservoir
The transparent reservoir shows the oil level and colour, so you can check its condition without opening the pump.
Check valve as standard
The built-in check valve prevents oil from flowing back from the pump into the system.
Oil leak protection
The patented pump design reduces the risk of oil leaks.
Compact housing
The pump measures 266 × 121 × 194 mm and weighs 3.4 kg, so it is easy to carry.
In the box
- S1.5 Vacuum Pump
- Vacuum pump oil
- User manual
Technical specifications
| Power supply | 230 V |
| Ultimate vacuum | 150 mikronów |
| Motor power | 180 W |
| Max. flow | 85 l/min |
| Operating temperature | 5–45 °C |
| Storage temperature | od -20 do +60 °C |
| Minimum oil temperature for start-up | 5 °C |
| Net weight | 3,4 kg |
| Dimensions (L × W × H, mm) | 266 × 121 × 194 |
| Connections | 1/4" SAE |
| Number of stages | Single-stage |
| Oil capacity | 210 ml |
| Carton quantity | 3 pcs |
Features and equipment
Single-stage rotary vane pump
180 W motor
Transparent ABS oil reservoir
Built-in check valve
Oil leak protection
Design preventing oil spray-back
Oil drain screw under the reservoir
Power switch
1/4" SAE connection
CAUTION
This equipment must only be operated by qualified personnel. Read the user manual before first use.
Documents in: EN
